00156ES1B56-S WEG AC Motors
Part#:00156ES1B56-S
Manufacturer:WEG
Alt. Part#:7909522440253
Product Lifecycle:Active
Get a quick Quote!

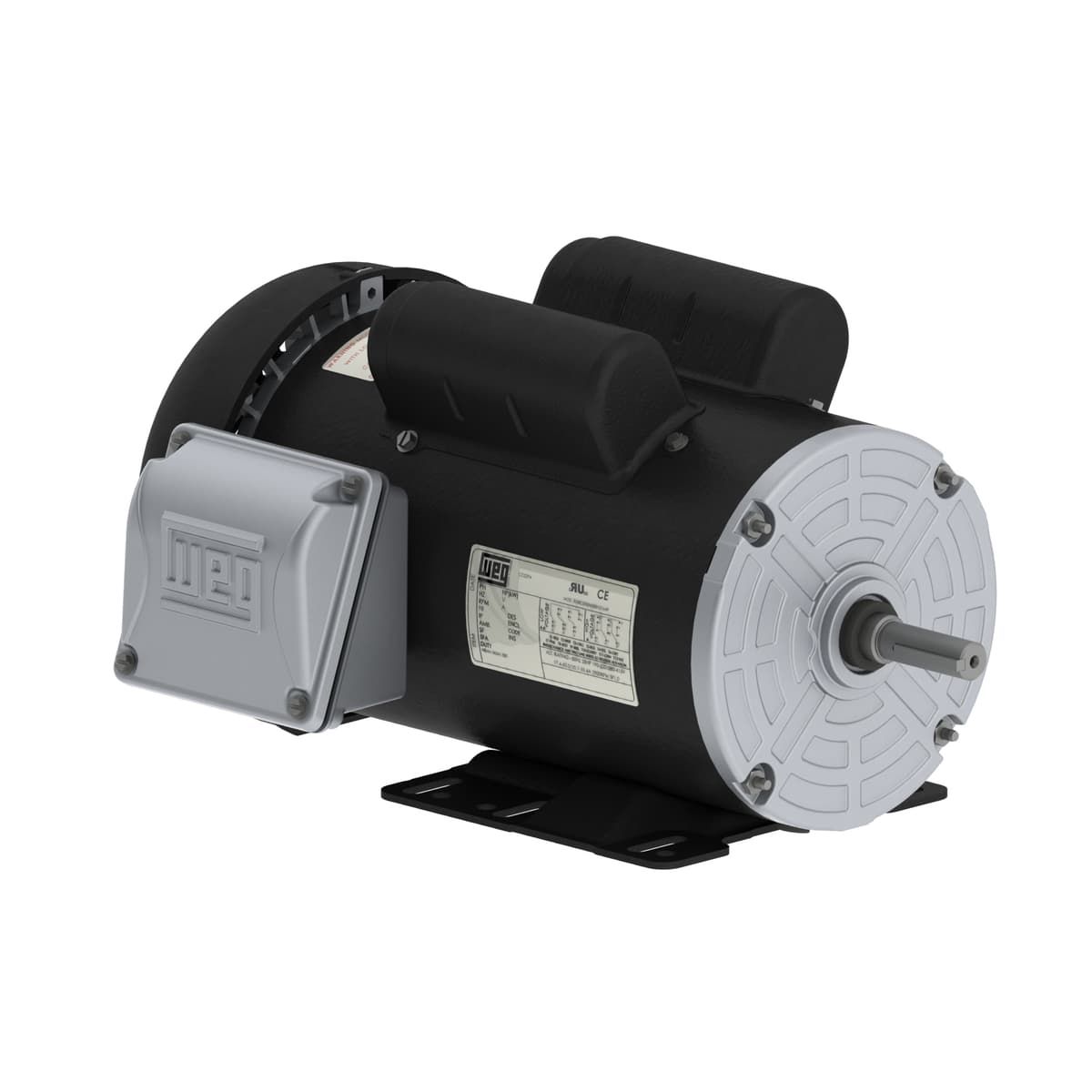

Rolled Steel 1.5 HP 2P 56 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00156ES1B56-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1.5 HP
- Rated Speed3500 rpm
- Number of Poles2 Pole
- Voltage115/208-230 V
- Flange TypeWithout
- Output 1.5 HP (1.1 kW)
- Breakdown torque 250 %
- Altitude 1000 m.a.s.l.
- Number of Poles 2
- Rated torque 2.25 ft.lb
- Locked rotor time 12s (cold) 7s (hot)
- Enclosure IC411 - TEFC
- Voltage 115/208-230 V
- Rated voltage 115/208-230 V
- Design L
- Noise level² 68.0 dB(A)
- Slip 2.78 %
- Temperature rise 80 K
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Frame 56
- No load current 4.60/1.98-2.30 A
- Service factor 1.15 (1.00 @ 208V)
- Mounting F-1
- Synchronous speed 3600 rpm
- Frequency 60 Hz
- Degree of Protection IP55
- Flange Without
- Rated current 13.2/7.30-6.60 A
- Duty Cycle Cont.(S1)
- Number of poles 2
- LRC 8.0x(Code K)
- Moment of inertia (J) 0.0589 sq.ft.lb
- Approx. weight³ 33.5 lb
- Rated speed 3500 rpm
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Output rating 1.5 HP
- L. R. Amperes 106/58.4-52.8 A
- Locked rotor torque 240 %
- Starting Method Direct On Line
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00156ES1B56-S Specs
