.5018OT3H56-S WEG AC Motors
Part#:.5018OT3H56-S
Manufacturer:WEG
Alt. Part#:7909265888770
Product Lifecycle:Active
Get a quick Quote!

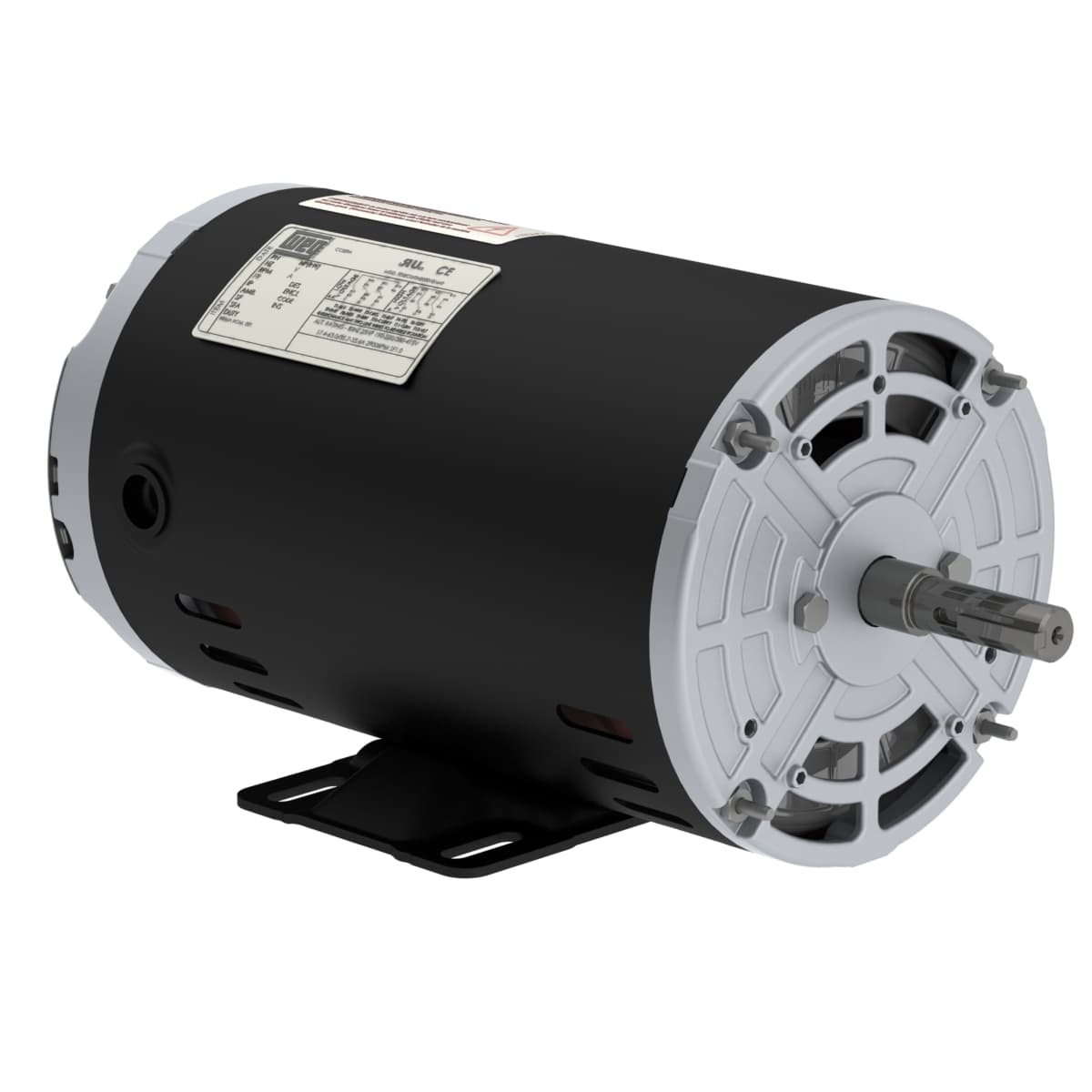

Rolled Steel Premium Efficiency 0.5 HP 4P 56 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the .5018OT3H56-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating0.5 HP
- Rated Speed1765 rpm
- Number of Poles4 Pole
- Voltage575 V
- Flange TypeWithout
- Output 0.5 HP (0.37 kW)
- Insulation Class F
- Mounting F-1
- Voltage 575 V
- Service factor 1.25
- Altitude 1000 m.a.s.l.
- Number of poles 4
- Frequency 60 Hz
- Locked rotor time 48s (cold) 27s (hot)
- Ambient temperature -20°C to +40°C
- Frame 56
- Rated torque 1.49 ft.lb
- Approx. weight³ 20.8 lb
- Flange Without
- Slip 1.94 %
- No load current 0.520 A
- Starting Method Direct On Line
- Synchronous speed 1800 rpm
- Rated voltage 575 V
- Moment of inertia (J) 0.0584 sq.ft.lb
- Noise level² 52.0 dB(A)
- LRC 7.2x(Code L)
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Output rating 0.5 HP
- L. R. Amperes 4.96 A
- Rated current 0.689 A
- Temperature rise 80 K
- Number of Poles 4
- Breakdown torque 330 %
- Rotation¹ Both (CW and CCW)
- Rated speed 1765 rpm
- Locked rotor torque 240 %
- Enclosure IC01 - ODP
- Terminal box¹ Without Terminal Box
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents .5018OT3H56-S Specs
