.5018OS1BC56CFL WEG AC Motors
Part#:.5018OS1BC56CFL
Manufacturer:WEG
Alt. Part#:7890355364727
Product Lifecycle:Active
Get a quick Quote!

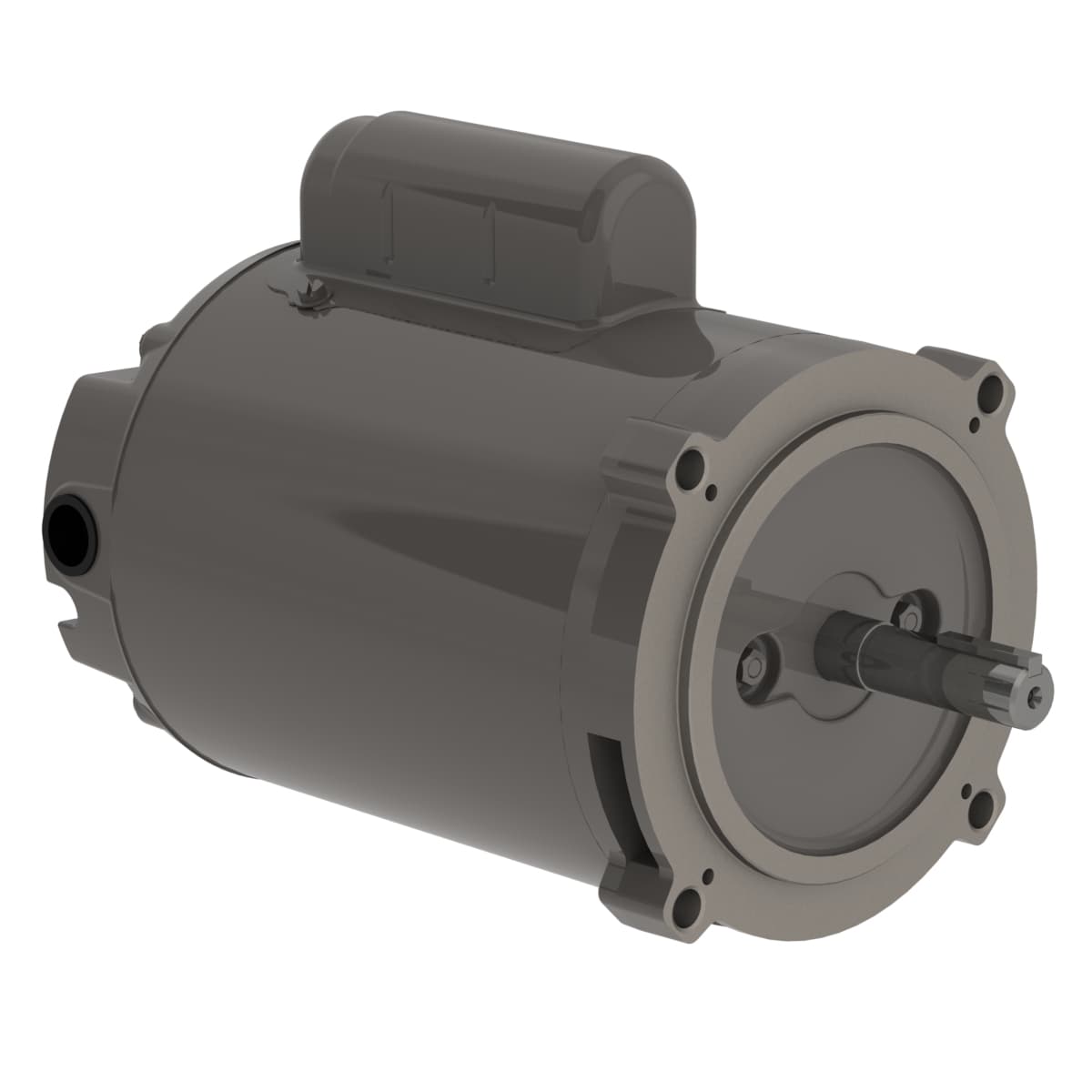

Motor 0.5 HP 4P C56C 1Ph 115/208-230 V 60 Hz IC01 - ODP - Footless
Check out the .5018OS1BC56CFL WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating0.5 HP
- Rated Speed1730 rpm
- Number of Poles4 Pole
- Voltage115/208-230 V
- Flange TypeFC 149
- Slip 3.89 %
- Temperature rise 80 K
- Approx. weight³ 21.1 lb
- L. R. Amperes 45.9/22.1-23.0 A
- Moment of inertia (J) 0.0482 sq.ft.lb
- Voltage 115/208-230 V
- Rated speed 1730 rpm
- Locked rotor torque 330 %
- Altitude 1000 m.a.s.l.
- Rated voltage 115/208-230 V
- Rated torque 1.52 ft.lb
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Rated current 8.50/4.10-4.25 A
- No load current 6.80/2.93-3.40 A
- Noise level² 50.0 dB(A)
- Output rating 0.5 HP
- Number of Poles 4
- Locked rotor time 10s (cold) 6s (hot)
- Rotation¹ Both (CW and CCW)
- Synchronous speed 1800 rpm
- Frequency 60 Hz
- Starting Method Direct On Line
- Enclosure IC01 - ODP
- LRC 5.4x(Code M)
- Insulation Class B
- Degree of Protection IP21
- Terminal box¹ Without Terminal Box
- Frame C56C
- Breakdown torque 240 %
- Ambient temperature -20°C to +40°C
- Number of poles 4
- Output 0.5 HP (0.37 kW)
- Service factor 1.25 (1.00 @ 208V)
- Mounting F-1
- Flange FC 149
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
