.5018ES1BW56CFL-S WEG AC Motors
Part#:.5018ES1BW56CFL-S
Manufacturer:WEG
Alt. Part#:7909322525273
Product Lifecycle:Active
Get a quick Quote!

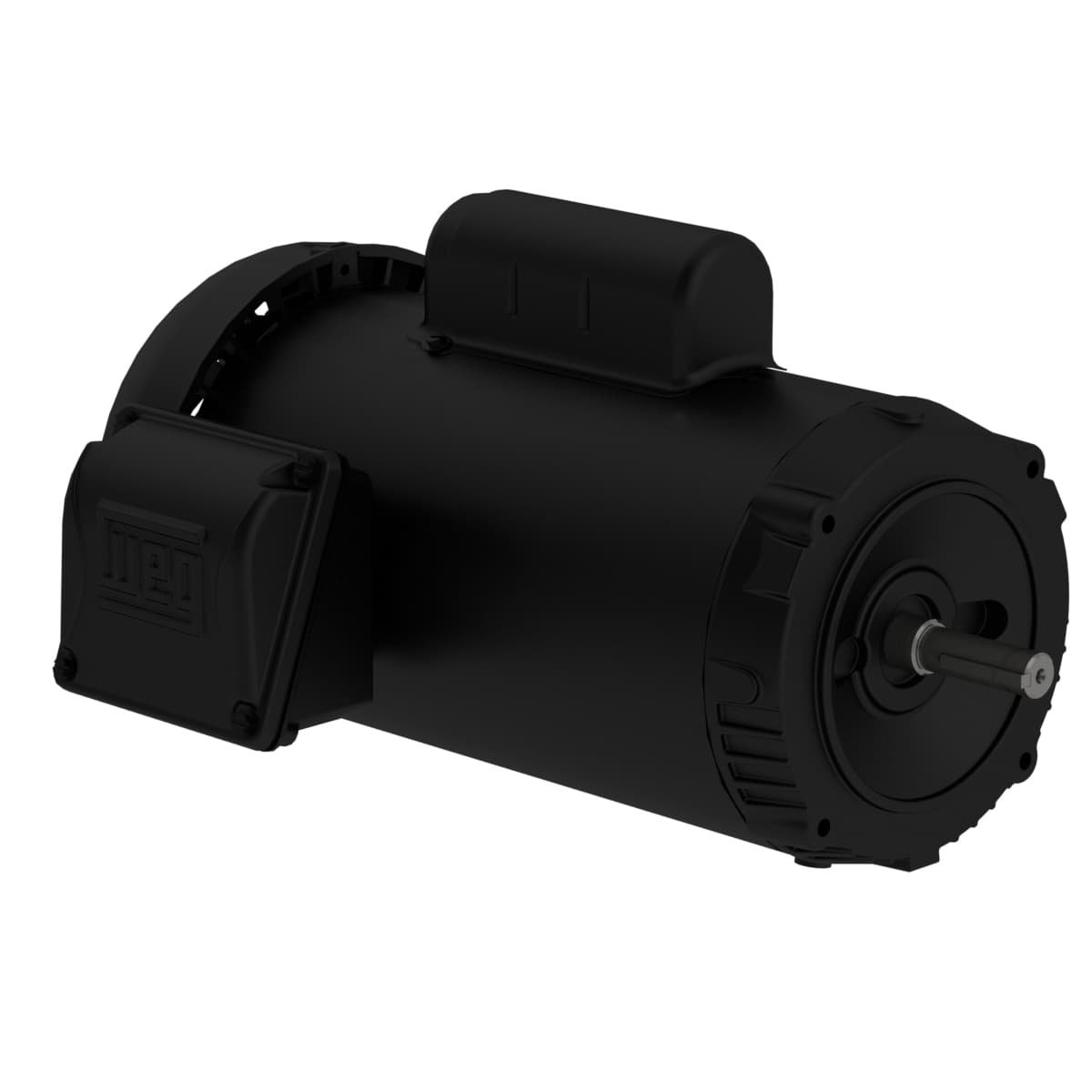

Rolled Steel 0.5 HP 4P W56C 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Footless
Check out the .5018ES1BW56CFL-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating0.5 HP
- Rated Speed1730 rpm
- Number of Poles4 Pole
- Voltage115/208-230 V
- Flange TypeC
- Rated voltage 115/208-230 V
- Design N
- Standard NEMA MG-1
- Number of poles 4
- Frequency 60 Hz
- Rated speed 1730 rpm
- Locked rotor torque 320 %
- Rated torque 1.52 ft.lb
- Starting Method Direct On Line
- Number of Poles 4
- Breakdown torque 270 %
- Service factor 1.15 (1.00 @ 208V)
- Enclosure IC411 - TEFC
- Output 0.5 HP (0.37 kW)
- Moment of inertia (J) 0.0479 sq.ft.lb
- Approx. weight³ 20.4 lb
- Terminal box¹ Left position
- Rated current 8.00/4.42-4.00 A
- No load current 6.60/2.85-3.30 A
- Altitude 1000 m.a.s.l.
- Voltage 115/208-230 V
- Frame W56C
- Locked rotor time 18s (cold) 10s (hot)
- Degree of Protection IP55
- Flange C
- Slip 3.89 %
- Insulation Class F
- Output rating 0.5 HP
- L. R. Amperes 45.6/25.2-22.8 A
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- LRC 5.7x(Code M)
- Duty Cycle Cont.(S1)
- Synchronous speed 1800 rpm
- Ambient temperature -20°C to +40°C
- Noise level² 52.0 dB(A)
- Mounting F-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents .5018ES1BW56CFL-S Specs
