.5018OT1B48-S WEG AC Motors
Part#:.5018OT1B48-S
Manufacturer:WEG
Alt. Part#:7909265073589
Product Lifecycle:Active
Get a quick Quote!

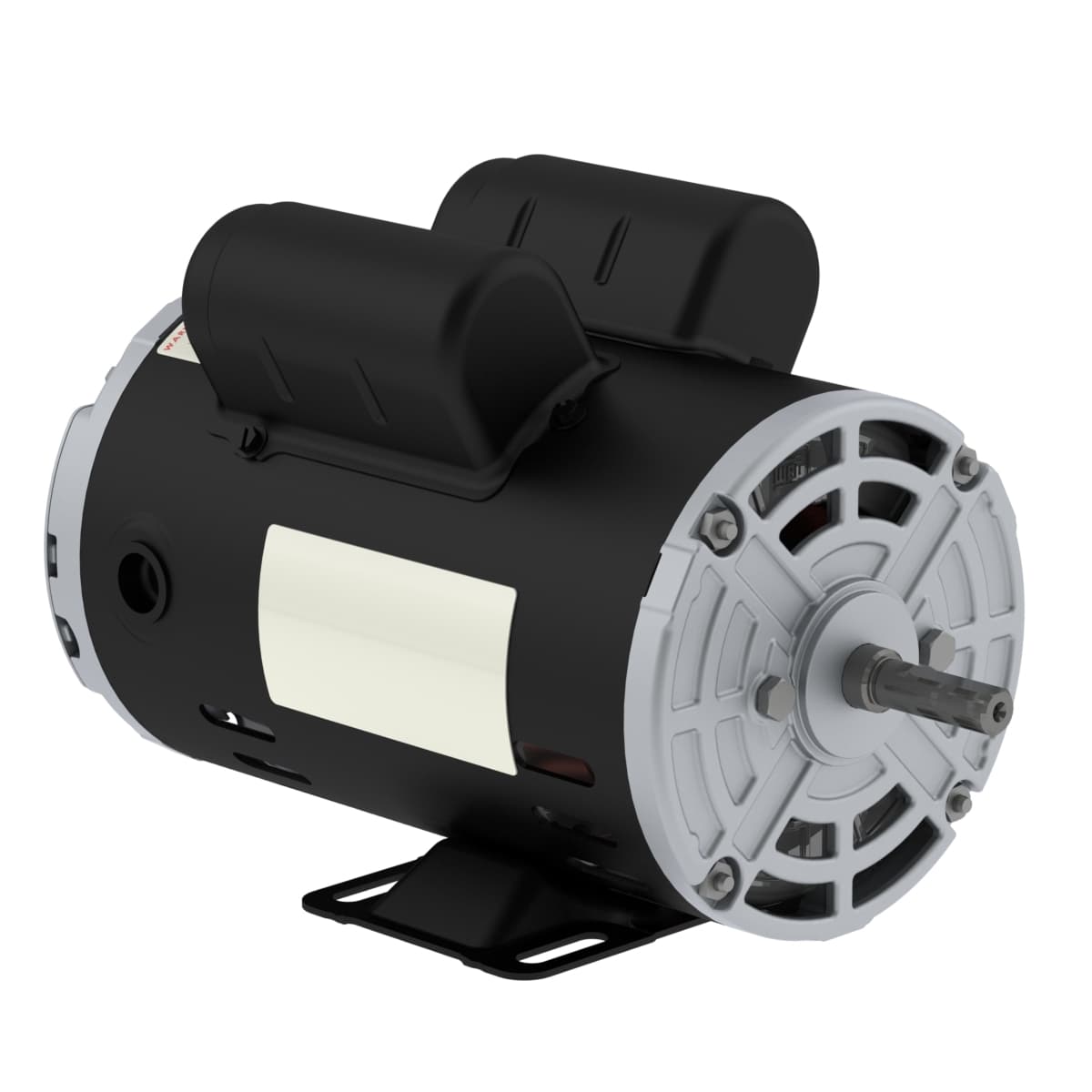

Rolled Steel 0.5 HP 4P 48 1Ph 115/208-230 V 60 Hz IC01 - ODP - Foot-mounted
Check out the .5018OT1B48-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating0.5 HP
- Rated Speed1730 rpm
- Number of Poles4 Pole
- Voltage115/208-230 V
- Flange TypeWithout
- Rated speed 1730 rpm
- Moment of inertia (J) 0.0520 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Output rating 0.5 HP
- L. R. Amperes 37.4/23.4-18.7 A
- LRC 7.7x(Code K)
- No load current 2.70/1.16-1.35 A
- Locked rotor time 27s (cold) 15s (hot)
- Duty Cycle Cont.(S1)
- Approx. weight³ 22.1 lb
- Rated current 4.86/3.04-2.43 A
- Breakdown torque 270 %
- Mounting F-1
- Flange Without
- Frequency 60 Hz
- Temperature rise 80 K
- Noise level² 50.0 dB(A)
- Voltage 115/208-230 V
- Frame 48
- Service factor 1.25 (1.00 @ 208V)
- Standard NEMA MG-1
- Slip 3.89 %
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Synchronous speed 1800 rpm
- Output 0.5 HP (0.37 kW)
- Design N
- Enclosure IC01 - ODP
- Terminal box¹ Without Terminal Box
- Number of Poles 4
- Locked rotor torque 300 %
- Altitude 1000 m.a.s.l.
- Number of poles 4
- Rated voltage 115/208-230 V
- Rated torque 1.52 ft.lb
- Starting Method Direct On Line
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
