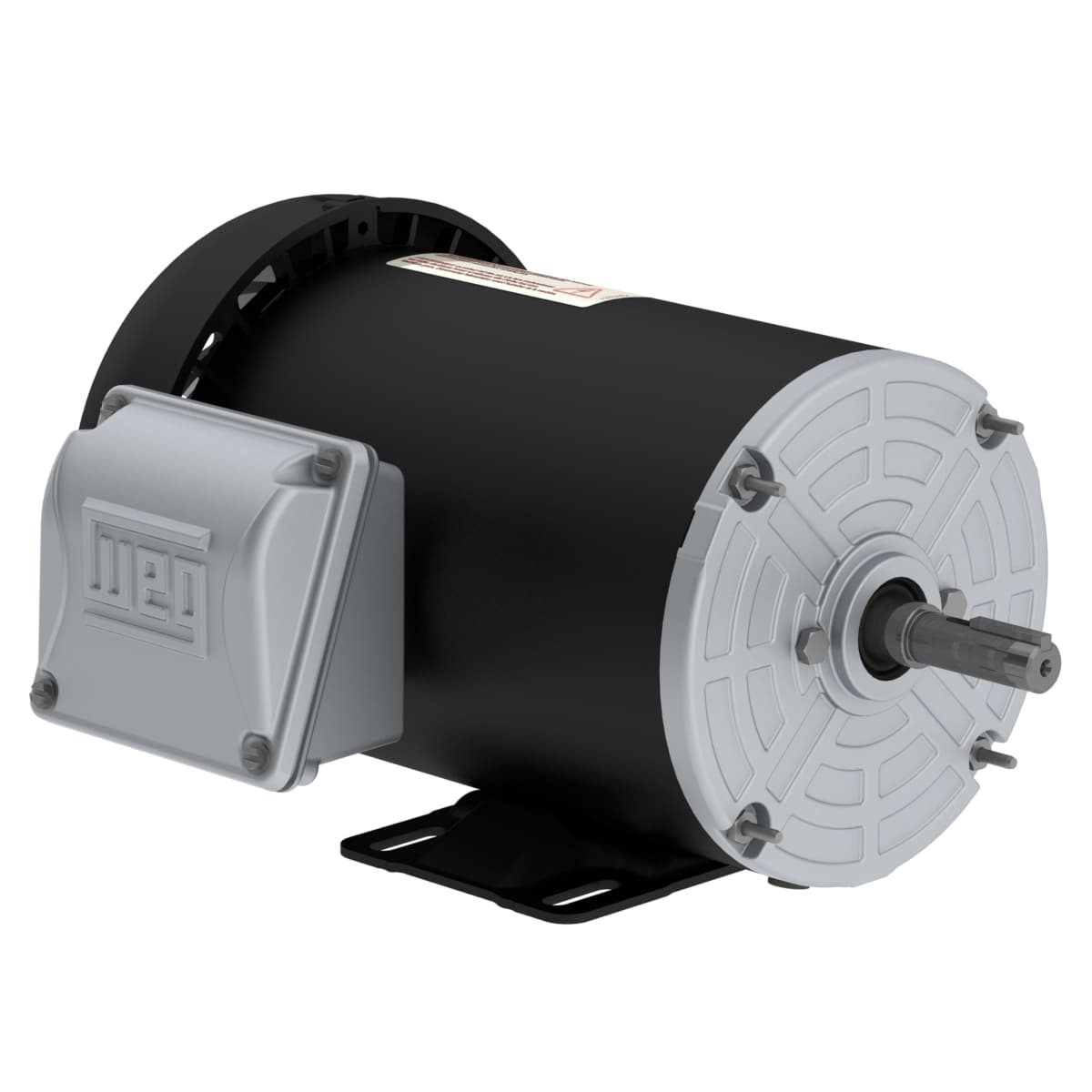

.5018ES3E56-S WEG AC Motors
Part#:.5018ES3E56-S
Manufacturer:WEG
Alt. Part#:7909522437215
Product Lifecycle:Active
In-stock parts: 7
Jun 19, 2025
Rolled Steel Standard Efficiency 0.5 HP 4P 56 3Ph 208-230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the .5018ES3E56-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating0.5 HP
- Rated Speed1760 rpm
- Number of Poles4 Pole
- Voltage208-230/460 V
- Flange TypeWithout
- Output 0.5 HP (0.37 kW)
- Moment of inertia (J) 0.0584 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Rated voltage 208-230/460 V
- Insulation Class F
- Degree of Protection IP55
- Approx. weight³ 21.9 lb
- Frequency 60 Hz
- Locked rotor time 36s (cold) 20s (hot)
- Mounting F-1
- Slip 2.22 %
- Rated torque 1.49 ft.lb
- Duty Cycle Cont.(S1)
- Number of poles 4
- Rated current 1.91-1.72/0.862 A
- No load current 1.03-1.20/0.600 A
- Enclosure IC411 - TEFC
- Flange Without
- LRC 7.0x(Code L)
- Service factor 1.15 (1.00 @ 208V)
- Noise level² 52.0 dB(A)
- Output rating 0.5 HP
- L. R. Amperes 13.3-12.1/6.03 A
- Locked rotor torque 240 %
- Starting Method Direct On Line
- Rated speed 1760 rpm
- Temperature rise 80 K
- Standard NEMA MG-1
- Terminal box¹ Left position
- Number of Poles 4
- Breakdown torque 300 %
- Altitude 1000 m.a.s.l.
- Synchronous speed 1800 rpm
- Frame 56
- Ambient temperature -20°C to +40°C
- Voltage 208-230/460//190-220/380-415 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents .5018ES3E56-S Specs
