LP4K1201BW3 Schneider Electric Industrial Automation Components
Part#:LP4K1201BW3
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!

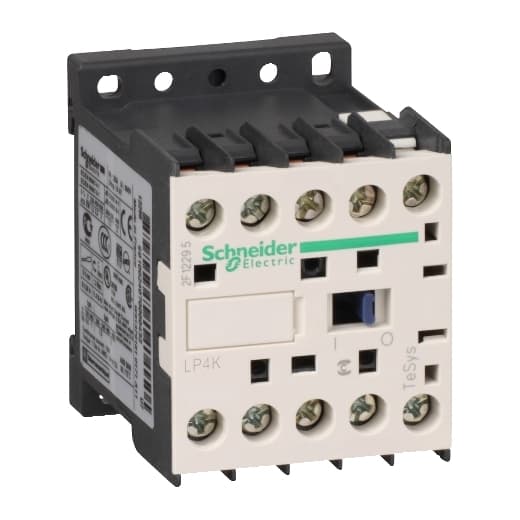

Schneider Electric LP4K1201BW3 is a magnetic contactor within the K sub-range, featuring screw connections and designed with 3 poles (3P; 3NO). It has a rated current of 20A under AC-1 conditions and 12A at 440Vac under AC-3 conditions. This contactor offers a degree of protection of IP20 and operates with a control voltage (DC) range of 16.8-31.2Vdc, with a nominal 24Vdc (0.7...1.3 x Uc). The rated operating voltage (Ue) is up to 690 V, and it comes with 0 Normally Open (NO) auxiliary contacts and 1 Normally Closed (NC) auxiliary contact. The rated active power varies with voltage: 3kW at 220-230Vac, 5.5kW at 380-415Vac and 440Vac, and 4kW at 500Vac and 660-690Vac, all under AC-3 conditions. Its mechanical durability at no load is rated for 30,000,000 operations, and it has a power consumption of 1.8 W.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the LP4K1201BW3 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Inrush Power In W 1.8 W 68 °F (20 °C))
- Range TeSys
- Minimum Switching Voltage 17 V signalling circuit
- Pole Contact Composition 3 NO
- Coil Technology Built-in bidirectional peak limiting diode suppressor
- Range Of Product TeSys K
- Overvoltage Category III
- Insulation Resistance > 10 MOhm for signalling circuit
- Auxiliary Contact Composition 1 NC
- Width 1.77 in (45 mm)
- Device Short Name LP4K
- Maximum Operating Rate 3600 cyc/h
- Product Or Component Type Contactor
- Average Impedance 3 mOhm - Ith 20 A 50 Hz power circuit
- Depth 2.24 in (57 mm)
- Auxiliary Contacts Type type instantaneous 1 NC
- Net Weight 0.52 lb(US) (0.235 kg)
- Poles Description 3P
- Hold-In Power Consumption In W 1.8 W 68 °F (20 °C)
- Minimum Switching Current 5 mA signalling circuit
- [Uimp] Rated Impulse Withstand Voltage 8 kV
- Height 2.28 in (58 mm)
- Mechanical Durability 30 Mcycles
- Control Circuit Voltage Limits Operational 0.7...1.30 Uc 122 °F (50 °C)) Drop-out 0.1...0.7 Uc 122 °F (50 °C))
- Contactor Application Resistive load Motor control
- [Ith] Conventional Free Air Thermal Current 20 A 122 °F (50 °C) power circuit 10 A 122 °F (50 °C) signalling circuit
- [Ue] Rated Operational Voltage Power circuit 690 V AC 50/60 Hz Signalling circuit <= 690 V AC 50/60 Hz
- Mounting Support Rail Plate
- Operating Time 10...20 ms coil de-energisation and NO opening 30...40 ms coil energisation and NO closing
- Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Tightening Torque 11.51 lbf.in (1.3 N.m) screw clamp terminals Philips No 2 11.51 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm
- Flame Retardance V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
- [Ie] Rated Operational Current 20 A 122 °F (50 °C)) <= 440 V AC AC-1 power circuit 12 A<= 440 V AC AC-3 power circuit 16 A 158 °F (70 °C)) 690 V AC AC-1 power circuit
- Irms Rated Making Capacity 110 A AC signalling circuit IEC 60947 144 A AC power circuit NF C 63-110 144 A AC power circuit IEC 60947
- [Ui] Rated Insulation Voltage Power circuit 600 V UL 508 Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-5-1 Signalling circuit 600 V UL 508 Power circuit 600 V CSA C22.2 No 14 Signalling circuit
- Utilisation Category AC-1 AC-4 AC-3
- Rated Breaking Capacity 110 A 440 V IEC 60947 80 A 500 V IEC 60947 70 A 660...690 V IEC 60947
- Associated Fuse Rating 25 A gG <= 440 V power circuit 25 A aM power circuit 10 A gG signalling circuit IEC 60947 10 A gG signalling circuit VDE 0660
