LP4K0610FW3 Schneider Electric Industrial Automation Components
Part#:LP4K0610FW3
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!

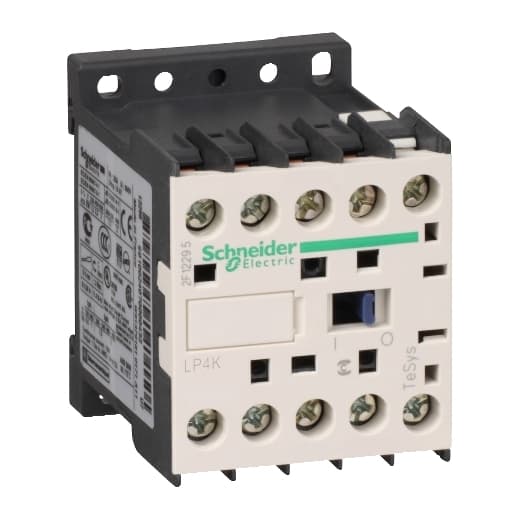

Schneider Electric LP4K0610FW3 is a magnetic contactor within the K sub-range, featuring screw connections and designed with 3 poles (3P; 3NO). It has a rated current of 6A at 440Vac in AC-3 utilization category and offers a degree of protection of IP20. The control voltage (DC) ranges from 77-143Vdc, with a nominal value of 110Vdc, corresponding to 0.7...1.3 times the control voltage (Uc). This contactor is capable of handling a rated operating voltage (Ue) up to 690 V and includes 1 Normally Open (NO) auxiliary contact. It supports rated active power loads of 1.5kW at 220-230Vac, 2.2kW at 380-415Vac, and 3kW at 440Vac, 500Vac, and 660-690Vac, all in AC-3 category. There are no Normally Closed (NC) auxiliary contacts. Its mechanical durability is rated for 30 million operations at no load, and it operates efficiently with a power consumption of 1.8 W. The rated voltage for phase-to-phase connections is 690 V.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the LP4K0610FW3 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Pole Contact Composition 3 NO
- Auxiliary Contacts Type Instantaneous 1 NO
- Minimum Switching Current 5 mA signalling circuit
- [Ie] Rated Operational Current 6 A<= 440 V AC AC-3 power circuit
- Hold-In Power Consumption In W 1.8 W 68 °F (20 °C)
- Width 1.77 in (45 mm)
- Insulation Resistance > 10 MOhm for signalling circuit
- Product Or Component Type Contactor
- Average Impedance 3 mOhm - Ith 20 A 50 Hz power circuit
- Net Weight 0.52 lb(US) (0.235 kg)
- Contactor Application Motor control
- Inrush Power In W 1.8 W 68 °F (20 °C))
- Height 2.28 in (58 mm)
- Maximum Operating Rate 3600 cyc/h
- Poles Description 3P
- Coil Technology Built-in bidirectional peak limiting diode suppressor
- Device Short Name LP4K
- [Uimp] Rated Impulse Withstand Voltage 8 kV
- Minimum Switching Voltage 17 V signalling circuit
- Range Of Product TeSys K
- Auxiliary Contact Composition 1 NO
- Depth 2.24 in (57 mm)
- Range TeSys
- Overvoltage Category III
- Mechanical Durability 30 Mcycles
- [Ue] Rated Operational Voltage Power circuit 690 V AC 50/60 Hz Signalling circuit <= 690 V AC 50/60 Hz
- Utilisation Category AC-4 AC-3
- Operating Time 10...20 ms coil de-energisation and NO opening 30...40 ms coil energisation and NO closing
- [Ith] Conventional Free Air Thermal Current 20 A 122 °F (50 °C) power circuit 10 A 122 °F (50 °C) signalling circuit
- Tightening Torque 11.51 lbf.in (1.3 N.m) screw clamp terminals Philips No 2 11.51 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm
- Mounting Support Rail Plate
- Rated Breaking Capacity 110 A 415 V IEC 60947 110 A 440 V IEC 60947 80 A 500 V IEC 60947 110 A 220...230 V IEC 60947 110 A 380...400 V IEC 60947 70 A 660...690 V IEC 60947
- [Ui] Rated Insulation Voltage Power circuit 600 V UL 508 Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-5-1 Signalling circuit 600 V UL 508 Power circuit 600 V CSA C22.2 No 14 Signalling circuit
- Control Circuit Voltage Limits Operational 0.7...1.30 Uc 122 °F (50 °C)) Drop-out 0.1...0.7 Uc 122 °F (50 °C))
- Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Irms Rated Making Capacity 110 A AC power circuit NF C 63-110 110 A AC power circuit IEC 60947 110 A AC signalling circuit IEC 60947
- Associated Fuse Rating 25 A gG <= 440 V power circuit 25 A aM power circuit 10 A gG signalling circuit IEC 60947 10 A gG signalling circuit VDE 0660
- Flame Retardance V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
