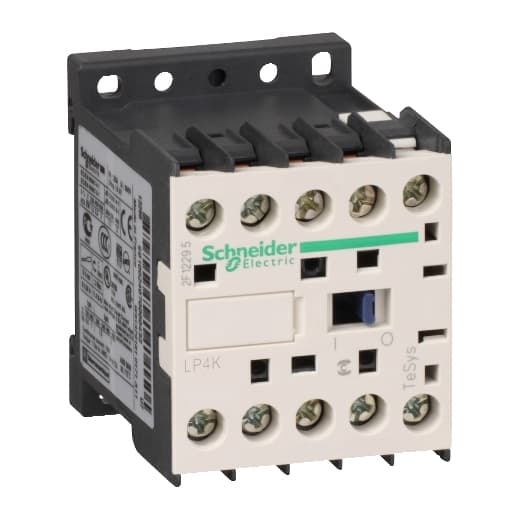

LP4K0610BW3 Schneider Electric Industrial Automation Components
Part#:LP4K0610BW3
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!
Schneider Electric LP4K0610BW3 is a magnetic contactor within the K sub-range, featuring screw connections and designed with 3 poles (3P; 3NO). It has a rated current of 6A at 440Vac in AC-3 utilization category and offers a degree of protection of IP20. The control voltage (DC) ranges from 16.8-31.2Vdc, with a nominal 24Vdc, equivalent to 0.7...1.3 times the control voltage (Uc). Its rated operating voltage (Ue) reaches up to 690 V. This contactor is equipped with 1 Normally Open (NO) auxiliary contact but does not include Normally Closed (NC) auxiliary contacts. It supports rated active power of 1.5kW at 220-230Vac, 2.2kW at 380-415Vac, and 3kW at 440Vac, 500Vac, and 660-690Vac, all in AC-3. The mechanical durability of the LP4K0610BW3 is rated at 30 million operations at no load, and it has a power consumption of 1.8 W.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the LP4K0610BW3 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Auxiliary Contact Composition 1 NO
- Pole Contact Composition 3 NO
- Hold-In Power Consumption In W 1.8 W 68 °F (20 °C)
- Range TeSys
- Auxiliary Contacts Type Instantaneous 1 NO
- Maximum Operating Rate 3600 cyc/h
- Contactor Application Motor control
- [Uimp] Rated Impulse Withstand Voltage 8 kV
- Insulation Resistance > 10 MOhm for signalling circuit
- Device Short Name LP4K
- Mechanical Durability 30 Mcycles
- Inrush Power In W 1.8 W 68 °F (20 °C))
- Width 1.77 in (45 mm)
- Product Or Component Type Contactor
- Average Impedance 3 mOhm - Ith 20 A 50 Hz power circuit
- Minimum Switching Current 5 mA signalling circuit
- [Ie] Rated Operational Current 6 A<= 440 V AC AC-3 power circuit
- Coil Technology Built-in bidirectional peak limiting diode suppressor
- Height 2.28 in (58 mm)
- Poles Description 3P
- Overvoltage Category III
- Minimum Switching Voltage 17 V signalling circuit
- Net Weight 0.52 lb(US) (0.235 kg)
- Range Of Product TeSys K
- Depth 2.24 in (57 mm)
- Control Circuit Voltage Limits Operational 0.7...1.30 Uc 122 °F (50 °C)) Drop-out 0.1...0.7 Uc 122 °F (50 °C))
- [Ue] Rated Operational Voltage Power circuit 690 V AC 50/60 Hz Signalling circuit <= 690 V AC 50/60 Hz
- [Ith] Conventional Free Air Thermal Current 20 A 122 °F (50 °C) power circuit 10 A 122 °F (50 °C) signalling circuit
- Utilisation Category AC-3 AC-4
- Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Tightening Torque 11.51 lbf.in (1.3 N.m) screw clamp terminals Philips No 2 11.51 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm
- Mounting Support Plate Rail
- Operating Time 10...20 ms coil de-energisation and NO opening 30...40 ms coil energisation and NO closing
- Flame Retardance V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
- Irms Rated Making Capacity 110 A AC power circuit NF C 63-110 110 A AC power circuit IEC 60947 110 A AC signalling circuit IEC 60947
- Associated Fuse Rating 25 A gG <= 440 V power circuit 25 A aM power circuit 10 A gG signalling circuit IEC 60947 10 A gG signalling circuit VDE 0660
- Rated Breaking Capacity 110 A 415 V IEC 60947 110 A 440 V IEC 60947 80 A 500 V IEC 60947 110 A 220...230 V IEC 60947 110 A 380...400 V IEC 60947 70 A 660...690 V IEC 60947
- [Ui] Rated Insulation Voltage Power circuit 600 V UL 508 Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-5-1 Signalling circuit 600 V UL 508 Power circuit 600 V CSA C22.2 No 14 Signalling circuit
