LP4K09004BW3 Schneider Electric Industrial Automation Components
Part#:LP4K09004BW3
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!

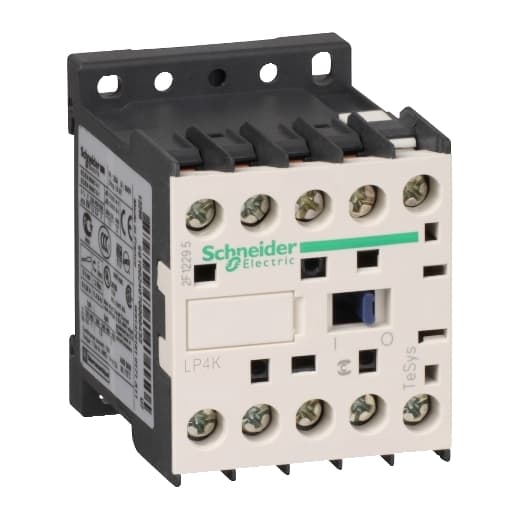

Schneider Electric LP4K09004BW3 is a magnetic contactor within the K sub-range, featuring screw connections and designed with 4 poles (4NO). It supports a rated current of 20A under AC-1 conditions and 110A (Irms AC), with a degree of protection classified as IP20. The control voltage (DC) ranges from 16.8-31.2Vdc, with a nominal value of 24Vdc (0.7...1.3 x Uc). This contactor is capable of operating at a rated voltage (Ue) of up to 690 V and has the same rated voltage (AC) for phase-to-phase connections. It does not include normally open (NO) or normally closed (NC) auxiliary contacts. The mechanical durability of this part is rated at 30,000,000 operations at no load, and it has a power consumption of 1.8 W.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the LP4K09004BW3 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- [Ue] Rated Operational Voltage Power circuit 690 V AC 50/60 Hz
- Device Short Name LP4K
- Inrush Power In W 1.8 W 68 °F (20 °C))
- Range Of Product TeSys K
- Width 1.77 in (45 mm)
- Contactor Application Resistive load
- [Ith] Conventional Free Air Thermal Current 20 A 122 °F (50 °C) power circuit
- Net Weight 0.52 lb(US) (0.235 kg)
- Poles Description 4P
- Height 2.28 in (58 mm)
- Overvoltage Category III
- Average Impedance 3 mOhm - Ith 20 A 50 Hz power circuit
- Maximum Operating Rate 3600 cyc/h
- Mechanical Durability 30 Mcycles
- Range TeSys
- Coil Technology Built-in bidirectional peak limiting diode suppressor
- Utilisation Category AC-1
- Depth 2.24 in (57 mm)
- [Uimp] Rated Impulse Withstand Voltage 8 kV
- Hold-In Power Consumption In W 1.8 W 68 °F (20 °C)
- Pole Contact Composition 4 NO
- Product Or Component Type Contactor
- Associated Fuse Rating 25 A gG <= 440 V power circuit 25 A aM power circuit
- Control Circuit Voltage Limits Operational 0.7...1.30 Uc 122 °F (50 °C)) Drop-out 0.1...0.7 Uc 122 °F (50 °C))
- Mounting Support Plate Rail
- Irms Rated Making Capacity 110 A AC power circuit NF C 63-110 110 A AC power circuit IEC 60947
- [Ie] Rated Operational Current 20 A 122 °F (50 °C)) <= 440 V AC AC-1 power circuit 16 A 158 °F (70 °C)) 690 V AC AC-1 power circuit
- Operating Time 30...40 ms coil energisation and NO closing 10 ms coil de-energisation and NO opening
- Tightening Torque 11.51 lbf.in (1.3 N.m) screw clamp terminals Philips No 2 11.51 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm
- Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- [Ui] Rated Insulation Voltage Power circuit 600 V UL 508 Power circuit 690 V IEC 60947-4-1 Power circuit 600 V CSA C22.2 No 14
- Flame Retardance V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
- Rated Breaking Capacity 110 A 415 V IEC 60947 110 A 440 V IEC 60947 80 A 500 V IEC 60947 110 A 220...230 V IEC 60947 110 A 380...400 V IEC 60947 70 A 660...690 V IEC 60947
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents LP4K09004BW3 Specs
