LP1K12004JD Schneider Electric Industrial Automation Components
Part#:LP1K12004JD
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!

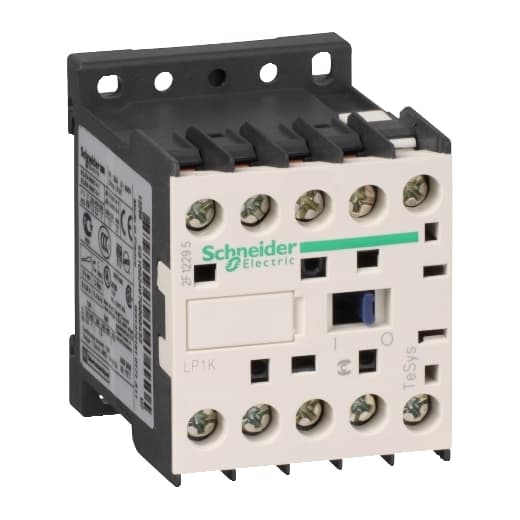

Schneider Electric LP1K12004JD is a magnetic contactor within the K sub-range, featuring screw connections and designed with 4 poles (4NO). It has a rated current of 20A for AC-1 and 144A for Irms AC. The contactor's net width is 45 mm and it offers a degree of protection of IP20. The control voltage (DC) specifications are 9.6-13.8Vdc, with a nominal 12Vdc, corresponding to 0.8...1.15 times the control voltage (Uc). It operates at a rated operating voltage (Ue) of 690 V and does not include normally open (NO) or normally closed (NC) auxiliary contacts. The mechanical durability of this contactor, when operating under no load conditions, is rated at 10,000,000 operations, and it supports a rated voltage (AC) for phase-to-phase connections of 690 V.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the LP1K12004JD Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Utilisation Category AC-1
- Poles Description 4P
- Width 1.77 in (45 mm)
- Average Impedance 3 mOhm - Ith 20 A 50 Hz power circuit
- Range Of Product TeSys K
- [Ith] Conventional Free Air Thermal Current 20 A 122 °F (50 °C) power circuit
- Height 2.28 in (58 mm)
- Contactor Application Resistive load
- [Uimp] Rated Impulse Withstand Voltage 8 kV
- Hold-In Power Consumption In W 3 W 68 °F (20 °C)
- Depth 2.24 in (57 mm)
- Pole Contact Composition 4 NO
- Net Weight 0.50 lb(US) (0.225 kg)
- Overvoltage Category III
- Inrush Power In W 3 W 68 °F (20 °C))
- Maximum Operating Rate 3600 cyc/h
- Device Short Name LP1K
- Range TeSys
- Product Or Component Type Contactor
- [Ue] Rated Operational Voltage Power circuit 690 V AC 50/60 Hz
- Mechanical Durability 10 Mcycles
- [Ie] Rated Operational Current 20 A 122 °F (50 °C)) <= 440 V AC AC-1 power circuit 16 A 158 °F (70 °C)) 690 V AC AC-1 power circuit
- Tightening Torque 11.51 lbf.in (1.3 N.m) screw clamp terminals Philips No 2 11.51 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm
- Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Mounting Support Rail Plate
- Control Circuit Voltage Limits Operational: 0.8...1.15 Uc (at <50 °C) Drop-out 0.1...0.75 Uc 122 °F (50 °C))
- Associated Fuse Rating 25 A gG <= 440 V power circuit 25 A aM power circuit
- Irms Rated Making Capacity 144 A AC power circuit NF C 63-110 144 A AC power circuit IEC 60947
- Operating Time 30...40 ms coil energisation and NO closing 10 ms coil de-energisation and NO opening
- [Ui] Rated Insulation Voltage Power circuit 600 V UL 508 Power circuit 690 V IEC 60947-4-1 Power circuit 600 V CSA C22.2 No 14
- Rated Breaking Capacity 110 A 440 V IEC 60947 80 A 500 V IEC 60947 70 A 660...690 V IEC 60947
- Flame Retardance V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
