LP1K09008BD Schneider Electric Industrial Automation Components
Part#:LP1K09008BD
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!

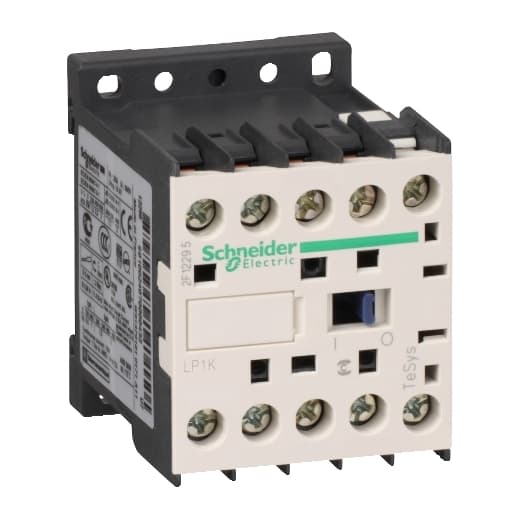

Schneider Electric LP1K09008BD is a magnetic contactor within the K sub-range, featuring screw connections and a 4-pole (4P; 2NO+2NC) configuration. It has a rated current of 20A (AC-1) and 110A (Irms AC), with a net width of 45 mm. This contactor offers a degree of protection of IP20 and operates with a control voltage (DC) range of 19.2-27.6Vdc (24Vdc nominal; 0.8...1.15 x Uc). The rated operating voltage (Ue) is 690 V, and it is designed without normally open (NO) or normally closed (NC) auxiliary contacts. Its mechanical durability is rated at 10,000,000 operations at no load, and it supports a rated voltage (AC) phase-to-phase of 690 V.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the LP1K09008BD Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Product Or Component Type Contactor
- [Ith] Conventional Free Air Thermal Current 20 A 122 °F (50 °C) power circuit
- Hold-In Power Consumption In W 3 W 68 °F (20 °C)
- Contactor Application Resistive load
- [Ue] Rated Operational Voltage Power circuit 690 V AC 50/60 Hz
- Poles Description 4P
- Height 2.28 in (58 mm)
- Net Weight 0.50 lb(US) (0.225 kg)
- Depth 2.24 in (57 mm)
- Utilisation Category AC-1
- Pole Contact Composition 2 NO + 2 NC
- Average Impedance 3 mOhm - Ith 20 A 50 Hz power circuit
- Width 1.77 in (45 mm)
- Device Short Name LP1K
- Overvoltage Category III
- Range Of Product TeSys K
- Inrush Power In W 3 W 68 °F (20 °C))
- Maximum Operating Rate 3600 cyc/h
- Range TeSys
- [Uimp] Rated Impulse Withstand Voltage 8 kV
- Mechanical Durability 10 Mcycles
- Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- [Ie] Rated Operational Current 20 A 122 °F (50 °C)) <= 440 V AC AC-1 power circuit 16 A 158 °F (70 °C)) 690 V AC AC-1 power circuit
- Control Circuit Voltage Limits Operational: 0.8...1.15 Uc (at <50 °C) Drop-out 0.1...0.75 Uc 122 °F (50 °C))
- Irms Rated Making Capacity 110 A AC power circuit NF C 63-110 110 A AC power circuit IEC 60947
- Tightening Torque 11.51 lbf.in (1.3 N.m) screw clamp terminals Philips No 2 11.51 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm
- Associated Fuse Rating 25 A gG <= 440 V power circuit 25 A aM power circuit
- Mounting Support Rail Plate
- Rated Breaking Capacity 110 A 415 V IEC 60947 110 A 440 V IEC 60947 80 A 500 V IEC 60947 110 A 220...230 V IEC 60947 110 A 380...400 V IEC 60947 70 A 660...690 V IEC 60947
- Flame Retardance V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
- [Ui] Rated Insulation Voltage Power circuit 600 V UL 508 Power circuit 690 V IEC 60947-4-1 Power circuit 600 V CSA C22.2 No 14
- Operating Time 30...40 ms coil energisation and NO closing 10 ms coil de-energisation and NO opening 25...35 ms coil energisation and NC opening 15 ms coil de-energisation and NC closing
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents LP1K09008BD Specs
1-year warranty
