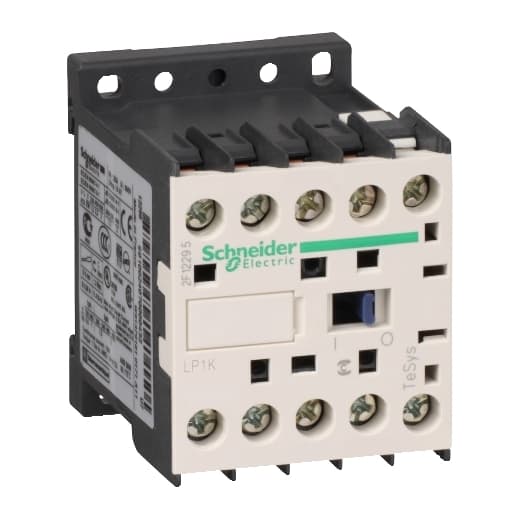

LP1K0910BD3 Schneider Electric Industrial Automation Components
Part#:LP1K0910BD3
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!
Schneider Electric - LP1K0910BD3
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the LP1K0910BD3 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Device Short Name LP1K
- Auxiliary Contact Composition 1 NO
- Hold-In Power Consumption In W 3 W 68 °F (20 °C)
- Net Weight 0.50 lb(US) (0.225 kg)
- Range Of Product TeSys K
- Average Impedance 3 mOhm - Ith 20 A 50 Hz power circuit
- Pole Contact Composition 3 NO
- Overvoltage Category III
- Inrush Power In W 3 W 68 °F (20 °C))
- Width 1.77 in (45 mm)
- [Uimp] Rated Impulse Withstand Voltage 8 kV
- Range TeSys
- Height 2.28 in (58 mm)
- Product Or Component Type Contactor
- Auxiliary Contacts Type Instantaneous 1 NO
- Poles Description 3P
- Maximum Operating Rate 3600 cyc/h
- Depth 2.24 in (57 mm)
- Minimum Switching Voltage 17 V signalling circuit
- Minimum Switching Current 5 mA signalling circuit
- Coil Technology Built-in bidirectional peak limiting diode suppressor
- Mechanical Durability 10 Mcycles
- Insulation Resistance > 10 MOhm for signalling circuit
- Control Circuit Voltage Limits Operational: 0.8...1.15 Uc (at <50 °C) Drop-out 0.1...0.75 Uc 122 °F (50 °C))
- Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Contactor Application Resistive load Motor control
- Operating Time 30...40 ms coil energisation and NO closing 10 ms coil de-energisation and NO opening
- [Ith] Conventional Free Air Thermal Current 20 A 122 °F (50 °C) power circuit 10 A 122 °F (50 °C) signalling circuit
- Tightening Torque 11.51 lbf.in (1.3 N.m) screw clamp terminals Philips No 2 11.51 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm
- Mounting Support Plate Rail
- [Ue] Rated Operational Voltage Power circuit 690 V AC 50/60 Hz Signalling circuit <= 690 V AC 50/60 Hz
- Flame Retardance V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
- Utilisation Category AC-3 AC-1 AC-4
- [Ie] Rated Operational Current 20 A 122 °F (50 °C)) <= 440 V AC AC-1 power circuit 9 A<= 440 V AC AC-3 power circuit 16 A 158 °F (70 °C)) 690 V AC AC-1 power circuit
- Irms Rated Making Capacity 110 A AC power circuit NF C 63-110 110 A AC power circuit IEC 60947 110 A AC signalling circuit IEC 60947
- Associated Fuse Rating 25 A gG <= 440 V power circuit 25 A aM power circuit 10 A gG signalling circuit IEC 60947 10 A gG signalling circuit VDE 0660
- Rated Breaking Capacity 110 A 415 V IEC 60947 110 A 440 V IEC 60947 80 A 500 V IEC 60947 110 A 220...230 V IEC 60947 110 A 380...400 V IEC 60947 70 A 660...690 V IEC 60947
- [Ui] Rated Insulation Voltage Power circuit 600 V UL 508 Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-5-1 Signalling circuit 600 V UL 508 Power circuit 600 V CSA C22.2 No 14 Signalling circuit
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents LP1K0910BD3 Specs
