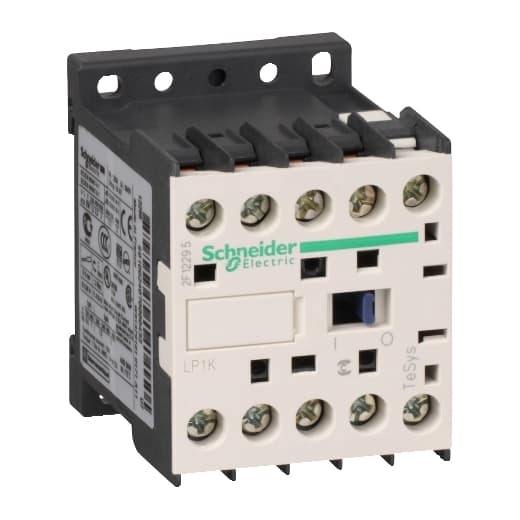

LP1K0610BD3 Schneider Electric Industrial Automation Components
Part#:LP1K0610BD3
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!
Schneider Electric - LP1K0610BD3
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the LP1K0610BD3 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Contactor Application Motor control
- Range TeSys
- Maximum Operating Rate 3600 cyc/h
- Depth 2.24 in (57 mm)
- Range Of Product TeSys K
- Auxiliary Contacts Type Instantaneous 1 NO
- Inrush Power In W 3 W 68 °F (20 °C))
- Poles Description 3P
- Mechanical Durability 10 Mcycles
- Net Weight 0.50 lb(US) (0.225 kg)
- Device Short Name LP1K
- Average Impedance 3 mOhm - Ith 20 A 50 Hz power circuit
- Coil Technology Built-in bidirectional peak limiting diode suppressor
- Minimum Switching Current 5 mA signalling circuit
- Auxiliary Contact Composition 1 NO
- Hold-In Power Consumption In W 3 W 68 °F (20 °C)
- Product Or Component Type Contactor
- Overvoltage Category III
- Insulation Resistance > 10 MOhm for signalling circuit
- [Ie] Rated Operational Current 6 A<= 440 V AC AC-3 power circuit
- Pole Contact Composition 3 NO
- [Uimp] Rated Impulse Withstand Voltage 8 kV
- Minimum Switching Voltage 17 V signalling circuit
- Operating Time 30...40 ms coil energisation and NO closing 10 ms coil de-energisation and NO opening
- Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Tightening Torque 11.51 lbf.in (1.3 N.m) screw clamp terminals Philips No 2 11.51 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm
- Control Circuit Voltage Limits Operational: 0.8...1.15 Uc (at <50 °C) Drop-out 0.1...0.75 Uc 122 °F (50 °C))
- Utilisation Category AC-3 AC-4
- [Ue] Rated Operational Voltage Power circuit 690 V AC 50/60 Hz Signalling circuit <= 690 V AC 50/60 Hz
- Mounting Support Plate Rail
- [Ith] Conventional Free Air Thermal Current 20 A 122 °F (50 °C) power circuit 10 A 122 °F (50 °C) signalling circuit
- Irms Rated Making Capacity 110 A AC power circuit NF C 63-110 110 A AC power circuit IEC 60947 110 A AC signalling circuit IEC 60947
- Flame Retardance V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
- Associated Fuse Rating 25 A gG <= 440 V power circuit 25 A aM power circuit 10 A gG signalling circuit IEC 60947 10 A gG signalling circuit VDE 0660
- Rated Breaking Capacity 110 A 415 V IEC 60947 110 A 440 V IEC 60947 80 A 500 V IEC 60947 110 A 220...230 V IEC 60947 110 A 380...400 V IEC 60947 70 A 660...690 V IEC 60947
- [Ui] Rated Insulation Voltage Power circuit 600 V UL 508 Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-5-1 Signalling circuit 600 V UL 508 Power circuit 600 V CSA C22.2 No 14 Signalling circuit
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
