LP1K0901BD Schneider Electric Industrial Automation Components
Part#:LP1K0901BD
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!

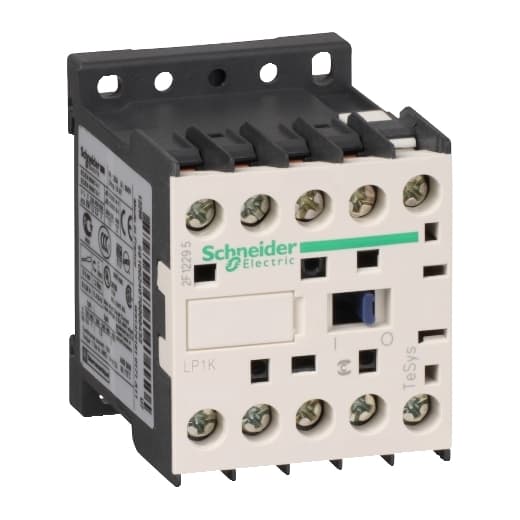

Schneider Electric LP1K0901BD is a magnetic contactor from the K sub-range, designed with screw connections and three poles (3P; 3NO). It has a rated current of 20A for AC-1 and 9A for 440Vac in AC-3 conditions. The contactor's net width is 45 mm, and it offers a degree of protection rated at IP20. The control voltage (DC) ranges from 19.2 to 27.6Vdc, with a nominal 24Vdc, equivalent to 0.8 to 1.15 times the control voltage (Uc). Its rated operating voltage (Ue) reaches up to 690 V. This model includes 0 normally open (NO) auxiliary contacts and 1 normally closed (NC) auxiliary contact. The rated active power varies with voltage, providing 2.2kW at 220-230Vac, and 4kW at 380-415Vac, 440Vac, 500Vac, and 660-690Vac, all in AC-3 conditions. It boasts a mechanical durability of 10 million operations at no load and a rated voltage (AC) phase-to-phase of 690 V.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the LP1K0901BD Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Height 2.28 in (58 mm)
- Auxiliary Contacts Type type instantaneous 1 NC
- Range TeSys
- [Uimp] Rated Impulse Withstand Voltage 8 kV
- Hold-In Power Consumption In W 3 W 68 °F (20 °C)
- Depth 2.24 in (57 mm)
- Poles Description 3P
- Overvoltage Category III
- Maximum Operating Rate 3600 cyc/h
- Width 1.77 in (45 mm)
- Inrush Power In W 3 W 68 °F (20 °C))
- Auxiliary Contact Composition 1 NC
- Average Impedance 3 mOhm - Ith 20 A 50 Hz power circuit
- Net Weight 0.50 lb(US) (0.225 kg)
- Pole Contact Composition 3 NO
- Product Or Component Type Contactor
- Range Of Product TeSys K
- Mechanical Durability 10 Mcycles
- Insulation Resistance > 10 MOhm for signalling circuit
- Device Short Name LP1K
- Minimum Switching Current 5 mA signalling circuit
- Minimum Switching Voltage 17 V signalling circuit
- Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Contactor Application Resistive load Motor control
- Mounting Support Rail Plate
- Operating Time 30...40 ms coil energisation and NO closing 10 ms coil de-energisation and NO opening
- [Ue] Rated Operational Voltage Power circuit 690 V AC 50/60 Hz Signalling circuit <= 690 V AC 50/60 Hz
- Tightening Torque 11.51 lbf.in (1.3 N.m) screw clamp terminals Philips No 2 11.51 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm
- Control Circuit Voltage Limits Operational: 0.8...1.15 Uc (at <50 °C) Drop-out 0.1...0.75 Uc 122 °F (50 °C))
- [Ith] Conventional Free Air Thermal Current 20 A 122 °F (50 °C) power circuit 10 A 122 °F (50 °C) signalling circuit
- [Ie] Rated Operational Current 20 A 122 °F (50 °C)) <= 440 V AC AC-1 power circuit 9 A<= 440 V AC AC-3 power circuit 16 A 158 °F (70 °C)) 690 V AC AC-1 power circuit
- Utilisation Category AC-1 AC-4 AC-3
- Flame Retardance V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
- Irms Rated Making Capacity 110 A AC power circuit NF C 63-110 110 A AC power circuit IEC 60947 110 A AC signalling circuit IEC 60947
- Associated Fuse Rating 25 A gG <= 440 V power circuit 25 A aM power circuit 10 A gG signalling circuit IEC 60947 10 A gG signalling circuit VDE 0660
- Rated Breaking Capacity 110 A 415 V IEC 60947 110 A 440 V IEC 60947 80 A 500 V IEC 60947 110 A 220...230 V IEC 60947 110 A 380...400 V IEC 60947 70 A 660...690 V IEC 60947
- [Ui] Rated Insulation Voltage Power circuit 600 V UL 508 Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-5-1 Signalling circuit 600 V UL 508 Power circuit 600 V CSA C22.2 No 14 Signalling circuit
