WLS15XGR0220DSC2 Banner Pick-to-Light Sensors

Banner WLS15XGR0220DSC2 WLS15 Dual Color Light Strip; Length: 220 mm; Voltage: 12 or 24 V dc; Environmental Rating: IP66,67; Colors: Green Red; 2 m (6.5 ft) Integral Cable
Banner

Part#:WLS15XGR0220DSC2

Manufacturer:Banner

Alt. Part#:806934

Product Lifecycle:Active

Get a quick Quote!

WLS15 Dual Color Light Strip; Length: 220 mm; Voltage: 12 or 24 V dc; Environmental Rating: IP66,67; Colors: Green Red; 2 m (6.5 ft) Integral Cable

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS15XGR0220DSC2 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight136.0776 g
  • Country Of OriginMX
  • Mounting Thread
    No Thread
  • Color Option 1
    Green
  • Power Source
    DC
  • Physical Dimensions (LxWxH or DxH mm)
    220.0 x 30.6 x 15.5
  • Supply Voltage
    12/24 V dc
  • Wireless
    No
  • Cable Length (m)
    2
  • Lumens Color 2
    55
  • Max Op. Temperature (°C)
    60
  • Feature: Quick Disconnect
    No
  • Product Size (mm)
    15
  • Illumination
    Yes
  • Number of Input Pins/Conductors
    4
  • Feature: Hazardous Area
    No
  • Power
    DC
  • Number of Colors / Segments
    2
  • Lumens Color 1
    105
  • Storage Temp (°C)
    -40 to 70
  • IO Link
    No
  • Indication
    Yes
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Illuminated Length (LxWxH mm)
    146.4
  • Feature: Chemical Resistant
    No
  • Primary Housing Material
    Polycarbonate
  • Connection
    Cable
  • Max Current Color (mA)
    240
  • Feature: Audible
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Color Technology
    Standard LED
  • Housing Style
    Linear Strip
  • Environmental Rating
    IP66; IP67
  • Secondary Material
    Polyamide
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Color Option 2
    Red
  • Min Op. Temperature (°C)
    -40
  • Multi-Color Device
    Single Color On
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Primary Window Material
    Polycarbonate Diffused
  • Modbus RTU
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

WLS15XGR0220DSC2 Description

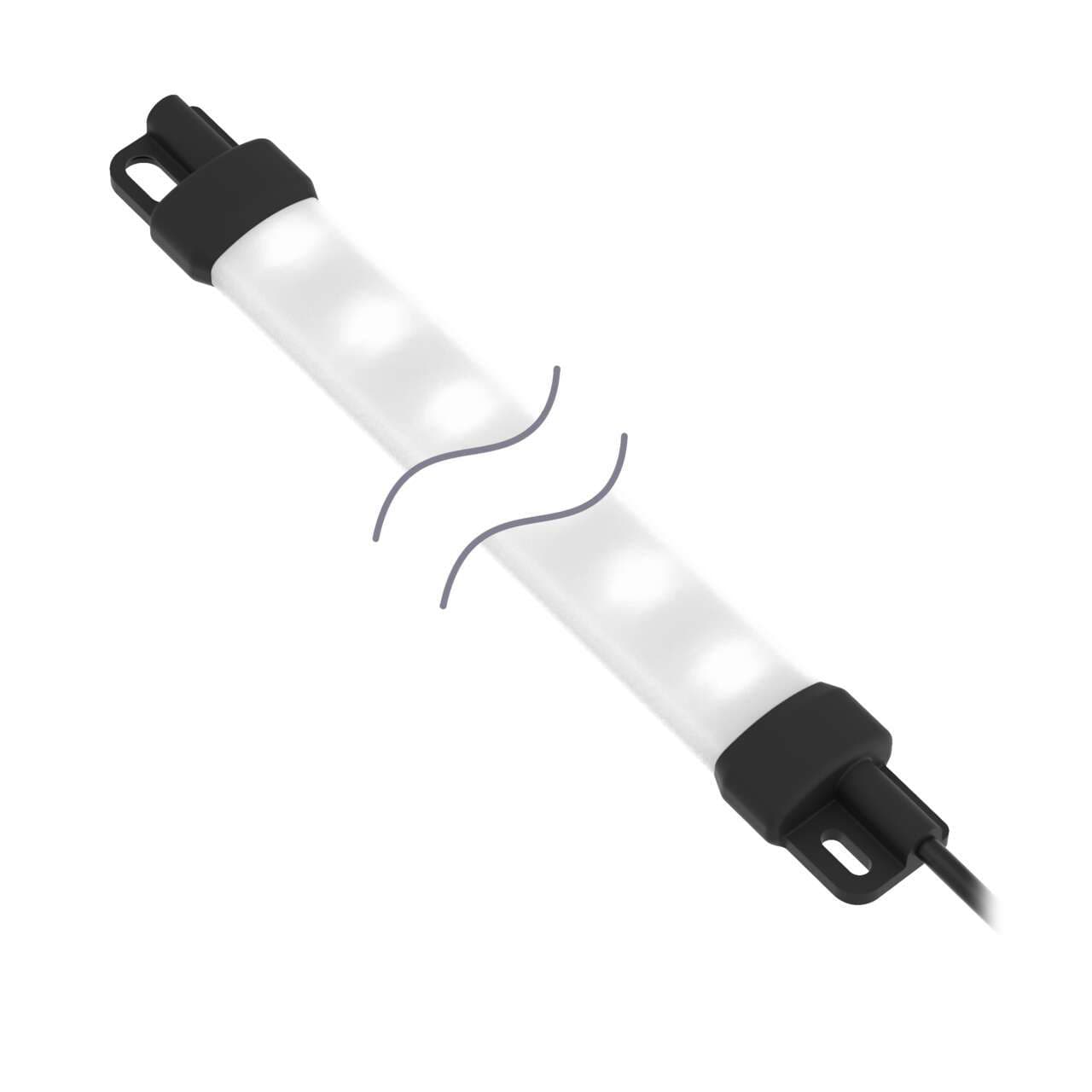

Banner Engineering WLS15XGR0220DSC2 is a task light designed as a sealed industrial low power LED light strip/bar. It features a diffused window with a 2-color green/red color pattern LED illumination. This product operates on a supply voltage of either 12Vdc or 24Vdc and has dimensions of L220mm x W15mm. The material used for both the diffused window and the base is Polycarbonate (PC). It comes pre-wired with a 2m / 6.5ft 2-wire cable terminated with bare end flying leads, forming a linear light strip shape. The degree of protection offered is IP66 and IP67, making it suitable for operation in ambient air temperatures ranging from -40°C to +60°C. It includes 2 x digital inputs (12Vdc / 24Vdc) for color control and has a current consumption of 240mA. The luminous flux provided by this task light is 105 lm (lumens).

Related documents WLS15XGR0220DSC2 Specs

WLS15XGR0220DSC2 197492.pdf
