WLS15PXRGB0500DSQP Banner Pick-to-Light Sensors
Part#:WLS15PXRGB0500DSQP
Manufacturer:Banner
Alt. Part#:809934
Product Lifecycle:Active
Get a quick Quote!
WLS15 Pro Light Strip with Pro Editor; Diffuse Window; Length: 500 mm; Voltage: 12 -30 V dc; Environmental Rating: IP66; IP67; Color: RGB; Non-Cascadable; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS15PXRGB0500DSQP Banner price in the box on the right side or send a quick quote.
Product Details
- Weight190.50864 g
- Country Of OriginMX
- PFM Input Yes
- Dimming Option Programmable
- Physical Dimensions (LxWxH or DxH mm) 500.0 x 30.6 x 15.5
- Feature: Chemical Resistant No
- Power DC
- Quick Disconnect Type M12 (Euro)
- I/O Block Compatible Yes
- Modbus RTU No
- Mounting Thread No Thread
- Product Size (mm) 15
- Housing Style Linear Strip
- Animation Option 1 See Configuration File
- Primary Window Material Polycarbonate Diffused
- Min Op. Temperature (°C) -40
- Number of Colors / Segments 19
- Max Current Color (mA) 375
- Storage Temp (°C) -40 to 70
- Primary Housing Material Polycarbonate
- Environmental Rating IP66; IP67
- Wire Selectable Function Programmable
- Color Technology RGB Configurable
- Color Input Control Multiple (One or more wires/color, enables more colors than input wires)
- Color Option 1 RGB
- Power Source DC
- Connection Pigtail QD
- Illumination Yes
- Number of Input Pins/Conductors 4
- Wireless No
- Number of Tower Light Segments Programmable
- Supply Voltage 12-30 V dc
- IO Link No
- Feature: Hazardous Area No
- Max Op. Temperature (°C) 50
- Feature: Audible No
- Pro-Editor Compatible (Discrete) Yes
- Illuminated Length (LxWxH mm) 426.4
- Multi-Color Device Simultaneous Colors On
- Secondary Material Polyamide
- USB No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS15PXRGB0500DSQP Description

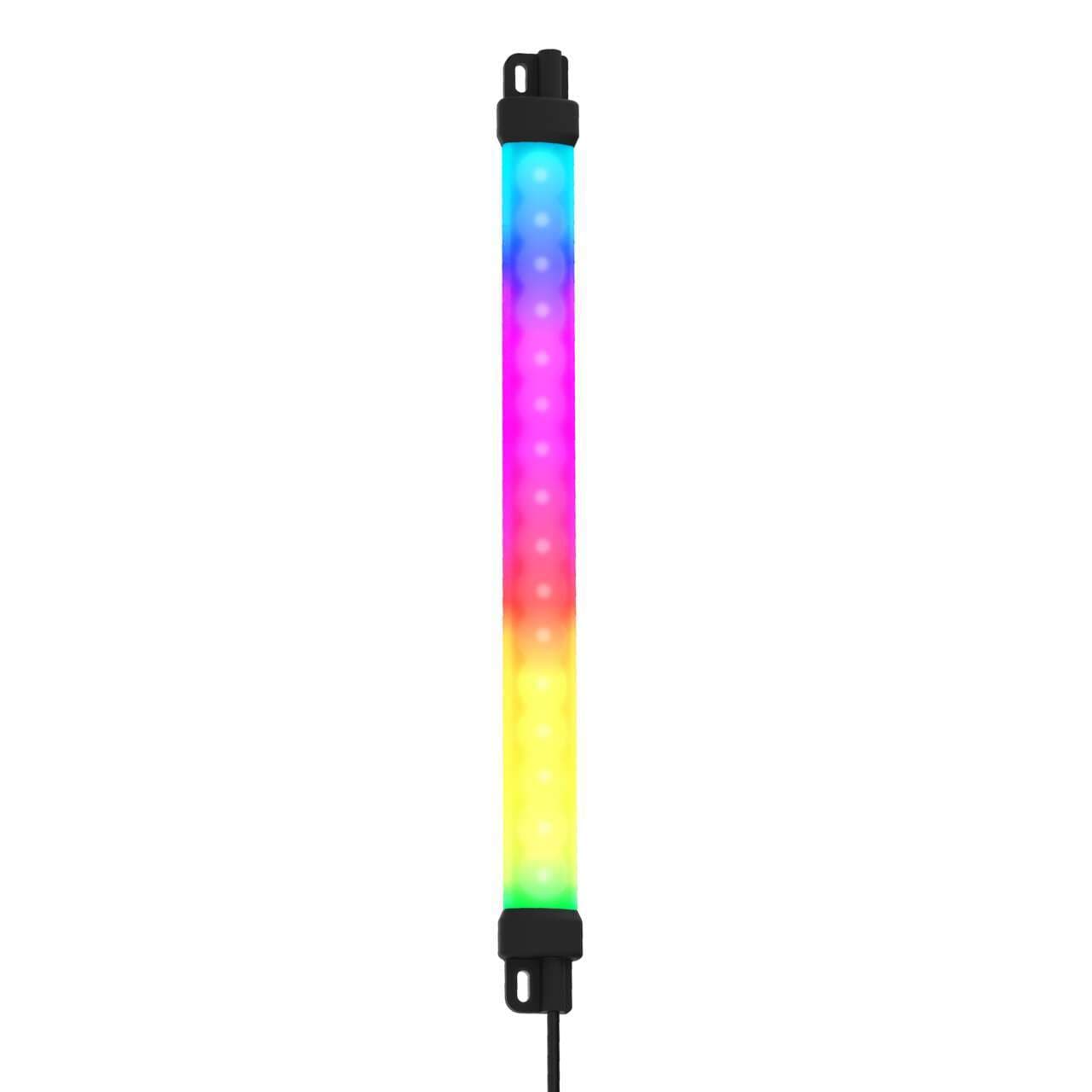

Banner Engineering WLS15PXRGB0500DSQP is a task light designed as a sealed LED industrial strip light/bar featuring a diffused window with 3-color RGB multicolor LED illumination. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this product are L500mm x W15mm, constructed with a polycarbonate (PC) outer housing and a clear anodized aluminum housing, ensuring durability. It is pre-wired with a 6" / 15cm pigtail terminated with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The linear light strip is designed to withstand harsh environments with a degree of protection rated at IP66 and IP67, making it suitable for use in conditions ranging from -40°C to +50°C. It features 3 digital inputs (12-30Vdc) for color control and has a current consumption of 375mA.
Related documents WLS15PXRGB0500DSQP Specs
