WLS15PXRGB0640DSQP Banner Pick-to-Light Sensors
Part#:WLS15PXRGB0640DSQP
Manufacturer:Banner
Alt. Part#:809937
Product Lifecycle:Active
Get a quick Quote!
WLS15 Pro Light Strip with Pro Editor; Diffuse Window; Length: 640 mm; Voltage: 12 -30 V dc; Environmental Rating: IP66; IP67; Color: RGB; Non-Cascadable; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS15PXRGB0640DSQP Banner price in the box on the right side or send a quick quote.
Product Details
- Weight204.1164 g
- Country Of OriginMX
- Power DC
- Wire Selectable Function Programmable
- Physical Dimensions (LxWxH or DxH mm) 640.0 x 30.6 x 15.5
- Environmental Rating IP66; IP67
- Illumination Yes
- Color Input Control Multiple (One or more wires/color, enables more colors than input wires)
- Color Option 1 RGB
- Quick Disconnect Type M12 (Euro)
- Feature: Hazardous Area No
- Wireless No
- Feature: Audible No
- Pro-Editor Compatible (Discrete) Yes
- Feature: Chemical Resistant No
- Primary Housing Material Polycarbonate
- PFM Input Yes
- Animation Option 1 See Configuration File
- Dimming Option Programmable
- Supply Voltage 12-30 V dc
- Housing Style Linear Strip
- Connection Pigtail QD
- Number of Input Pins/Conductors 4
- Secondary Material Polyamide
- Modbus RTU No
- IO Link No
- Number of Colors / Segments 19
- Color Technology RGB Configurable
- Illuminated Length (LxWxH mm) 566.4
- USB No
- Mounting Thread No Thread
- Power Source DC
- Product Size (mm) 15
- Number of Tower Light Segments Programmable
- Max Current Color (mA) 500
- Storage Temp (°C) -40 to 70
- Min Op. Temperature (°C) -40
- Max Op. Temperature (°C) 50
- Primary Window Material Polycarbonate Diffused
- Feature: Quick Disconnect Yes
- Multi-Color Device Simultaneous Colors On
- I/O Block Compatible Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS15PXRGB0640DSQP Description

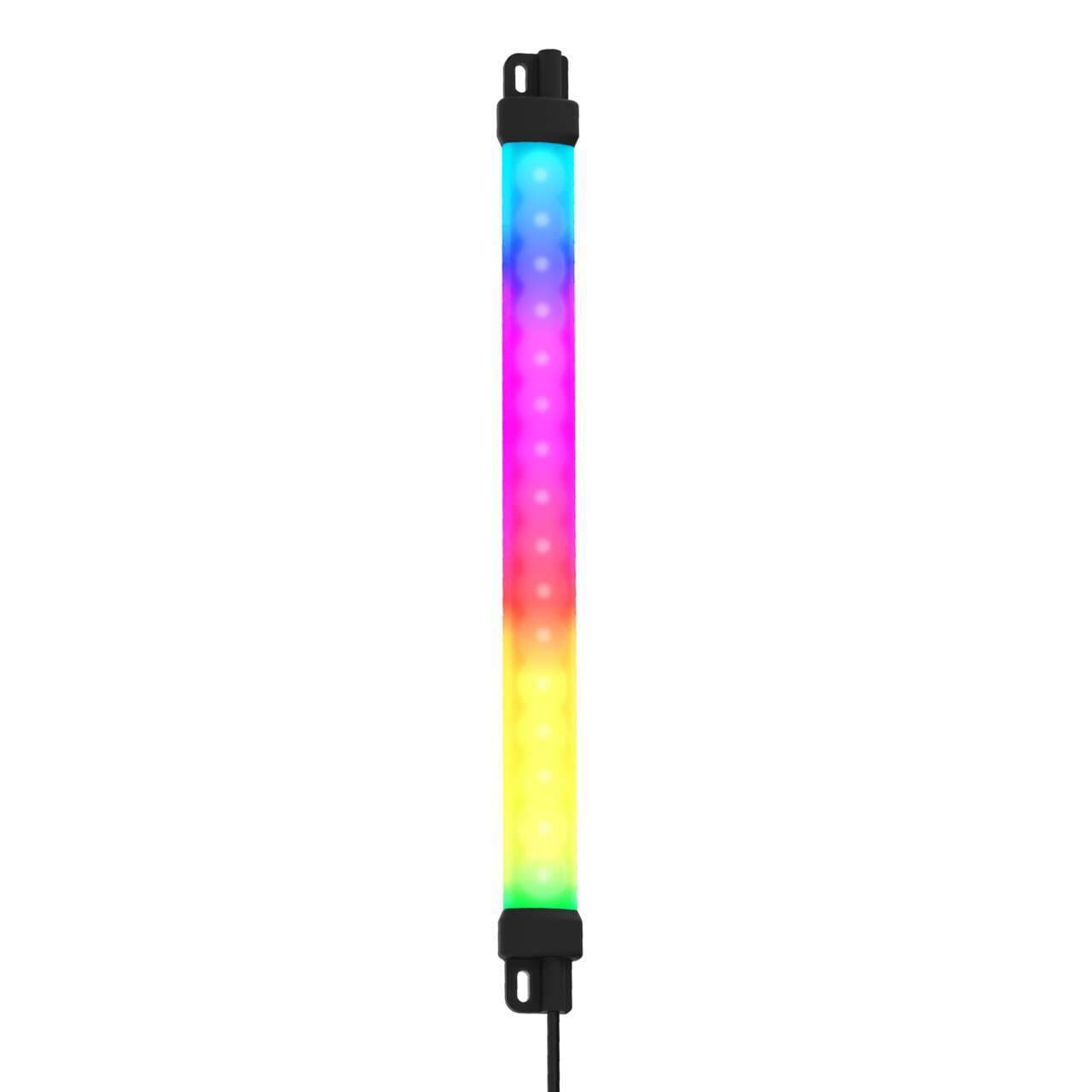

Banner Engineering WLS15PXRGB0640DSQP is a sealed LED industrial strip light designed for task lighting applications. It features a diffused window with a 3-color RGB multicolor color pattern LED illumination. This linear light strip operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of the light strip are L640mm x W15mm, and it is constructed with a polycarbonate (PC) outer housing and a clear anodized aluminum housing for durability. It comes pre-wired with a 6-inch (15cm) pigtail terminated with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The WLS15PXRGB0640DSQP offers a degree of protection rated at IP66 and IP67, making it suitable for use in environments with dust and water exposure. It can operate in ambient air temperatures ranging from -40°C to +50°C. The light strip includes 3 digital inputs (12-30Vdc) for color control and has a current consumption of 500mA.
Related documents WLS15PXRGB0640DSQP Specs
