WLS15XDW0360DSQS Banner Pick-to-Light Sensors
Part#:WLS15XDW0360DSQS
Manufacturer:Banner
Alt. Part#:802038
Product Lifecycle:Active
Get a quick Quote!
WLS15 Work Light Strip; Diffused Window; Length: 360 mm; Voltage: 12 or 24 V dc; Environmental Rating: IP66,67; Color: Daylight White; Deutsch 2-pin DTM PVC Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS15XDW0360DSQS Banner price in the box on the right side or send a quick quote.
Product Details
- Weight113.398 g
- Country Of OriginMX
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Secondary Material Polyamide
- Power Source DC
- Dimming Option PWM
- Primary Window Material Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) No
- Primary Housing Material Polycarbonate
- Lumens Color 1 350
- Illuminated Length (LxWxH mm) 286.4
- Cable Length (m) 2
- Color Technology Standard LED
- Max Op. Temperature (°C) 60
- IO Link No
- Mounting Thread No Thread
- Number of Input Pins/Conductors 2
- Feature: Quick Disconnect Yes
- Number of Colors / Segments 1
- Supply Voltage 12/24 V dc
- Feature: Audible No
- Housing Style Linear Strip
- Connection Pigtail QD
- Environmental Rating IP66; IP67
- Storage Temp (°C) -40 to 70
- Product Size (mm) 15
- Min Op. Temperature (°C) -40
- Wireless No
- Power DC
- Color Option 1 White
- Physical Dimensions (LxWxH or DxH mm) 360.0 x 30.6 x 15.5
- Feature: Hazardous Area No
- Illumination Yes
- Max Current Color (mA) 480
- Feature: Chemical Resistant No
- Modbus RTU No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS15XDW0360DSQS Description

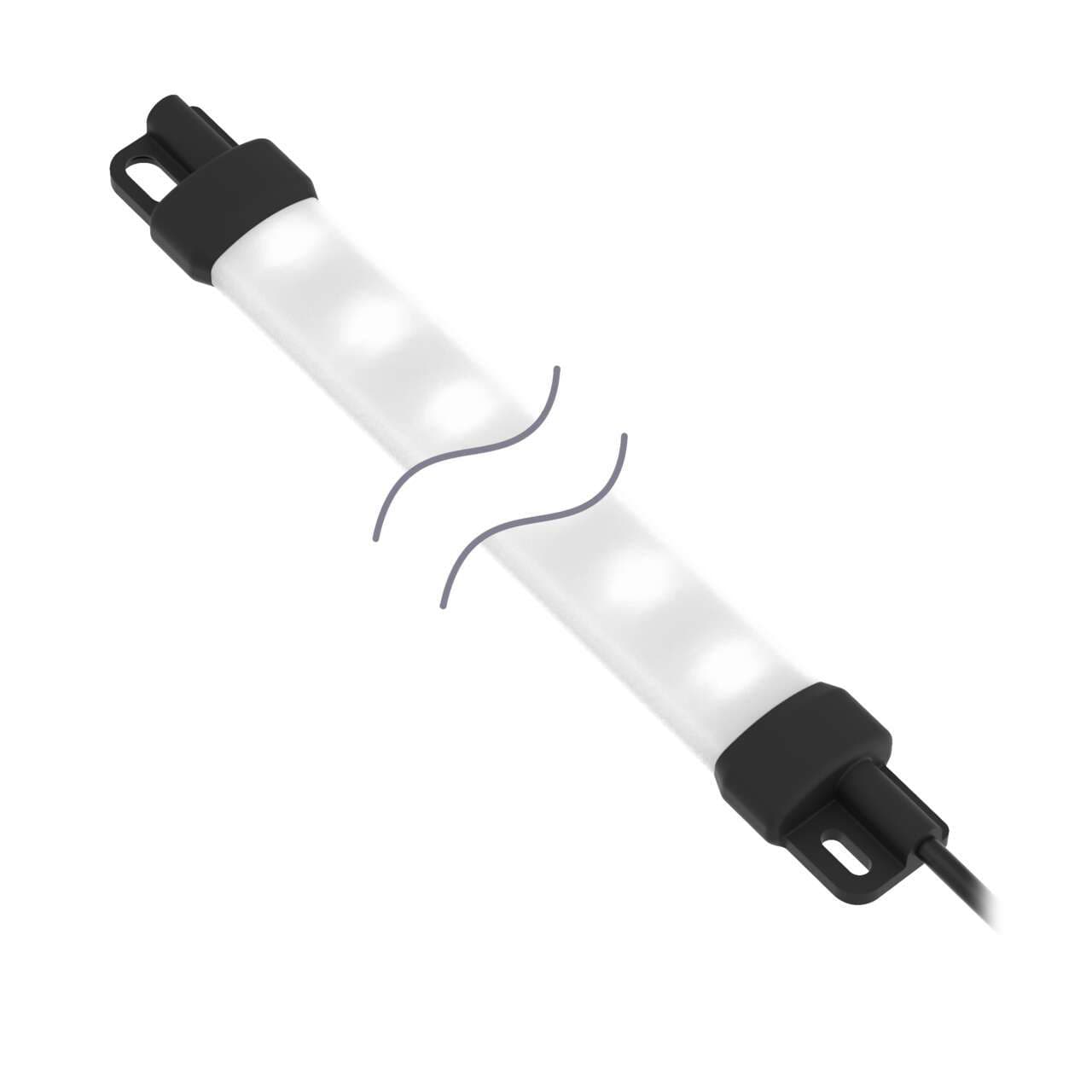

Banner Engineering WLS15XDW0360DSQS is a task light designed for industrial applications, featuring a sealed, low power LED light strip/bar with diffused window 1-color Daylight White (DW) LED illumination. It operates on a supply voltage of either 12Vdc or 24Vdc and has dimensions of L360mm x W15mm. The construction includes a polycarbonate (PC) diffused window and a PC base, ensuring durability. It is pre-wired with a 6" / 15cm pigtail terminated with a 2P DEUTSCH connector for easy installation. The linear light strip shape is engineered to provide targeted lighting, and it offers a degree of protection rated at IP66 and IP67, making it suitable for challenging environments. It can operate within an ambient air temperature range of -40°C to +60°C. The part includes 1 x digital input (12Vdc / 24Vdc) for color control, consumes 480mA of current, and delivers a luminous flux of 350 lm (lumens).
Related documents WLS15XDW0360DSQS Specs
