WLS15XDW1200DSQP Banner Pick-to-Light Sensors
Part#:WLS15XDW1200DSQP
Manufacturer:Banner
Alt. Part#:802036
Product Lifecycle:Active
Get a quick Quote!
WLS15 Work Light Strip; Diffused Window; Length: 1200 mm; Voltage: 12 or 24 V dc; Environmental Rating: IP66,67; Color: Daylight White; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS15XDW1200DSQP Banner price in the box on the right side or send a quick quote.
Product Details
- Weight426.37648 g
- Country Of OriginMX
- Number of Colors / Segments 1
- Dimming Option PWM
- Min Op. Temperature (°C) -40
- Feature: Chemical Resistant No
- Power Source DC
- Product Size (mm) 15
- Illuminated Length (LxWxH mm) 1126.4
- Primary Window Material Polycarbonate Diffused
- Color Technology Standard LED
- Cable Length (m) 0.15
- Illumination Yes
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Physical Dimensions (LxWxH or DxH mm) 1200.0 x 30.6 x 15.5
- Power DC
- Color Option 1 White
- Number of Input Pins/Conductors 4
- Secondary Material Polyamide
- Mounting Thread No Thread
- Lumens Color 1 1400
- Storage Temp (°C) -40 to 70
- Wireless No
- Primary Housing Material Polycarbonate
- Quick Disconnect Type M12 (Euro)
- Environmental Rating IP66; IP67
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Max Current Color (mA) 1920
- Supply Voltage 12/24 V dc
- Feature: Audible No
- Housing Style Linear Strip
- Connection Pigtail QD
- Max Op. Temperature (°C) 60
- Modbus RTU No
- IO Link No
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS15XDW1200DSQP Description

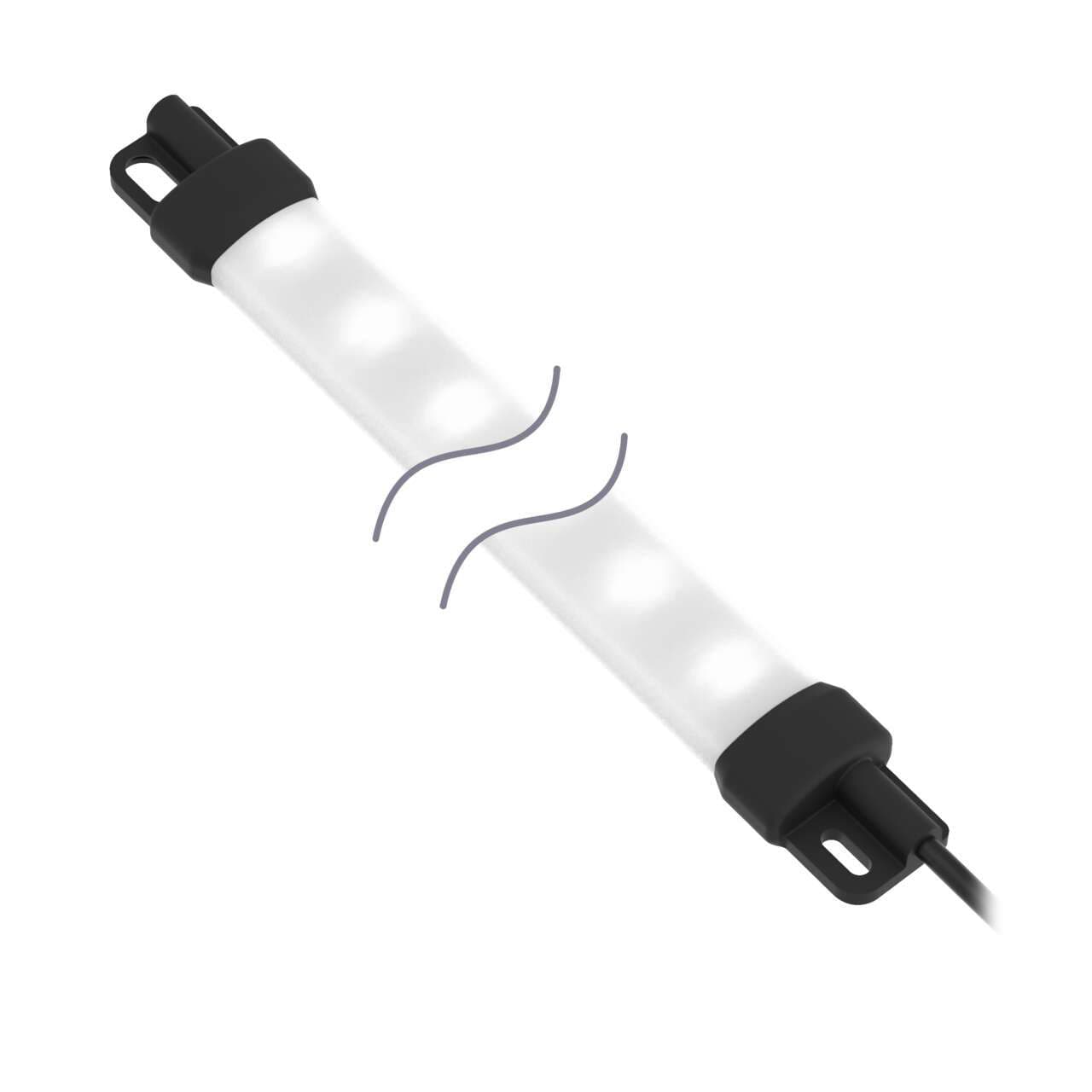

Banner Engineering WLS15XDW1200DSQP is a sealed industrial low power LED light strip/bar designed for task lighting. It features diffused window 1-color Daylight White (DW) LED illumination, operating on a supply voltage of either 12Vdc or 24Vdc. The dimensions of this product are L1200mm x W15mm, constructed from a polycarbonate (PC) diffused window and polycarbonate (PC) base, ensuring durability. It is pre-wired with a 6" / 15cm pigtail that terminates with a 4-pin M12 Euro-style quick disconnect (QD) connector, facilitating easy installation. The linear light strip shape is engineered to fit a variety of applications. It offers a degree of protection rated at IP66 and IP67, making it suitable for harsh environments, with an operational ambient air temperature range from -40°C to +60°C. This model includes 1 x digital input (12Vdc / 24Vdc) for color control, consumes 1.92A of current, and provides a luminous flux of 1400 lm (lumens).
Related documents WLS15XDW1200DSQP Specs
