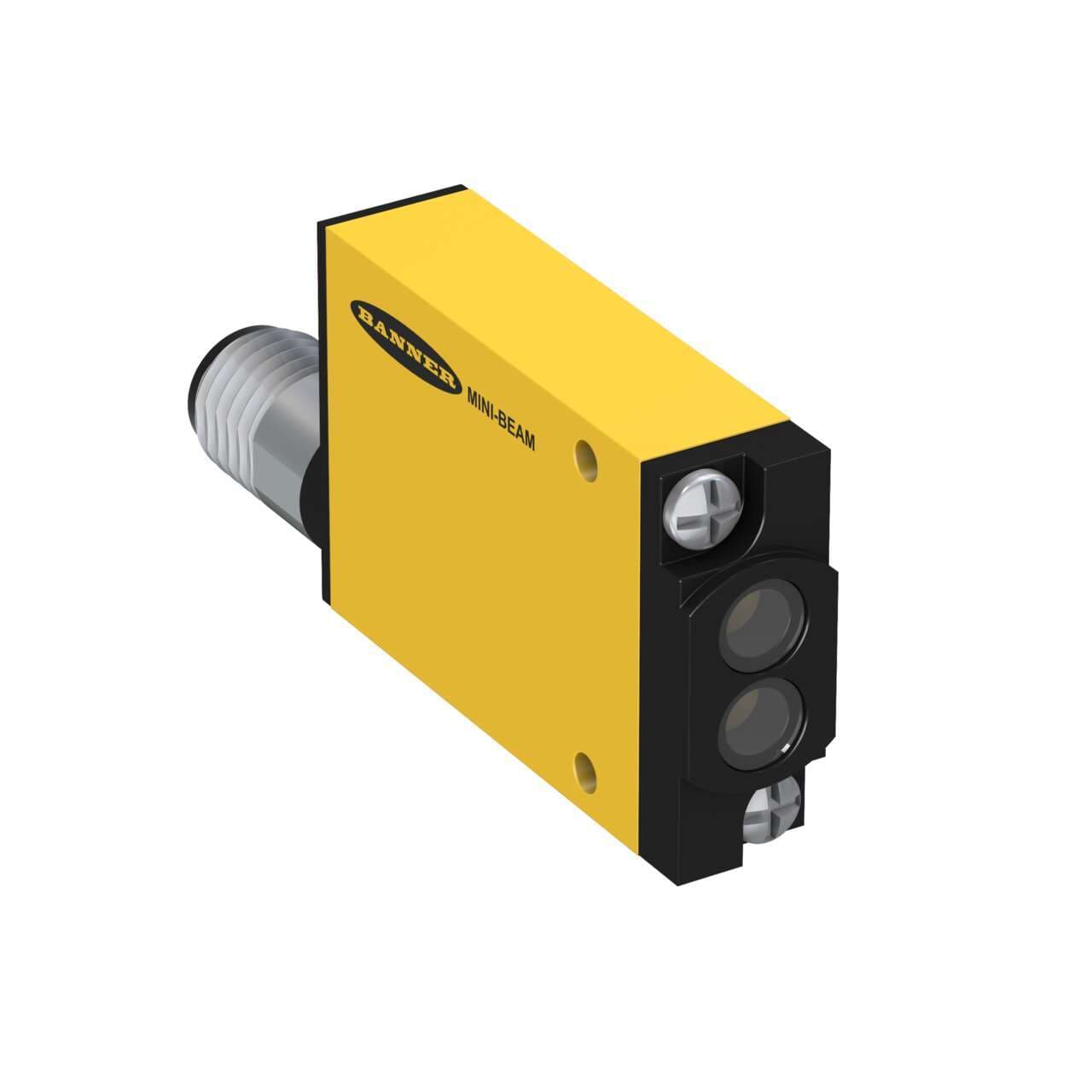

SM2A312WQD Banner Proximity Sensors
Part#:SM2A312WQD
Manufacturer:Banner
Alt. Part#:26893
Product Lifecycle:Active
In-stock parts: 7
Jun 20, 2025
MINI-BEAM: Divergent Diffuse; Range: 130 mm; Input: 24-240 V ac; Output: SPST Solid-state 2-Wire; 3-pin Micro Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SM2A312WQD Banner price in the box on the right side or send a quick quote.
Product Details
- Weight66.224432 g
- Country Of OriginUS
- Primary brand Banner Engineering
- Functions Photo-electric sensor red LED (power ON) potentiometer adjustment
- Shape Rectangular
- Ambient air temperature for operation -20...+70 °C
- Sub-range name SM2A312
- Light Color Infrared (IR)
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Main function Sensor (Photo-electric)
- Design divergent diffuse system
- Connection type Pre-equipped with 3-pin 1/2" Micro connector
- Material thermoplastic housing Acrylic lns.
- Compliant with standard(s) cURus CSA CE
- Supply voltage (AC) 24Vac-240Vac (200Vac / 220Vac nom.)
- Wavelength 880 nm
- Response time 8ms / 0.008 s
- Digital outputs 1 x digital output (Solid-state AC output; SPST contact type)
- Product series / family name MINI-BEAM series
- Sensing distance 130mm
- Operating mode Light-ON Dark-ON
- Order code / Manufacturer SKU 26893
- Sensing Mode (Detailed) Divergent
- Special Feature: Water Detection No
- Feature: Timing (Hold/Delay) No
- Power AC
- Special Feature: Remote Teach No
- Opposed Mode Emitter/Receiver N/A
- IP Rating IP67
- Feature: Hazardous Area No
- IO Link No
- Sensing Beam Infrared LED
- Output response time (ms) 8
- Max Op. Relative Humidity [%] 90% @ 50°C
- DeviceNet No
- Primary Housing Material Thermoplastic
- Min Op. Temp. (°C) -20
- Special Feature: Intrinsically Safe No
- Adjustments Potentiometer
- Sensing Mode (General) Proximity
- Input/Output Solid-State AC Switch
- Power Supply/Supply Voltage 24-240 V ac
- Operation Light/Dark Operate
- Repeatability (µs) 2600
- Number of Pins 3
- Barrel Diameter (mm) N/A
- Feature: Encapsulated Yes
- Max Sensing Distance (mm) 130
- Outputs Solid-State AC Switch
- Connection Integral QD
- Max Op. Temp. (°C) 70
- Lens Material Acrylic
- Indicator LEDs
- Feature: Chemical Resistant No
- Housing Style Rectangular
- Quick Disconnect Type 1/2 in. (Micro)
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Feature: Audible No
- Delay at Power-up (ms) 300
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SM2A312WQD Description
Banner Engineering SM2A312WQD is a photo-electric sensor from the SM2A312 series featuring a divergent diffuse system with potentiometer adjustment. This sensor is housed in thermoplastic with an acrylic lens and is designed for connection via a pre-equipped 3-pin 1/2" micro connector. It operates on a supply voltage range of 24Vac-240Vac (200Vac / 220Vac nom.) and can function within an ambient air temperature range of -20 to +70°C. The SM2A312WQD offers a degree of protection rated at IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, and 13, making it suitable for a variety of environmental conditions. It has a rectangular shape and includes 1 x digital output (Solid-state AC output; SPST contact type) with a sensing distance of 130mm. The sensor utilizes infrared (IR) light with a wavelength of 880 nm and has a response time of 8ms / 0.008 s. Its operating modes include Light-ON and Dark-ON.
Related documents SM2A312WQD Specs
