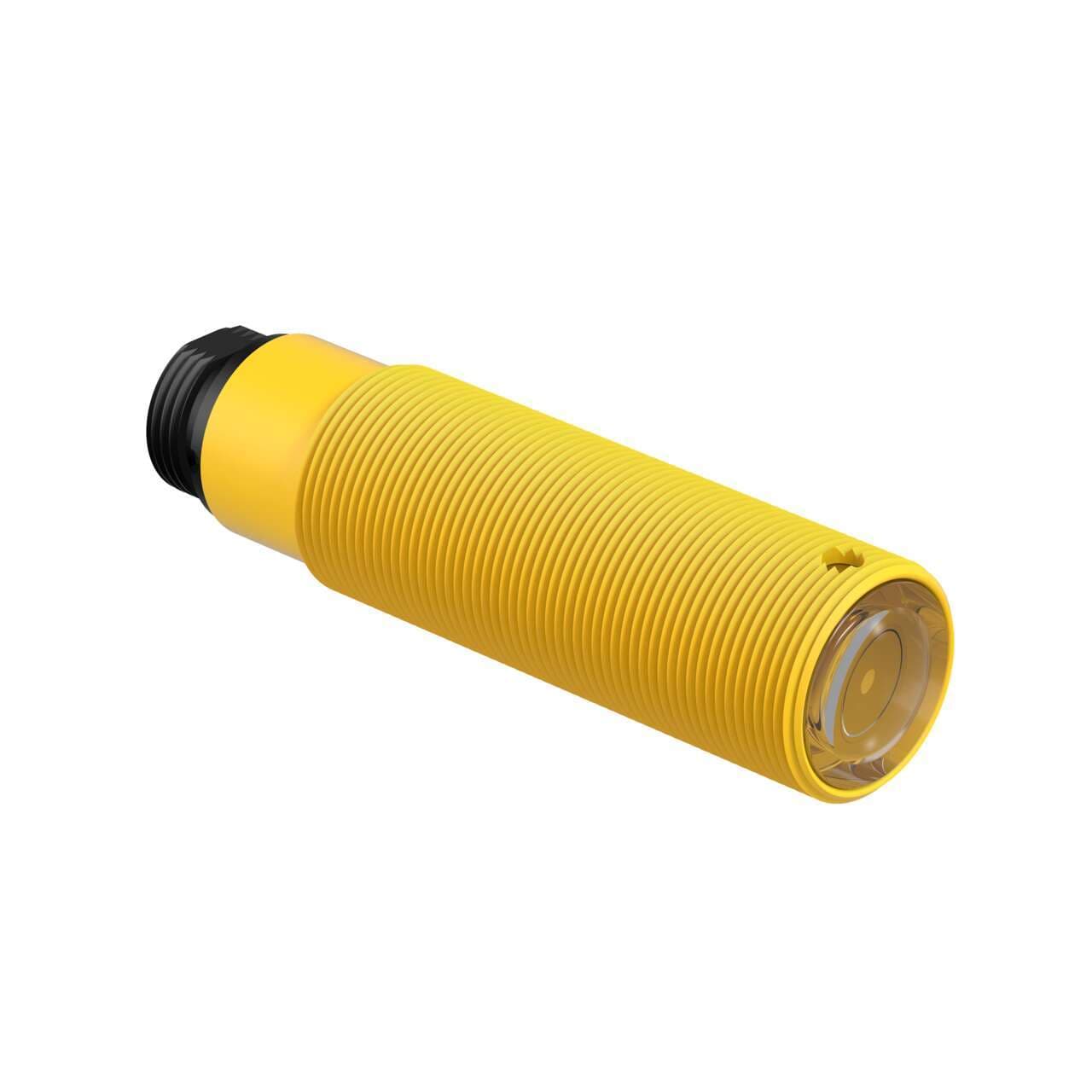

SM2A30PRLNCQD Banner Proximity Sensors
Part#:SM2A30PRLNCQD
Manufacturer:Banner
Alt. Part#:27300
Product Lifecycle:Active
Get a quick Quote!
SM30 Series: Receiver - Frequency A PBT Polyester; Range: 150 m; Input: 24-240 V ac; Output: SPST Solid-State - Dark Operate; 3-pin Mini Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SM2A30PRLNCQD Banner price in the box on the right side or send a quick quote.
Product Details
- Weight163.746712 g
- Country Of OriginMX
- Sensing Mode (Detailed) Receiver
- Power Supply/Supply Voltage 24-240 V ac
- Operation Dark Operate
- Housing Style Barrel
- Sensing Mode (General) Opposed
- IO Link No
- Max Sensing Distance (mm) 150000
- Connection Integral QD
- Output response time (ms) 10
- Indicator LEDs
- Primary Housing Material Thermoplastic
- Min Op. Temp. (°C) -40
- Feature: Chemical Resistant No
- Input/Output Solid-State AC Switch
- Max Op. Temp. (°C) 70
- Max Op. Relative Humidity [%] 90% @ 50°C
- Power AC
- Quick Disconnect Type 7/8 in. (Mini)
- Number of Pins 3
- Feature: Hazardous Area No
- Sensing Beam Infrared LED
- Outputs Solid-State AC Switch
- Special Feature: Intrinsically Safe No
- Delay at Power-up (ms) N/A
- Lens Material Acrylic
- IP Rating IP67
- Barrel Diameter (mm) 30
- Special Feature: Water Detection No
- Adjustments N/A
- Feature: Audible No
- Special Feature: Remote Teach No
- Repeatability (µs) 1000
- Opposed Mode Emitter/Receiver Receiver
- Feature: Timing (Hold/Delay) No
- NEMA Rating NEMA 6P
- Feature: Encapsulated Yes
- DeviceNet No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SM2A30PRLNCQD Description
Banner Engineering SM2A30PRLNCQD is a photo-electric sensor from the SM30 series designed with a through-beam system and opposed mode "A" modulation frequency, suitable for washdown applications. This sensor, functioning as a receiver alone, is housed in a thermoplastic material and comes pre-equipped with a 3-pin 7/8" mini connector. It operates on a supply voltage range of 24Vac-240Vac, with nominal voltages at 200Vac and 220Vac. The sensor can operate within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67, NEMA 6P, and IP69K. Its M30 cylindrical threaded/barrel shape facilitates easy installation. The SM2A30PRLNCQD features a single digital output (Solid-state AC output), can detect objects up to 150m away using infrared light with a wavelength of 880 nm, and responds within 10ms (0.01 s). It operates in Dark-ON mode.
