SM2A312F Banner Proximity Sensors
Part#:SM2A312F
Manufacturer:Banner
Alt. Part#:25966
Product Lifecycle:Active
In-stock parts: 4
Jun 20, 2025
MINI-BEAM: Infrared 880 nm Glass Fiber Optic; Range: Depends on Fiber; Input: 24-240 V ac; Output: SPST Solid-state 2-Wire; 2 m (6.5 ft) Cable
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SM2A312F Banner price in the box on the right side or send a quick quote.
Product Details
- Weight156.035648 g
- Country Of OriginUS
- Color LED - Amplifiers Infrared
- Repeatability (µs) 2600
- Feature: Timing (Hold/Delay) No
- Cable Length (m) 2
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Power Supply/Supply Voltage 24-240 V ac
- Housing Style Rectangular w/M18 Mount
- Output Solid-State AC Switch
- Max Op. Relative Humidity (%) 90% @ 50°C
- Feature: Audible No
- Max Op. Temperature (°C) 70
- Output Type (Specific) Single Discrete
- Special Feature: Bussable Power No
- Primary Housing Material Thermoplastic
- IP Rating IP67
- Delay at Power-up (ms) 300
- Quick Disconnect Type No QD
- Special Feature: Remote Teach No
- Indicator Display Type Indicator LEDs
- Power AC
- Connection Cable
- Min Op. Temperature (°C) -20
- Feature: Hazardous Area No
- Input/Output Discrete
- Number of Pins 2
- Adjustments Potentiometer
- Housing Material Thermoplastic
- Fiber Type Glass Only
- Intrinsically Safe No
- Minimum response time (ms) 8
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

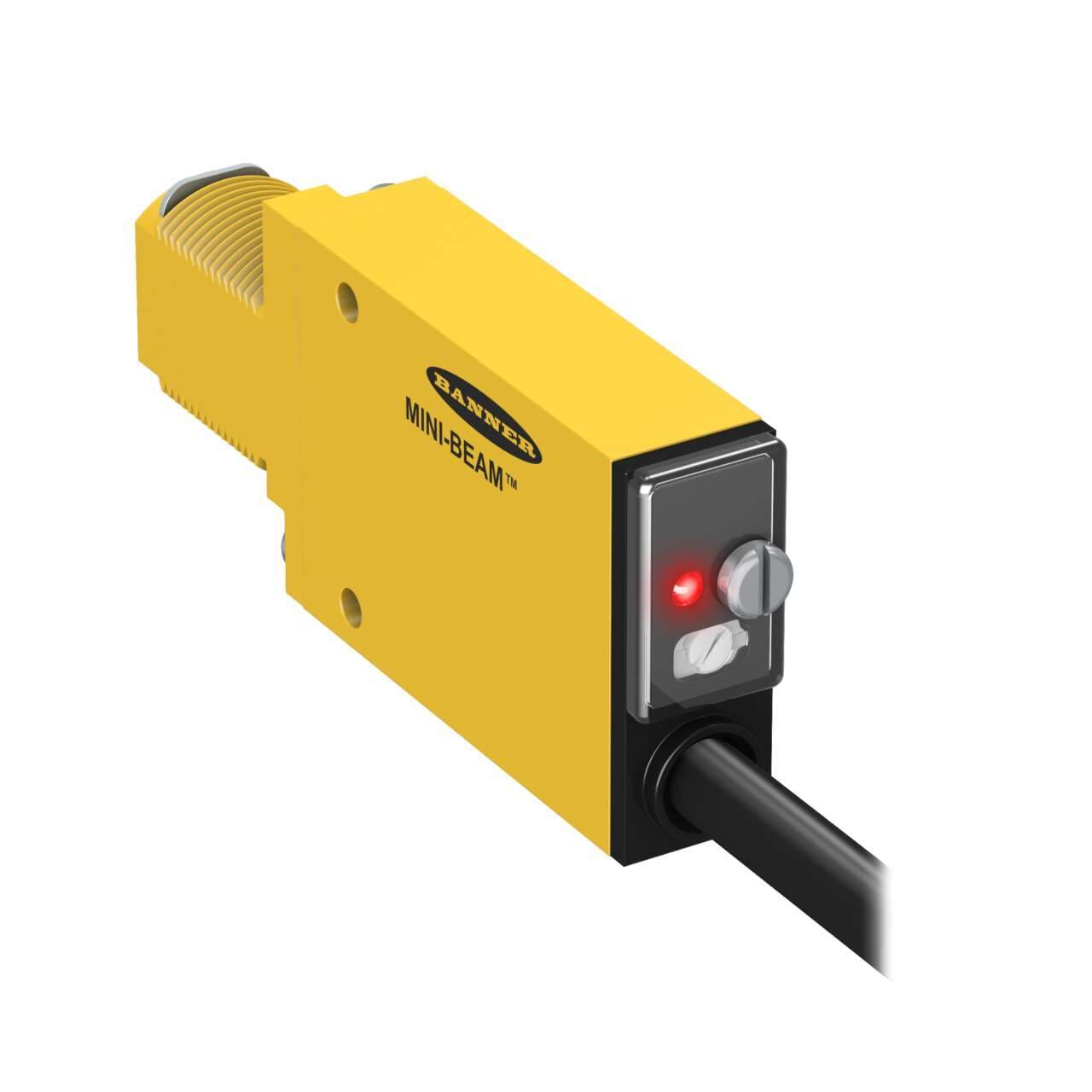

SM2A312F Description
Banner Engineering SM2A312F is a photo-electric fiber optic sensor within the SM2A312 series, designed with a potentiometer adjustment for glass fiber. It features a thermoplastic housing with an acrylic lens and is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. This sensor operates on a supply voltage of 24Vac-240Vac (200Vac / 220Vac nom.) and can be mounted using an M18 threaded mount. It is designed to operate within an ambient air temperature range of -20 to +70°C and offers a degree of protection rated at IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, and 13. The SM2A312F has a rectangular shape, one digital output (Solid-state AC output; SPST contact type), utilizes infrared light with a wavelength of 880 nm, and has a response time of 8ms / 0.008 s.
Related documents SM2A312F Specs
This item can ship within 24h!
1-year warranty
$203.04
Stock:
4
Select Qty:
$203.04
$203.04 each
