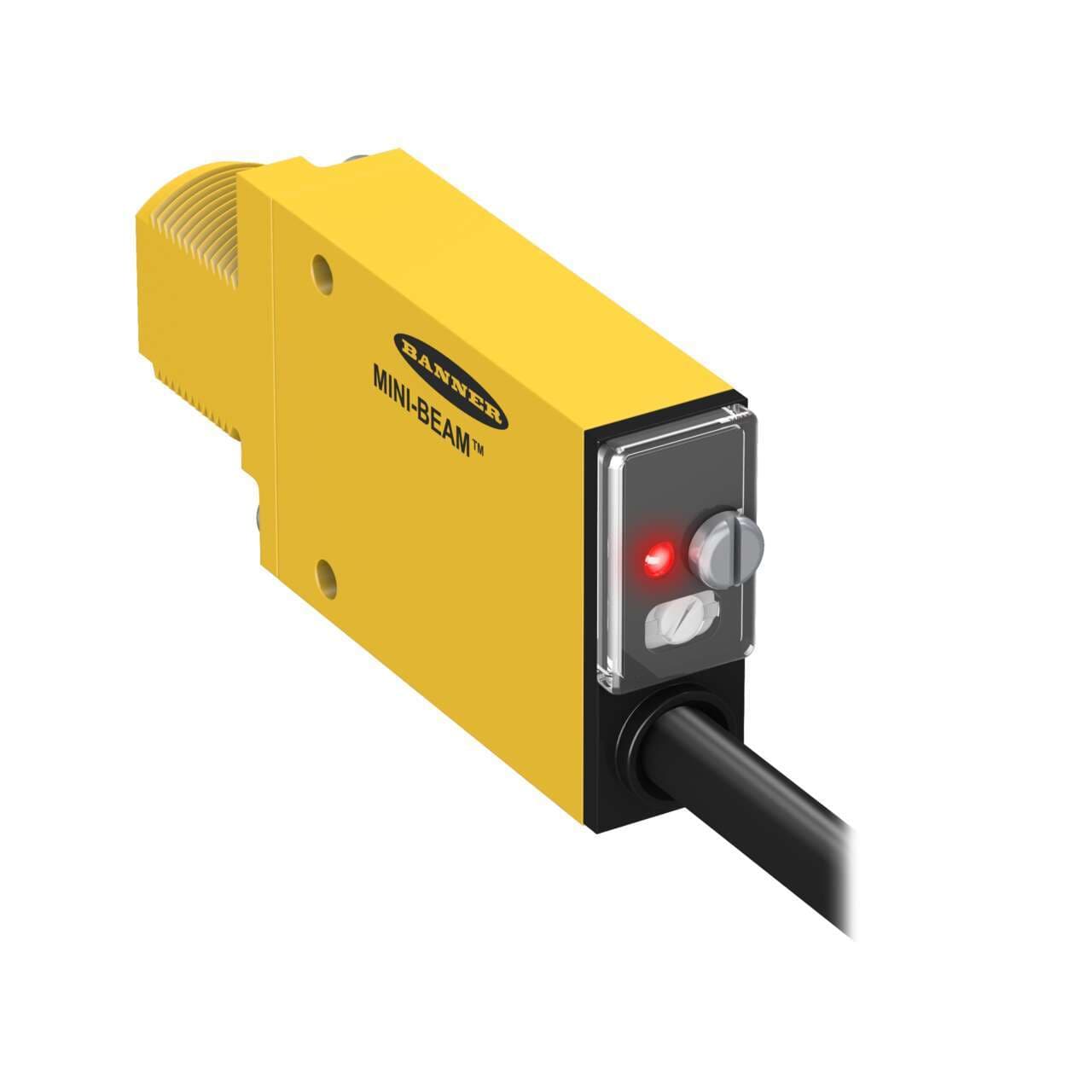

SM2A312LV Banner Proximity Sensors
Part#:SM2A312LV
Manufacturer:Banner
Alt. Part#:25964
Product Lifecycle:Active
In-stock parts: 15
Jun 20, 2025
MINI-BEAM: Retro; Range: 5 m; Input: 24-240 V ac; Output: SPST Solid-state 2-Wire; 2 m (6.5 ft) cable
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SM2A312LV Banner price in the box on the right side or send a quick quote.
Product Details
- Weight153.314096 g
- Country Of OriginUS
- Input/Output Solid-State AC Switch
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Cable Length (m) 2
- Primary Housing Material Thermoplastic
- Power Supply/Supply Voltage 24-240 V ac
- Output response time (ms) 4
- Sensing Beam Wavelength 650
- Housing Style Rectangular w/M18 Mount
- Outputs Solid-State AC Switch
- Max Op. Temp. (°C) 70
- IO Link No
- Power AC
- Max Sensing Distance (mm) 5000
- Quick Disconnect Type No QD
- Special Feature: Remote Teach No
- DeviceNet No
- Sensing Beam Visible Red LED
- Connection Cable
- Delay at Power-up (ms) 300
- Feature: Timing (Hold/Delay) No
- Sensing Mode (General) Retroreflective
- Min Op. Temp. (°C) -20
- Number of Pins 2
- Opposed Mode Emitter/Receiver N/A
- Sensing Mode (Detailed) Non-Polarized
- Operation Light/Dark Operate
- IP Rating IP67
- Feature: Encapsulated Yes
- Special Feature: Water Detection No
- Indicator LEDs
- Adjustments Potentiometer
- Feature: Audible No
- Repeatability (µs) 1300
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Feature: Hazardous Area No
- Barrel Diameter (mm) 18
- Max Op. Relative Humidity [%] 90% @ 50°C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SM2A312LV Description
Banner Engineering SM2A312LV is a photo-electric sensor from the SM2A312 series designed in a retro-reflective mode with potentiometer adjustment. This sensor features a thermoplastic housing and an acrylic lens. It comes pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. The supply voltage required for operation ranges from 24Vac to 240Vac, with nominal voltages at 200Vac and 220Vac. It is designed for M18 threaded mount installation and can operate within an ambient air temperature range of -20 to +70°C. The SM2A312LV offers a degree of protection rated at IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, and 13, making it suitable for various environmental conditions. Its shape is rectangular, and it includes 1 x digital output (Solid-state AC output; SPST contact type) with a sensing distance of 5m. The sensor emits visible red light with a wavelength of 650 nm and has a response time of 4ms / 0.004 s. It supports both Light-ON and Dark-ON operating modes.
Related documents SM2A312LV Specs
This item can ship within 24h!
1-year warranty
$203.04
Stock:
15
Select Qty:
$203.04
$203.04 each
By purchasing this item, you agree to the Terms & Conditions
Quotebeam is NOT an authorized distributor of Banner
Shipping and Delivery Worldwide
calculate costs and time
Secure Payment Processing
with money back guarantee
1 year warranty
on all parts
Responsive Customer Support
we're here to help!
Need more details?
Feel free to chat with us or check our FAQ
Banner Disclaimer:
The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Banner Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Banner, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
