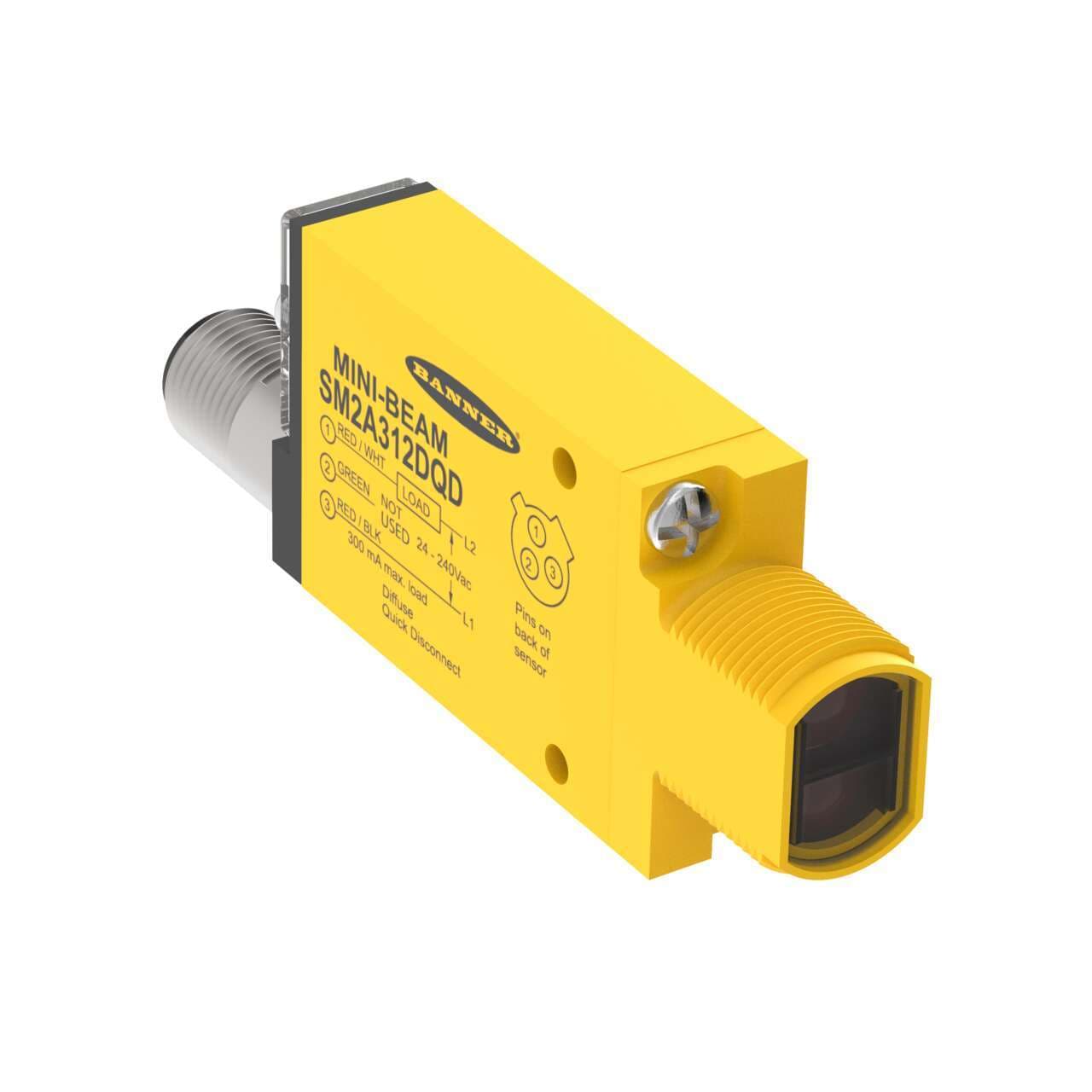

SM2A312DQD Banner Proximity Sensors
Part#:SM2A312DQD
Manufacturer:Banner
Alt. Part#:26841
Product Lifecycle:Active
In-stock parts: 35
Jun 20, 2025
MINI-BEAM: Diffuse; Range: 380 mm; Input: 24-240 V ac; Output: SPST Solid-state 2-Wire; 3-pin Micro Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SM2A312DQD Banner price in the box on the right side or send a quick quote.
Product Details
- Weight71.213944 g
- Country Of OriginUS
- Power AC
- Power Supply/Supply Voltage 24-240 V ac
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Input/Output Solid-State AC Switch
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Primary Housing Material Thermoplastic
- Output response time (ms) 8
- IP Rating IP67
- Feature: Encapsulated Yes
- Sensing Mode (General) Proximity
- Max Op. Temp. (°C) 70
- Sensing Beam Wavelength 650
- Indicator LEDs
- Housing Style Rectangular w/M18 Mount
- Connection Integral QD
- Number of Pins 3
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Max Sensing Distance (mm) 380
- Delay at Power-up (ms) 300
- Feature: Timing (Hold/Delay) No
- Sensing Mode (Detailed) Diffuse
- Quick Disconnect Type 1/2 in. (Micro)
- Operation Light/Dark Operate
- Adjustments Potentiometer
- Sensing Beam Visible Red LED
- Min Op. Temp. (°C) -20
- Repeatability (µs) 2600
- Barrel Diameter (mm) 18
- Outputs Solid-State AC Switch
- Special Feature: Water Detection No
- Opposed Mode Emitter/Receiver N/A
- IO Link No
- Feature: Audible No
- DeviceNet No
- Feature: Hazardous Area No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SM2A312DQD Description
Banner Engineering SM2A312DQD is a photo-electric sensor from the SM2A312 series, designed with a diffuse mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-equipped with a 3-pin 1/2" micro connector for connectivity. It operates on a supply voltage range of 24Vac-240Vac (200Vac / 220Vac nom.) and can be mounted using an M18 threaded mount. The sensor is capable of operating in ambient air temperatures ranging from -20 to +70°C and offers a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, and NEMA 13. It has a rectangular shape and includes 1 x digital output (Solid-state AC output; SPST contact type) with a sensing distance of 380mm. The light color is visible red with a wavelength of 650 nm, and it has a response time of 8ms / 0.008 s. The operating mode can be set to Light-ON or Dark-ON.
Related documents SM2A312DQD Specs
