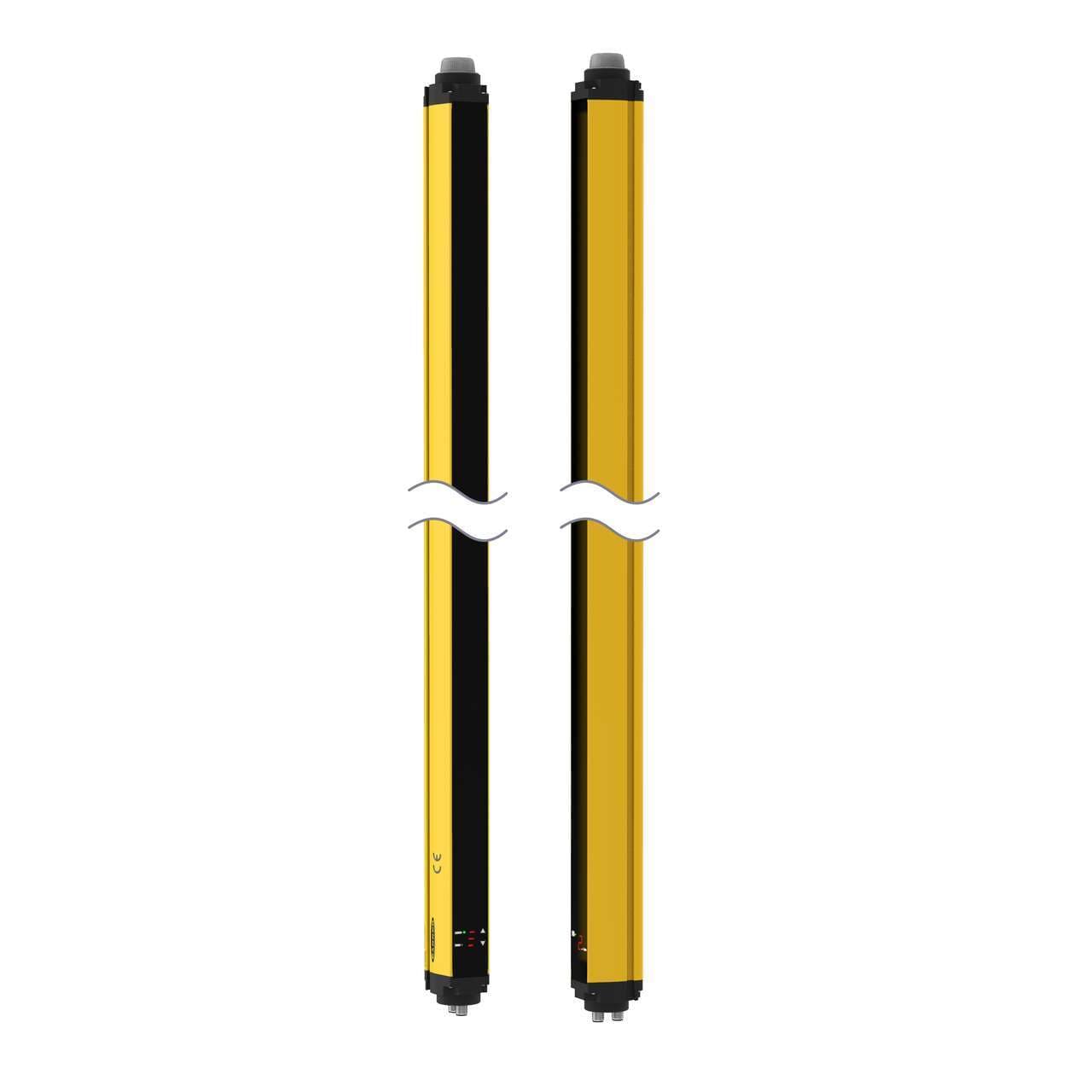

SGSMP4-300Q128 Banner Safety Light Curtains
Part#:SGSMP4-300Q128
Manufacturer:Banner
Alt. Part#:803227
Product Lifecycle:Active
Get a quick Quote!
SGS Safety Grid System, Emitter/Receiver Pair; Beams: 4; Resolution: 300 mm; Range: 0.5 to 30 m; 12-pin M12 QD (R), 8-pin (E); 5-pin M12 QD; Scan Codes, Auto/Manual Start/Restart, EDM, Integral Muting; Mounting Hardware Ordered Separately
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SGSMP4-300Q128 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight5107.44592 g
- Country Of OriginHU
- Fixed Blanking No
- Recovery Time N/A
- Primary Housing Material Aluminum
- Operating Temperature 0 to +55 deg. C; RH 95%
- Short Protection Yes
- OSSD Rating 24 V dc at 0.5 A each
- External Monitoring Device 1 Channel
- Operating Voltage 24 V dc +/- 20%
- Shock 10g at 16ms (6000 cycles)
- Feature: End-to-End Sensing No
- Overall Length (mm) 1006.35
- System Type Emitter/Receiver Pair
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Scan Code Selectable
- Housing Finish Yellow Polyester
- Response Time 14
- Defined Area Height (mm) 900
- Number of Pins (Receiver/Emitter) 12,8
- Vibration 10-55 Hz at 0.35 mm
- Feature: ESD Safe No
- Connector Type M12
- Trip/Latch Output Selectable
- PL Rating Ple
- Test Input No
- Dimensions WxD (mm) 52 x 56.9
- IP Rating IP65
- Electrical Safety Class III
- Fault Output No
- Resolution (mm) 4 - 300
- Housing Material Aluminum; PMMA
- Reduced Resolution No
- Supply Current 500 mA
- SIL Rating SIL3; CL3
- Auxiliary Output No
- Feature: Integral Muting Yes
- Safety Level Type 4
- Operating Distance (m) 0.5 - 30
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SGSMP4-300Q128 Description
Banner Engineering SGSMP4-300Q128 is a safety light curtain from the SGS series designed with an integrated muting function. This product features a pair of emitter and receiver with an aluminium housing, Polymethyl methacrylate (PMMA) lens, and thermoplastic end caps. It is pre-equipped with an 8-pin and a 12-pin Euro-style M12 connector. The protective height is 900mm, and the housing is colored yellow. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The degree of protection offered is IP65. The dimensions include a net width of 52 mm, a net height of 1007 mm, and a net depth of 57 mm. It features 4 beams with a 300mm beam spacing/pitch, 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), and a sensing distance ranging from 50cm to 30m. The light color is infrared (IR) with a response time of 14ms / 0.014 s and a wavelength of 950 nm. The resolution is set at 300mm for perimeter access guarding.
Related documents SGSMP4-300Q128 Specs
