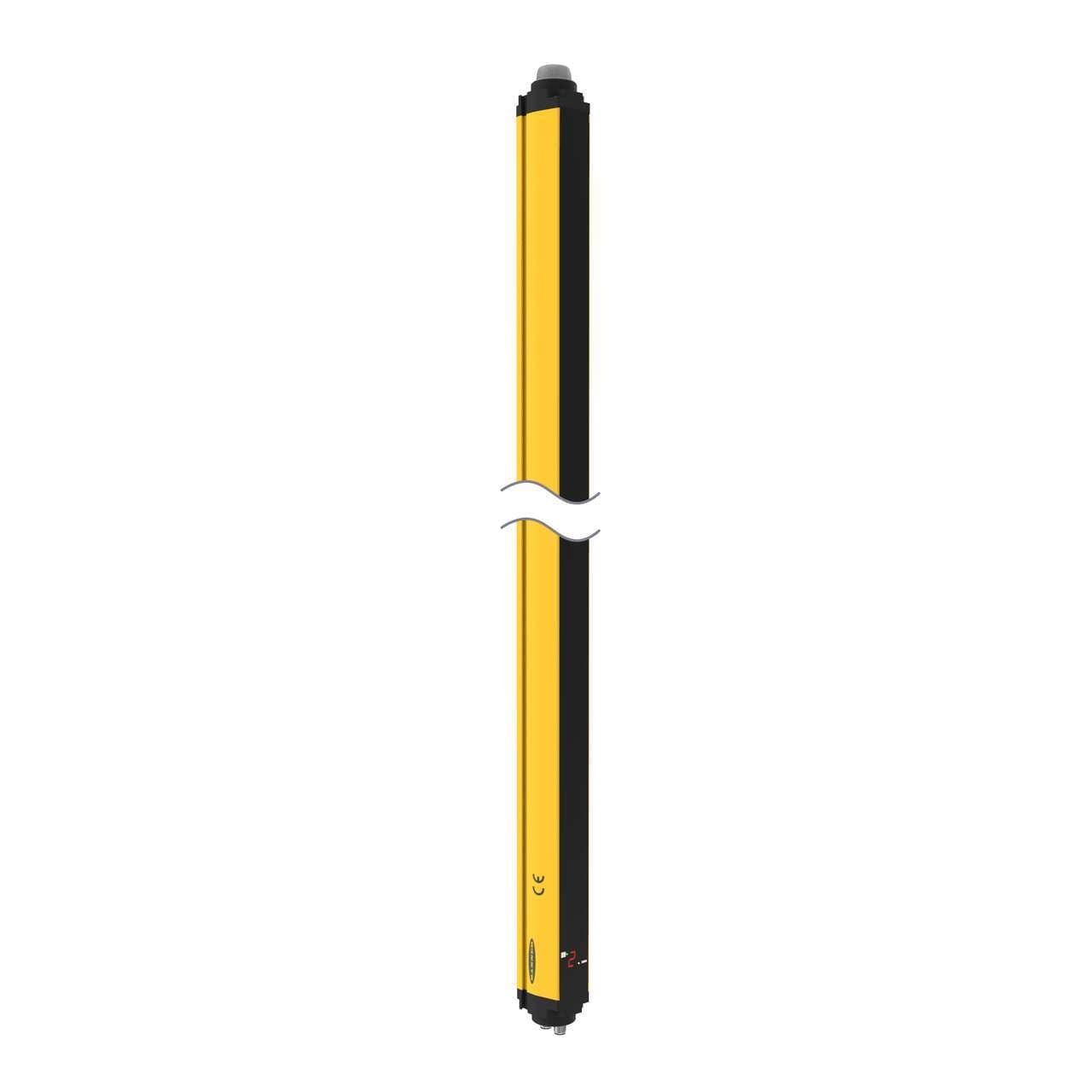

SGSMA3-400Q12 Banner Safety Light Curtains
Part#:SGSMA3-400Q12
Manufacturer:Banner
Alt. Part#:803234
Product Lifecycle:Active
Get a quick Quote!
SGS Safety Grid System, Active Transceiver; Beams: 3; Resolution: 400 mm; Range: 0.5-8 m; 12-pin M12 QD; 5-pin M12 QD; Auto/Manual Start/Restart, EDM, Integral Muting; Mounting Hardware Ordered Separately
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SGSMA3-400Q12 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight2857.6296 g
- Country Of OriginHU
- Auxiliary Output No
- Vibration 10-55 Hz at 0.35 mm
- PL Rating Ple
- Fixed Blanking No
- Operating Distance (m) 0.5 - 8
- Defined Area Height (mm) 800
- Recovery Time N/A
- System Type Transceiver - Active
- Housing Finish Yellow Polyester
- Primary Housing Material Aluminum
- Response Time 12
- Operating Temperature 0 to +55 deg. C; RH 95%
- Scan Code None
- IP Rating IP65
- Reduced Resolution No
- Operating Voltage 24 V dc +/- 20%
- Shock 10g at 16ms (6000 cycles)
- Number of Pins (Receiver/Emitter) 12
- SIL Rating SIL3; CL3
- Fault Output No
- Short Protection Yes
- External Monitoring Device 1 Channel
- Dimensions WxD (mm) 52 x 56.9
- Trip/Latch Output Selectable
- Supply Current 500 mA
- Electrical Safety Class III
- OSSD Rating 24 V dc at 0.5 A each
- Feature: Integral Muting Yes
- Overall Length (mm) 906.35
- Feature: End-to-End Sensing No
- Safety Level Type 4
- Feature: ESD Safe No
- Connector Type M12
- Resolution (mm) 3 - 400
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Housing Material Aluminum; PMMA
- Test Input No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SGSMA3-400Q12 Description
Banner Engineering SGSMA3-400Q12 is a safety light curtain designed for perimeter access guarding with a protective height of 800mm. It features an integrated muting function and operates as an active unit with both transmitter and receiver on one side. The unit is constructed with an aluminium housing, Polymethyl methacrylate (PMMA) lens, and thermoplastic end caps. It is pre-equipped with a 5-pin and a 12-pin Euro-style M12 connector for connectivity. The SGSMA3-400Q12 operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It offers a degree of protection rated at IP65 and has dimensions of 52mm in width, 907mm in height, and 57mm in depth. The safety light curtain features 3 beams with a 380mm beam spacing/pitch, 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), and a sensing distance ranging from 50cm to 8m. It emits infrared (IR) light with a wavelength of 950 nm and has a response time of 12ms. The resolution is specified at 400mm for perimeter access guarding.
