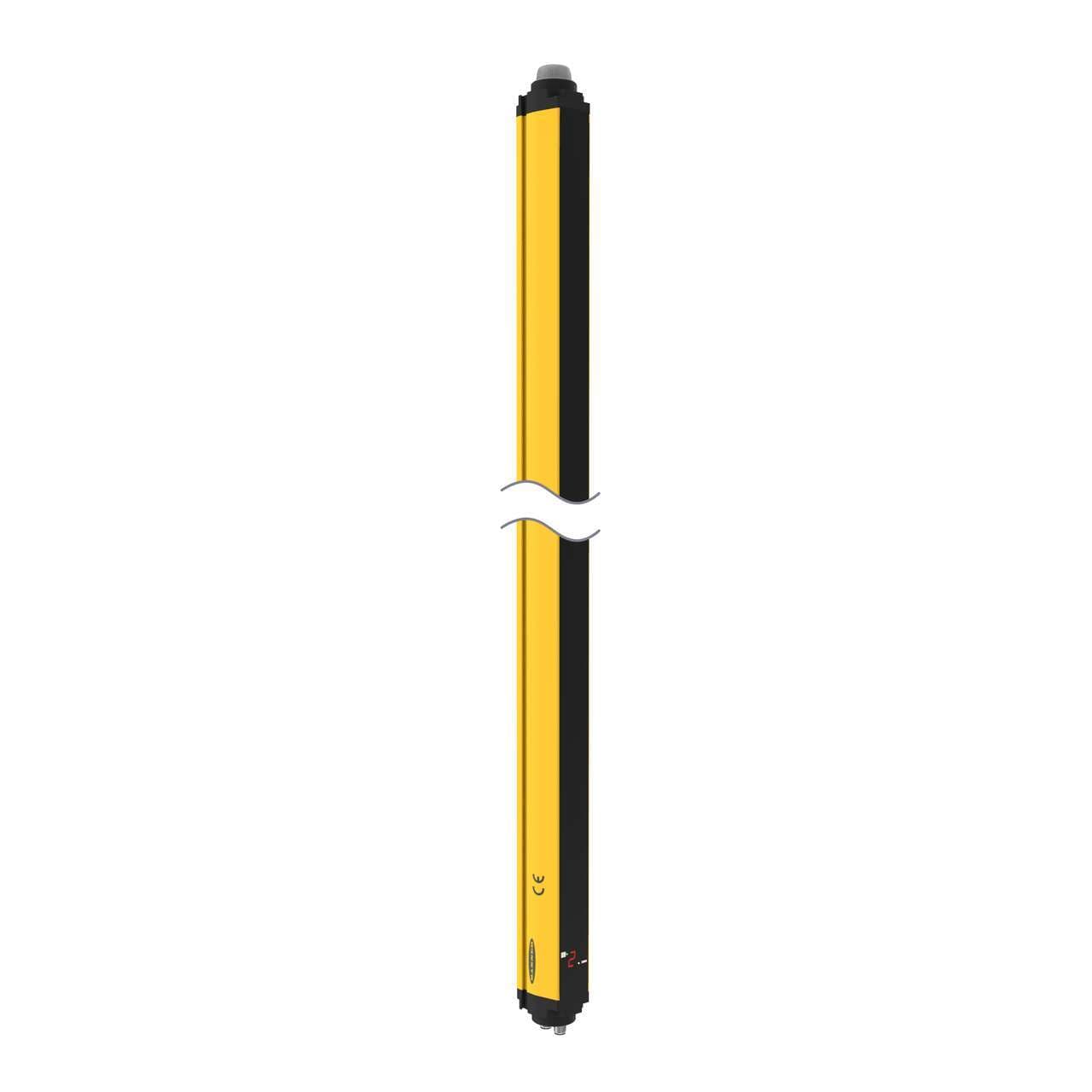

SGSMA4-400Q12 Banner Safety Light Curtains
Part#:SGSMA4-400Q12
Manufacturer:Banner
Alt. Part#:803236
Product Lifecycle:Active
Get a quick Quote!
SGS Safety Grid System, Active Transceiver; Beams: 4; Resolution: 400 mm; Range: 0.5-8 m; 12-pin M12 QD; 5-pin M12 QD; Auto/Manual Start/Restart, EDM, Integral Muting; Mounting Hardware Ordered Separately
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SGSMA4-400Q12 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight4082.328 g
- Country Of OriginHU
- Reduced Resolution No
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Number of Pins (Receiver/Emitter) 12
- Primary Housing Material Aluminum
- Scan Code None
- Supply Current 500 mA
- Fixed Blanking No
- Resolution (mm) 4 - 400
- External Monitoring Device 1 Channel
- PL Rating Ple
- Electrical Safety Class III
- Connector Type M12
- IP Rating IP65
- Response Time 12
- Defined Area Height (mm) 1200
- Feature: ESD Safe No
- Safety Level Type 4
- Operating Temperature 0 to +55 deg. C; RH 95%
- Operating Distance (m) 0.5 - 8
- Vibration 10-55 Hz at 0.35 mm
- Overall Length (mm) 1306.35
- Dimensions WxD (mm) 52 x 56.9
- Recovery Time N/A
- Test Input No
- SIL Rating SIL3; CL3
- Short Protection Yes
- Operating Voltage 24 V dc +/- 20%
- OSSD Rating 24 V dc at 0.5 A each
- Auxiliary Output No
- Housing Finish Yellow Polyester
- Feature: End-to-End Sensing No
- System Type Transceiver - Active
- Housing Material Aluminum; PMMA
- Feature: Integral Muting Yes
- Shock 10g at 16ms (6000 cycles)
- Trip/Latch Output Selectable
- Fault Output No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SGSMA4-400Q12 Description
Banner Engineering SGSMA4-400Q12 is a safety light curtain designed for perimeter access guarding with a protective height of 1200mm. It features an integrated muting function and operates as an active unit with both transmitter and receiver on one side. The housing is made of aluminum, with a polycarbonate (PMMA) lens and thermoplastic end caps. It is pre-equipped with both 5-pin and 12-pin Euro-style M12 connectors for connectivity. The unit is yellow, operates on a 24Vdc supply voltage, and can function within an ambient air temperature range of 0 to +55°C. It is rated IP65 for protection against dust and water jets. The dimensions are 52mm in width, 1307mm in height, and 57mm in depth. The light curtain features 4 beams with a 400mm beam spacing, two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), and a sensing distance ranging from 50cm to 8m. The response time is 12ms, and it emits infrared light with a wavelength of 950 nm.
Related documents SGSMA4-400Q12 Specs
