SGSMP2-500Q128 Banner Safety Light Curtains
Part#:SGSMP2-500Q128
Manufacturer:Banner
Alt. Part#:803225
Product Lifecycle:Active
Get a quick Quote!
SGS Safety Grid System, Emitter/Receiver Pair; Beams: 2; Resolution: 500 mm; Range: 0.5 to 30 m; 12-pin M12 QD (R), 8-pin (E); 5-pin M12 QD; Scan Codes, Auto/Manual Start/Restart, EDM, Integral Muting; Mounting Hardware Ordered Separately
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SGSMP2-500Q128 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight3338.43712 g
- Country Of OriginHU
- Fixed Blanking No
- Resolution (mm) 2 - 500
- Vibration 10-55 Hz at 0.35 mm
- Feature: ESD Safe No
- Connector Type M12
- IP Rating IP65
- Shock 10g at 16ms (6000 cycles)
- Feature: End-to-End Sensing No
- Dimensions WxD (mm) 52 x 56.9
- Operating Voltage 24 V dc +/- 20%
- Scan Code Selectable
- Trip/Latch Output Selectable
- Primary Housing Material Aluminum
- PL Rating Ple
- Electrical Safety Class III
- Safety Level Type 4
- Response Time 12
- Operating Distance (m) 0.5 - 30
- Fault Output No
- External Monitoring Device 1 Channel
- Number of Pins (Receiver/Emitter) 12,8
- Recovery Time N/A
- Auxiliary Output No
- Feature: Integral Muting Yes
- Overall Length (mm) 606.35
- Operating Temperature 0 to +55 deg. C; RH 95%
- SIL Rating SIL3; CL3
- Housing Material Aluminum; PMMA
- Defined Area Height (mm) 500
- Housing Finish Yellow Polyester
- System Type Emitter/Receiver Pair
- Supply Current 500 mA
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Reduced Resolution No
- Short Protection Yes
- Test Input No
- OSSD Rating 24 V dc at 0.5 A each
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SGSMP2-500Q128 Description

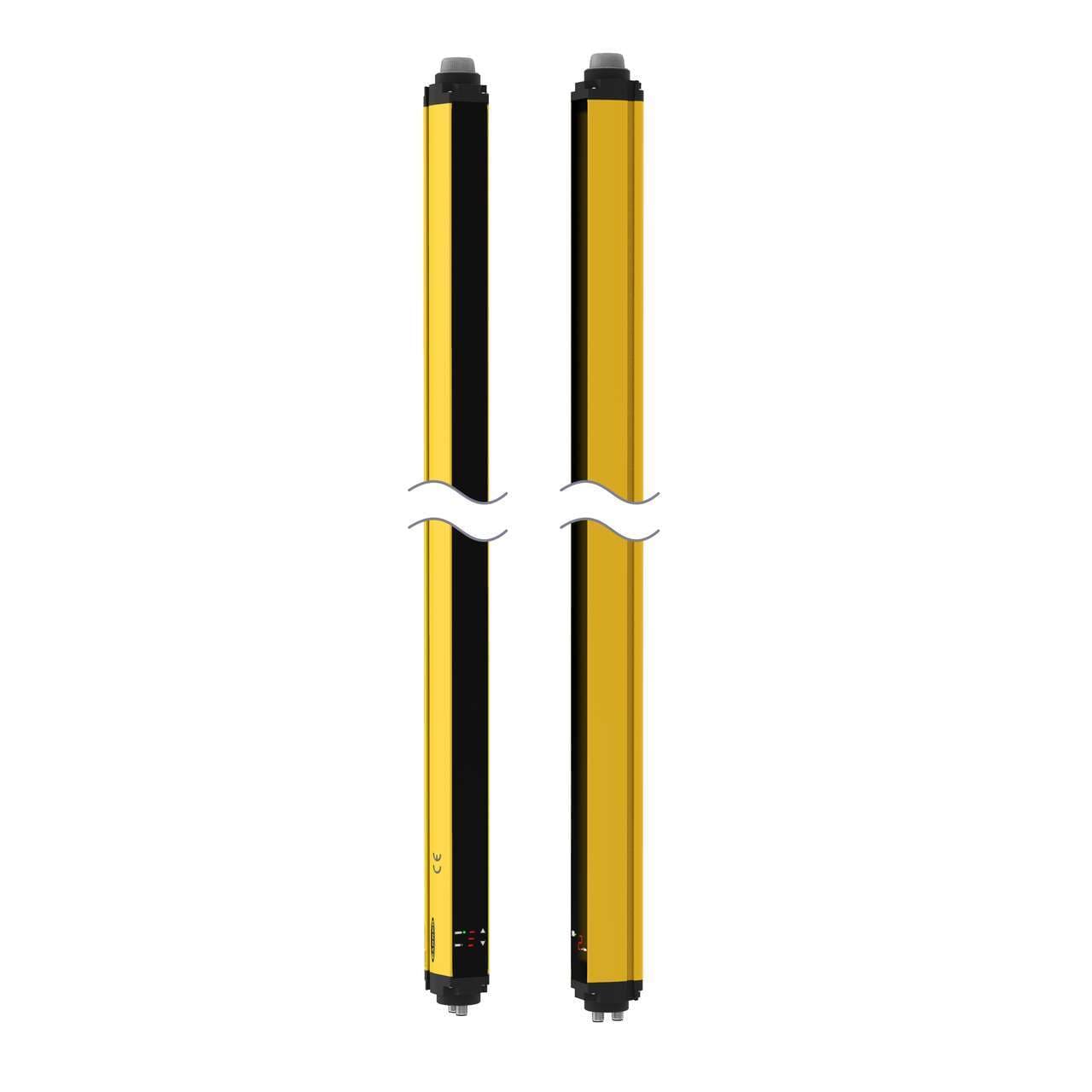

Banner Engineering SGSMP2-500Q128 is a safety light curtain from the SGS series designed with an integrated muting function. This product features a pair of emitter and receiver with an aluminium housing, Polymethyl methacrylate (PMMA) lens, and thermoplastic end caps. It is pre-equipped with both 8-pin and 12-pin Euro-style M12 connectors. The safety light curtain offers a protective height of 500mm and comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The device is rated with an IP65 degree of protection and has dimensions of 52mm in width, 607mm in height, and 57mm in depth. It features 2 beams with a 500mm beam spacing/pitch and includes 2 digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs). The sensing distance ranges from 50cm to 30m, and it utilizes infrared (IR) light with a response time of 12ms / 0.012 s. The wavelength of the light is 950 nm, and it is designed for perimeter access guarding with a resolution of 500mm.
Related documents SGSMP2-500Q128 Specs
