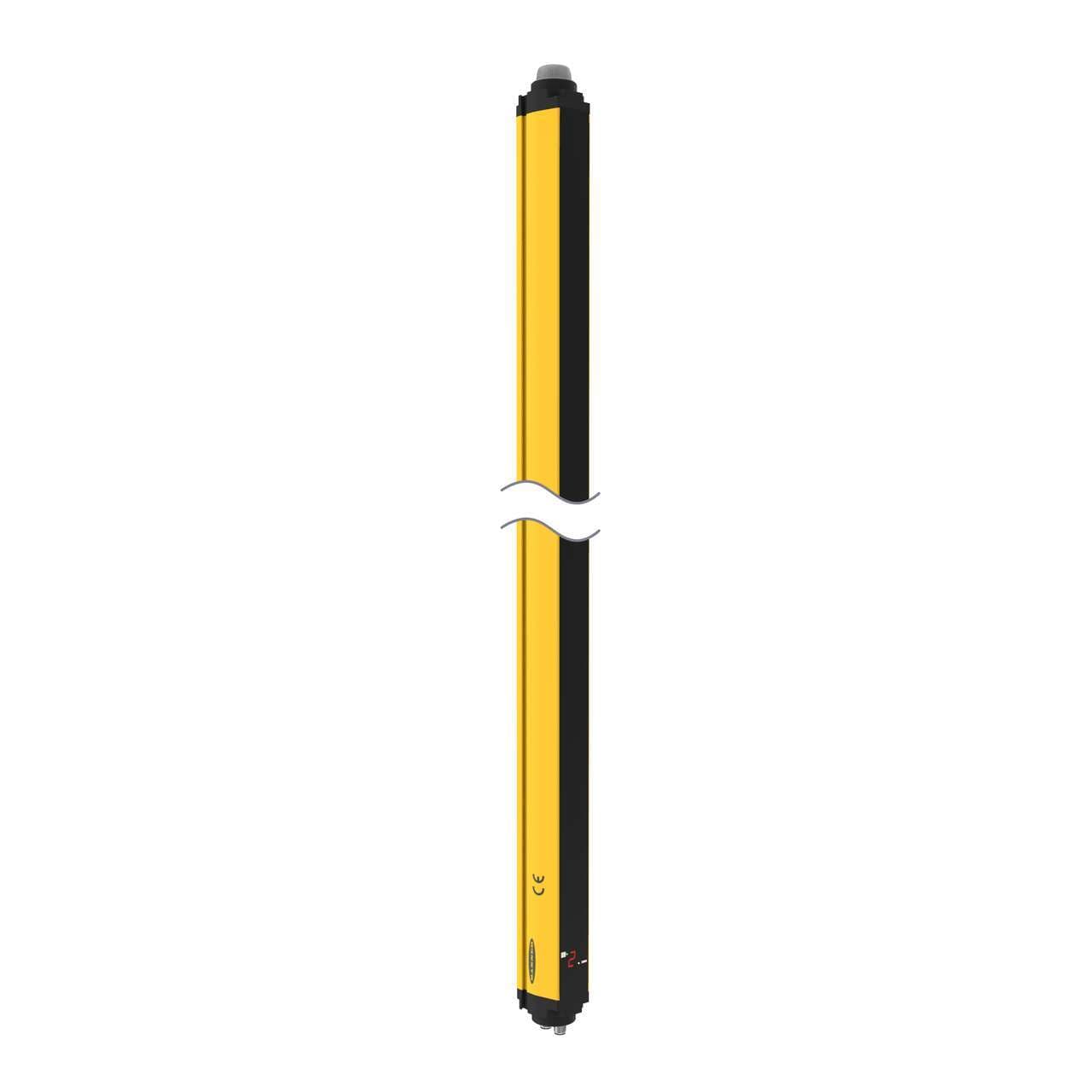

SGSMA2-500Q12 Banner Safety Light Curtains
Part#:SGSMA2-500Q12
Manufacturer:Banner
Alt. Part#:803233
Product Lifecycle:Active
Get a quick Quote!
SGS Safety Grid System, Active Transceiver; Beams: 2; Resolution: 500 mm; Range: 0.5-8 m; 12-pin M12 QD; 5-pin M12 QD; Auto/Manual Start/Restart, EDM, Integral Muting; Mounting Hardware Ordered Separately
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SGSMA2-500Q12 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight2032.09216 g
- Country Of OriginHU
- Dimensions WxD (mm) 52 x 56.9
- SIL Rating SIL3; CL3
- Fixed Blanking No
- External Monitoring Device 1 Channel
- Connector Type M12
- Test Input No
- Housing Finish Yellow Polyester
- Shock 10g at 16ms (6000 cycles)
- Feature: Integral Muting Yes
- Defined Area Height (mm) 500
- Reduced Resolution No
- Housing Material Aluminum; PMMA
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Operating Voltage 24 V dc +/- 20%
- Auxiliary Output No
- Short Protection Yes
- Number of Pins (Receiver/Emitter) 12
- OSSD Rating 24 V dc at 0.5 A each
- Feature: ESD Safe No
- PL Rating Ple
- Electrical Safety Class III
- Fault Output No
- Safety Level Type 4
- Operating Distance (m) 0.5 - 8
- Response Time 11
- Operating Temperature 0 to +55 deg. C; RH 95%
- Supply Current 500 mA
- Overall Length (mm) 606.35
- Resolution (mm) 2 - 500
- Vibration 10-55 Hz at 0.35 mm
- System Type Transceiver - Active
- Recovery Time N/A
- Feature: End-to-End Sensing No
- Primary Housing Material Aluminum
- IP Rating IP65
- Scan Code None
- Trip/Latch Output Selectable
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SGSMA2-500Q12 Description
Banner Engineering SGSMA2-500Q12 is a safety light curtain from the SGS series designed with an integrated muting function. This active unit combines transmission and reception on one side and is housed in aluminum with a polycarbonate (PMMA) lens and thermoplastic end caps. It features a pre-equipped 5-pin and 12-pin Euro-style M12 connector for connectivity. The unit has a protective height of 500mm and comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. With an IP65 degree of protection, it measures 52mm in width, 607mm in height, and 57mm in depth. The SGSMA2-500Q12 offers 2 beams with a 500mm beam spacing/pitch and includes 2 digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs). It has a sensing distance ranging from 50cm to 8m and uses infrared (IR) light with a wavelength of 950 nm. The response time is 11ms, and it is designed for perimeter access guarding with a resolution of 500mm.
Related documents SGSMA2-500Q12 Specs
