SG-TL70-O Banner Signal Towers

Name: SG-TL70-O
Brand: Banner
Price: 88.56 USD
Availability: InStock

Banner SG-TL70-O TL70 Light Module; Color: Orange (red yellow blend); Voltage: 12-30 V dc; Environmental Rating: IP65; Steady On/Flashing; Black Housing

Part#:SG-TL70-O

Manufacturer:Banner

Alt. Part#:95427

Product Lifecycle:Active

In-stock parts: 2

Jun 19, 2025

TL70 Light Module; Color: Orange (red yellow blend); Voltage: 12-30 V dc; Environmental Rating: IP65; Steady On/Flashing; Black Housing

About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SG-TL70-O Banner price in the box on the right side or send a quick quote.

Product Details

Weight90.7184 g
Country Of OriginMX
Power
DC or AC
Mounting Thread
No Thread
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Product Size (mm)
70
Max Current Color (mA)
420
Modbus RTU
No
Primary Housing Material
Polycarbonate
Color Technology
Standard LED
Color Option 1
Orange
Max Op. Temperature (°C)
50
Wireless
No
Housing Style
Segment - Light
Max Op. Relative Humidity Non-Condensing (%)
95% @ 50°C
Storage Temp (°C)
-40 to 70
Number of Colors / Segments
1
Indication
Yes
Min Op. Temperature (°C)
-40
Power Source
DC or AC

Physical Dimensions (LxWxH or DxH mm)

70.0 x 50.0

Feature: Audible

Lumens Color 1

33.0

Primary Housing Color

Black

IO Link

Animation Option 1

Dip-Switch Controlled

Primary Window Material

Polycarbonate Diffused

Feature: Chemical Resistant

Environmental Rating

IP65

Color 1 - Wavelength/Color Temp/Coordinates

0.66, 0.33

Pro-Editor Compatible (Discrete)

Feature: Hazardous Area

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

SG-TL70-O Description

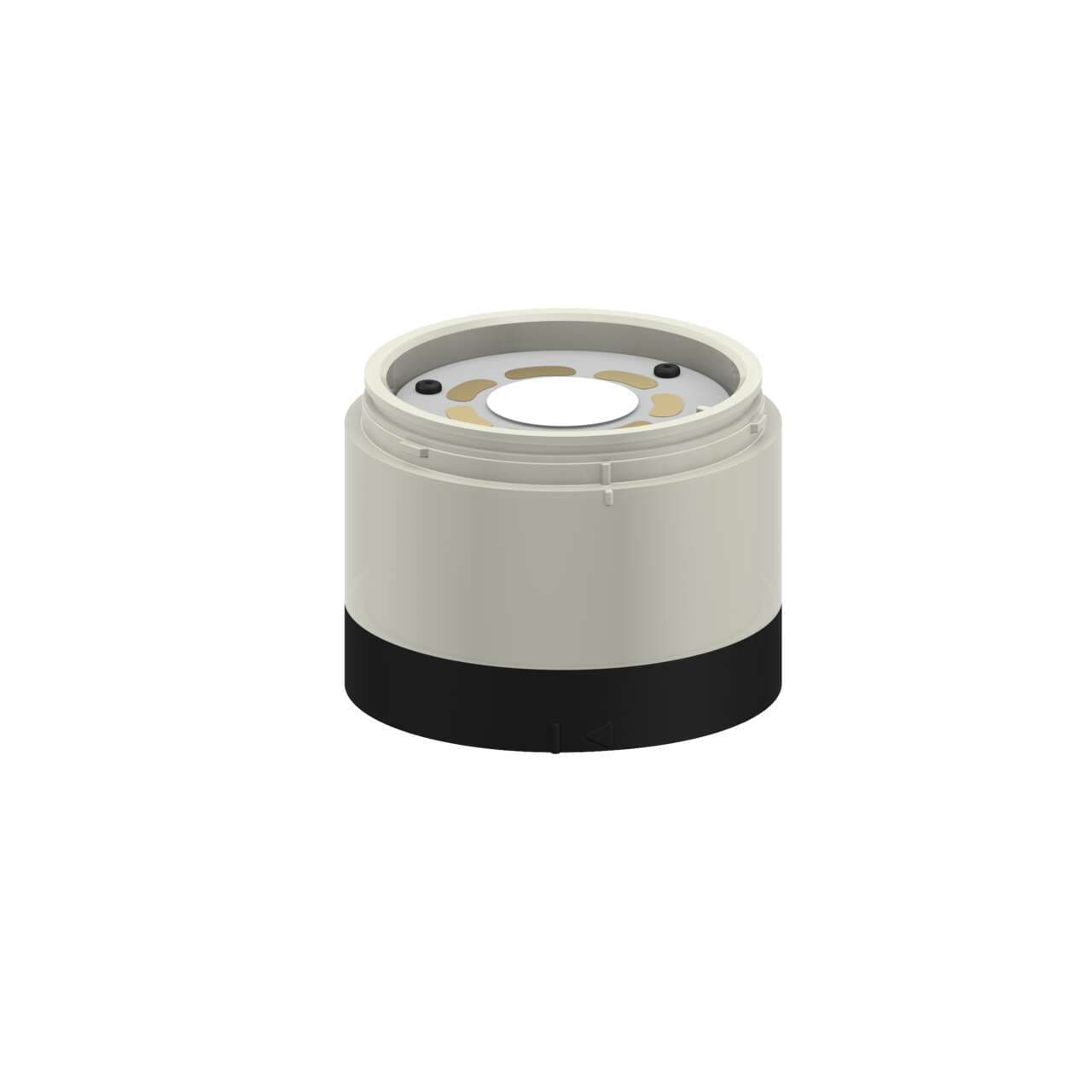

Banner Engineering SG-TL70-O is a light unit from the Modular series, designed with a 1-color orange LED illumination suitable for tow light module applications. It features polycarbonate (PC) windows and segments, along with a polycarbonate (PC) base, ensuring durability. This unit has a cylindrical shape with a diameter of 70mm / 2-3/4" and comes in a black housing. It operates on a supply voltage range of 12Vdc-30Vdc, with a nominal voltage of 24Vdc, and has a current consumption of 420mA. The SG-TL70-O is designed to function within an ambient air temperature range of -40°C to +50°C and is rated with a degree of protection of IP65, making it suitable for various environmental conditions.
