SG-TL70-B Banner Signal Towers

Name: SG-TL70-B
Brand: Banner
Price: 88.56 USD
Availability: InStock

Banner SG-TL70-B TL70 Light Module; Color: Blue; Voltage: 12-30 V dc; Environmental Rating: IP65; Steady On/Flashing; Black Housing

Part#:SG-TL70-B

Manufacturer:Banner

Alt. Part#:92214

Product Lifecycle:Active

In-stock parts: 26

Jun 18, 2025

TL70 Light Module; Color: Blue; Voltage: 12-30 V dc; Environmental Rating: IP65; Steady On/Flashing; Black Housing

About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SG-TL70-B Banner price in the box on the right side or send a quick quote.

Product Details

Weight78.5621344 g
Country Of OriginMX
Modbus RTU
No
Lumens Color 1
32.0
Indication
Yes
Color Option 1
Blue
Feature: Hazardous Area
No
Cable Length (m)
2
Product Size (mm)
70
Min Op. Temperature (°C)
-40
Number of Colors / Segments
1
Max Op. Temperature (°C)
50
Feature: Chemical Resistant
No
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Physical Dimensions (LxWxH or DxH mm)
70.0 x 50.0
IO Link
No
Power Source
DC or AC
Max Current Color (mA)
420
Primary Window Material
Polycarbonate Diffused
Power
DC or AC

Color Technology

Standard LED

Feature: Audible

Mounting Thread

No Thread

Storage Temp (°C)

-40 to 70

Wireless

Primary Housing Material

Polycarbonate

Animation Option 1

Dip-Switch Controlled

Primary Housing Color

Black

Housing Style

Segment - Light

Color 1 - Wavelength/Color Temp/Coordinates

470 nm

Environmental Rating

IP65

Max Op. Relative Humidity Non-Condensing (%)

95% @ 50°C

Pro-Editor Compatible (Discrete)

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

SG-TL70-B Description

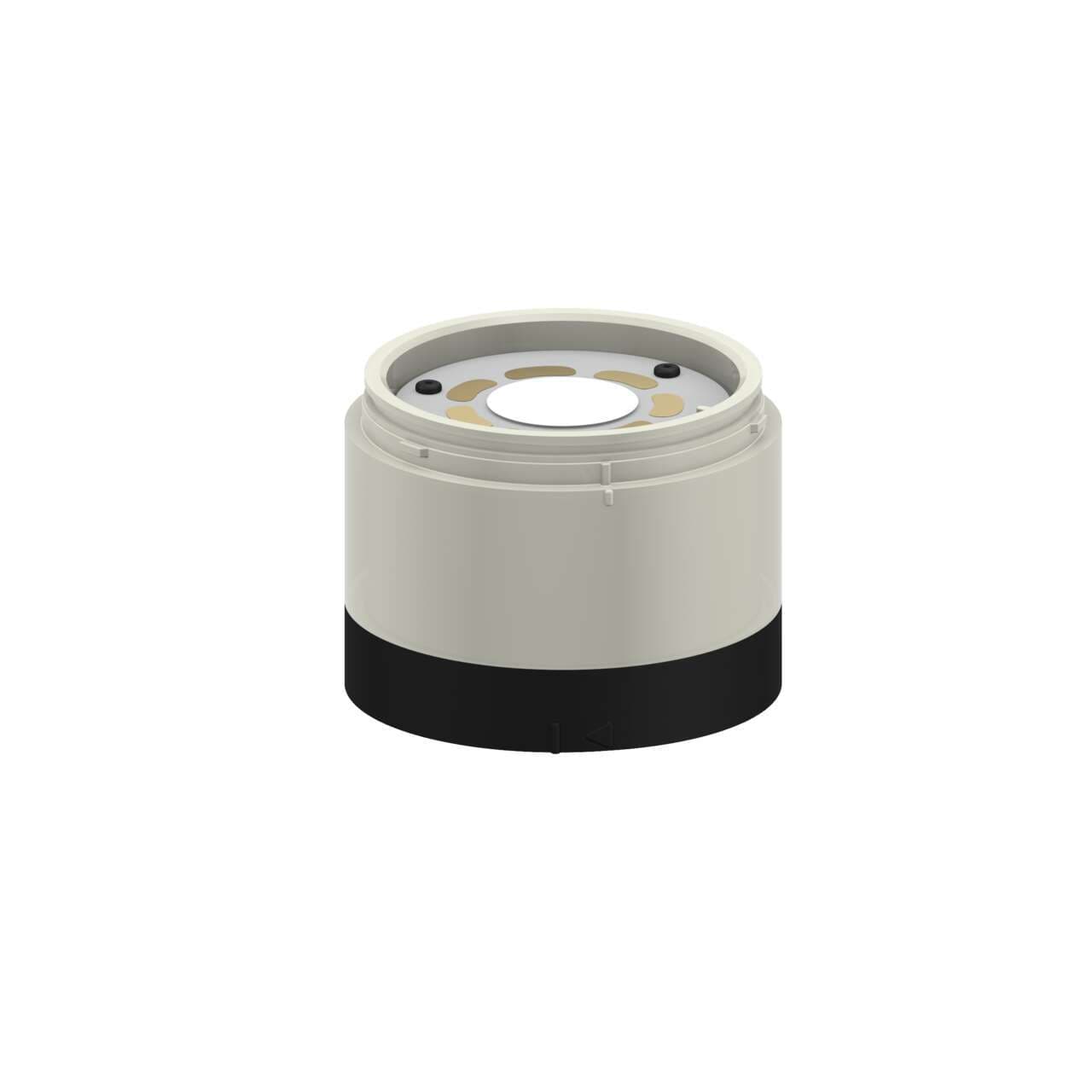

Banner Engineering SG-TL70-B is a light unit from the Modular series, designed with 1-color blue LED illumination. This tow light module features polycarbonate (PC) windows and segments, along with a polycarbonate (PC) base, ensuring durability. It has a cylindrical shape with a diameter of 70mm / 2-3/4" and comes in a black housing. The unit operates on a supply voltage range of 12Vdc-30Vdc, with a nominal voltage of 24Vdc, and has a current consumption of 420mA. It is built to function within an ambient air temperature range of -40°C to +50°C and offers a degree of protection rated at IP65, making it suitable for various environmental conditions.
