SG-TL70-Y Banner Signal Towers
Part#:SG-TL70-Y
Manufacturer:Banner
Alt. Part#:92212
Product Lifecycle:Active
In-stock parts: 21
Jun 18, 2025
TL70 Light Module; Color: Yellow; Voltage: 12-30 V dc; Environmental Rating: IP65; Steady On/Flashing; Black Housing
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SG-TL70-Y Banner price in the box on the right side or send a quick quote.
Product Details
- Weight31.75144 g
- Country Of OriginMX
- Primary Housing Color Black
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 590 nm
- Storage Temp (°C) -40 to 70
- Pro-Editor Compatible (Discrete) No
- Color Option 1 Yellow
- Power Source DC or AC
- Environmental Rating IP65
- Mounting Thread No Thread
- Physical Dimensions (LxWxH or DxH mm) 70.0 x 50.0
- Feature: Audible No
- Power DC or AC
- Product Size (mm) 70
- Min Op. Temperature (°C) -40
- Wireless No
- Primary Housing Material Polycarbonate
- Max Current Color (mA) 420
- Feature: Hazardous Area No
- Number of Colors / Segments 1
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- IO Link No
- Housing Style Segment - Light
- Animation Option 1 Dip-Switch Controlled
- Max Op. Temperature (°C) 50
- Indication Yes
- Color Technology Standard LED
- Lumens Color 1 22.0
- Primary Window Material Polycarbonate Diffused
- Feature: Chemical Resistant No
- Modbus RTU No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SG-TL70-Y Description

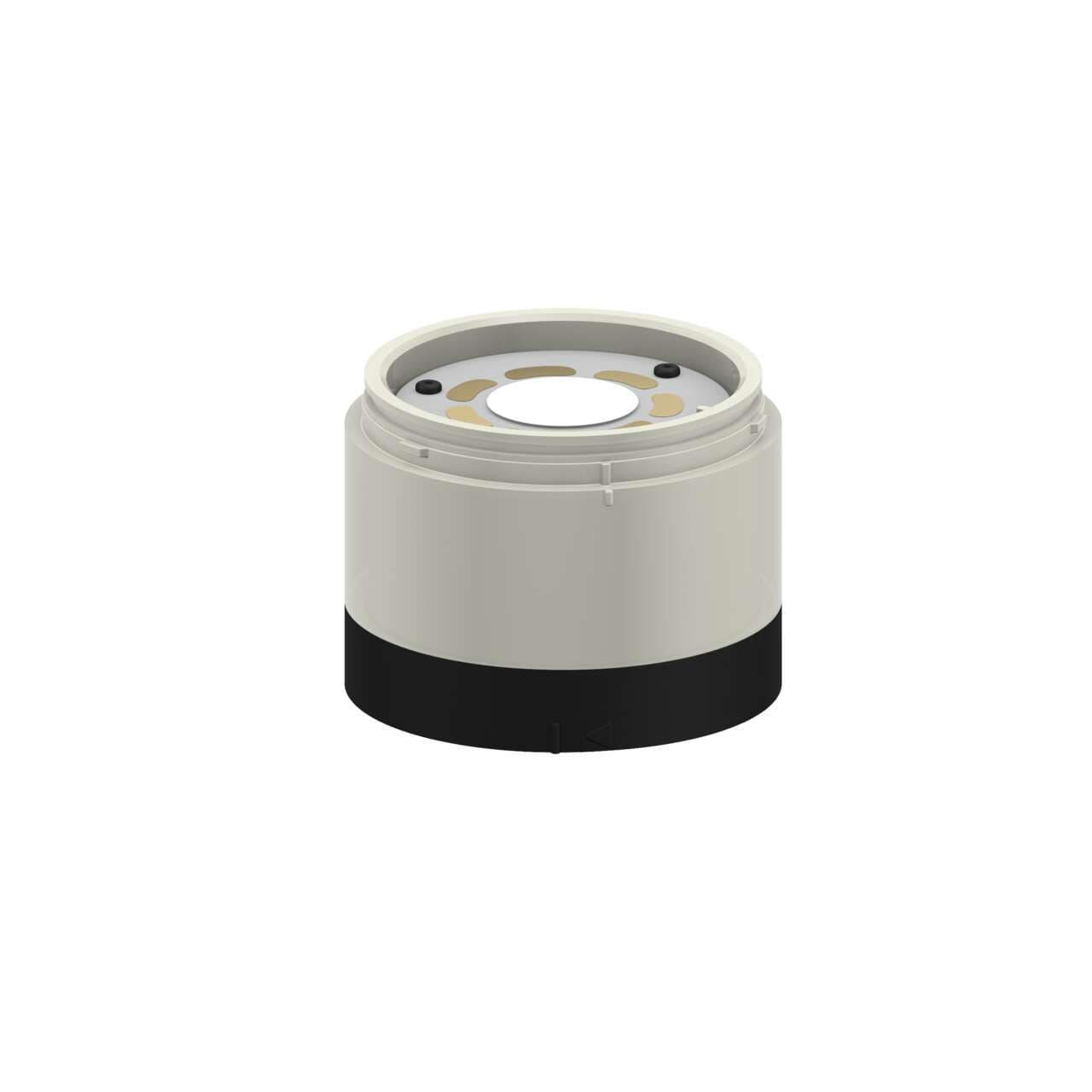

Banner Engineering SG-TL70-Y is a light unit from the Modular series, designed with a 1-color yellow LED illumination suitable for tow light module applications. It features polycarbonate (PC) windows and segments, along with a polycarbonate (PC) base, ensuring durability. The unit has a cylindrical shape with a diameter of 70mm / 2-3/4" and comes in a black housing. It operates on a supply voltage range of 12Vdc-30Vdc, with a nominal 24Vdc, and has a current consumption of 420mA. The SG-TL70-Y is designed to function in ambient air temperatures ranging from -40°C to +50°C and is rated with a degree of protection of IP65, indicating a high level of protection against dust and water ingress.
Related documents SG-TL70-Y Specs
