SG-TL70-R Banner Signal Towers

Name: SG-TL70-R
Brand: Banner
Price: 88.56 USD
Availability: InStock

Banner SG-TL70-R TL70 Light Module; Color: Red; Voltage: 12-30 V dc; Environmental Rating: IP65; Steady On/Flashing; Black Housing

Part#:SG-TL70-R

Manufacturer:Banner

Alt. Part#:92213

Product Lifecycle:Active

In-stock parts: 24

Jun 18, 2025

TL70 Light Module; Color: Red; Voltage: 12-30 V dc; Environmental Rating: IP65; Steady On/Flashing; Black Housing

About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SG-TL70-R Banner price in the box on the right side or send a quick quote.

Product Details

Weight90.7184 g
Country Of OriginMX
Number of Colors / Segments
1
Max Current Color (mA)
420
Feature: Hazardous Area
No
Power Source
DC or AC
Storage Temp (°C)
-40 to 70
Housing Style
Segment - Light
Color Option 1
Red
Min Op. Temperature (°C)
-40
Primary Housing Material
Polycarbonate
Power
DC or AC
IO Link
No
Indication
Yes
Lumens Color 1
40.0
Primary Window Material
Polycarbonate Diffused
Color Technology
Standard LED
Color 1 - Wavelength/Color Temp/Coordinates
625 nm
Feature: Audible
No
Mounting Thread
No Thread

Environmental Rating

IP65

Wireless

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Animation Option 1

Dip-Switch Controlled

Modbus RTU

Max Op. Relative Humidity Non-Condensing (%)

95% @ 50°C

Feature: Chemical Resistant

Pro-Editor Compatible (Discrete)

Max Op. Temperature (°C)

Primary Housing Color

Black

Product Size (mm)

Physical Dimensions (LxWxH or DxH mm)

70.0 x 50.0

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

SG-TL70-R Description

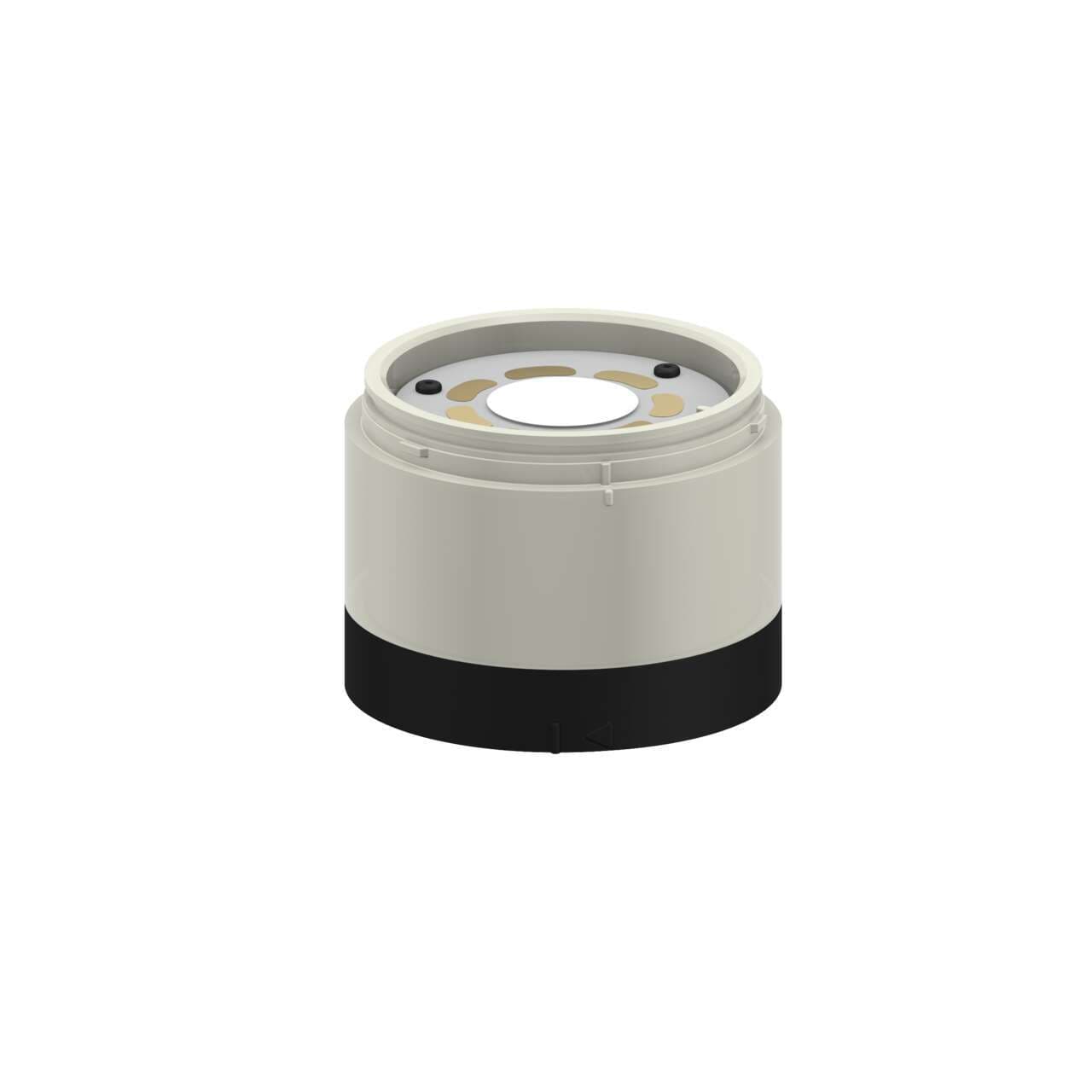

Banner Engineering SG-TL70-R is a light unit from the Modular series, featuring 1-color Red LED illumination designed for tow light module applications. It is constructed with polycarbonate (PC) windows and segments, along with a polycarbonate (PC) base, ensuring durability. The unit has a cylindrical shape with a diameter of 70mm / 2-3/4" and comes in a black housing. It operates on a supply voltage range of 12Vdc-30Vdc, with a nominal voltage of 24Vdc, and has a current consumption of 420mA. The SG-TL70-R is designed to function in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP65, making it suitable for a variety of industrial environments.
