SG-TL70-A Banner Signal Towers

Name: SG-TL70-A
Brand: Banner
Price: 88.56 USD
Availability: InStock

Banner SG-TL70-A TL70 Audible Module; Standard; Voltage: 12-30 V dc; Environmental Rating: IP65; Adjustable to 98 dB, 4 Tones; Black Housing

Part#:SG-TL70-A

Manufacturer:Banner

Alt. Part#:92221

Product Lifecycle:Active

In-stock parts: 33

Jun 19, 2025

TL70 Audible Module; Standard; Voltage: 12-30 V dc; Environmental Rating: IP65; Adjustable to 98 dB, 4 Tones; Black Housing

About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SG-TL70-A Banner price in the box on the right side or send a quick quote.

Product Details

Weight140.61352 g
Country Of OriginMX
Modbus RTU
No
Primary Window Material
Polycarbonate Diffused
Power
DC or AC
Max Audible Intensity (db at 1m)
92
Storage Temp (°C)
-40 to 70
Primary Housing Material
Polycarbonate
Product Size (mm)
70
Max Current - Audible Alarm (mA)
30
Primary Housing Color
Black
Indication
Yes
Audible Alarm Type
Multitone
Max Op. Temperature (°C)
50
Pro-Editor Compatible (Discrete)
No
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Audible Operating Frequency (kHz)
2.6
Feature: Hazardous Area
No
IO Link
No
Power Source
DC or AC

Non-Illuminated

Yes

Physical Dimensions (LxWxH or DxH mm)

70.0 x 72.0

Feature: Audible

Yes

Number of Colors / Segments

Environmental Rating

IP65

Max Op. Relative Humidity Non-Condensing (%)

95% @ 50°C

Mounting Thread

No Thread

Min Audible Intensity (db at 1m)

Feature: Chemical Resistant

Housing Style

Segment - Audible

Color Technology

Standard LED

Min Op. Temperature (°C)

-40

Wireless

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

SG-TL70-A Description

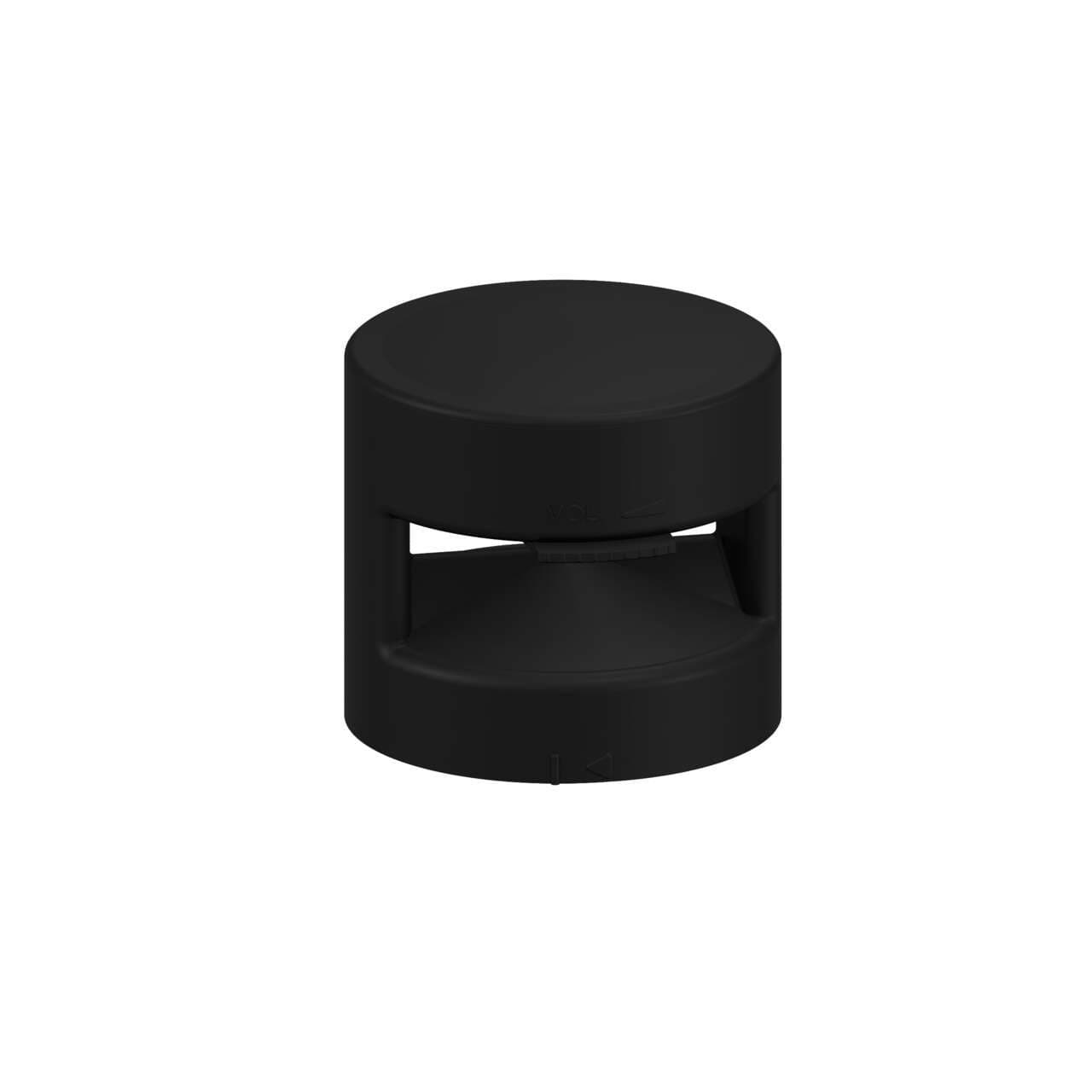

Banner Engineering SG-TL70-A is a buzzer unit from the Modular series, featuring a multitone 1-tier design. This audible module comes with a black polycarbonate housing, ensuring durability. It has a cylindrical shape with a diameter of 70mm / 2-3/4". The SG-TL70-A operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. It is designed to function in ambient air temperatures ranging from -40°C to +50°C. Additionally, this unit is rated with a degree of protection of IP65, indicating its capability to withstand dust ingress and low-pressure water jets from any direction.
