SG-TL70-O-L Banner Signal Towers
Part#:SG-TL70-O-L
Manufacturer:Banner
Alt. Part#:801247
Product Lifecycle:Active
Get a quick Quote!
TL70 Light Module; Color: Orange; Voltage: 12-30 V dc; Environmental Rating: IP65; Steady On/Flashing; Black Housing; Laser Etched ORANGE 5 mm Height
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SG-TL70-O-L Banner price in the box on the right side or send a quick quote.
Product Details
- Weight90.7184 g
- Country Of OriginMX
- Power Source DC or AC
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Physical Dimensions (LxWxH or DxH mm) 70.0 x 50.0
- Primary Housing Material Polycarbonate
- Environmental Rating IP65
- Multi-Color Device Single Color On
- Cable Length (m) 2
- Color Option 1 Orange
- Primary Window Material Polycarbonate Diffused
- Modbus RTU No
- Color 1 - Wavelength/Color Temp/Coordinates 0.66, 0.33
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Technology Standard LED
- Feature: Hazardous Area No
- Number of Colors / Segments 1
- Power DC or AC
- Min Op. Temperature (°C) -40
- Feature: Chemical Resistant No
- Mounting Thread No Thread
- Max Current Color (mA) 420
- Housing Style Segment - Light
- Animation Option 1 Dip-Switch Controlled
- Max Op. Temperature (°C) 50
- IO Link No
- Product Size (mm) 70
- Primary Housing Color Black
- Indication Yes
- Lumens Color 1 33.0
- Feature: Audible No
- Feature: Quick Disconnect No
- Pro-Editor Compatible (Discrete) No
- Wireless No
- Storage Temp (°C) -40 to 70
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SG-TL70-O-L Description

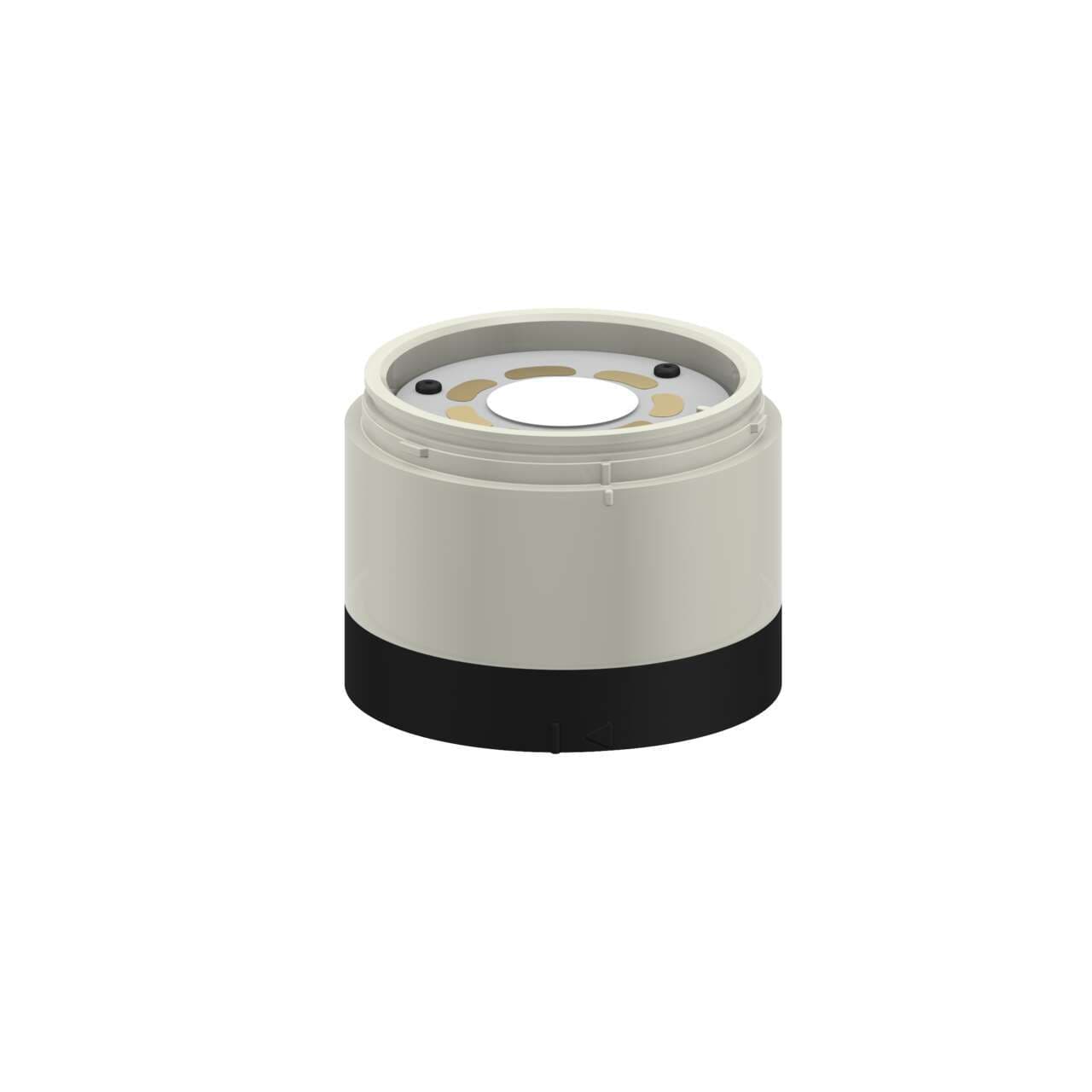

Banner Engineering SG-TL70-O-L is a light unit within the Modular series, featuring 1-color Orange LED illumination designed for tow light module applications. It is constructed with Polycarbonate (PC) windows and segments, along with a Polycarbonate (PC) base, ensuring durability. This unit has a cylindrical shape with a diameter of 70mm / 2-3/4" and comes in a black housing. It operates on a supply voltage range of 12Vdc-30Vdc, with a nominal voltage of 24Vdc, and has a current consumption of 420mA. The SG-TL70-O-L is designed to function in ambient air temperatures ranging from -40°C to +50°C and is rated with a degree of protection of IP65, indicating a high level of protection against dust and water ingress.
