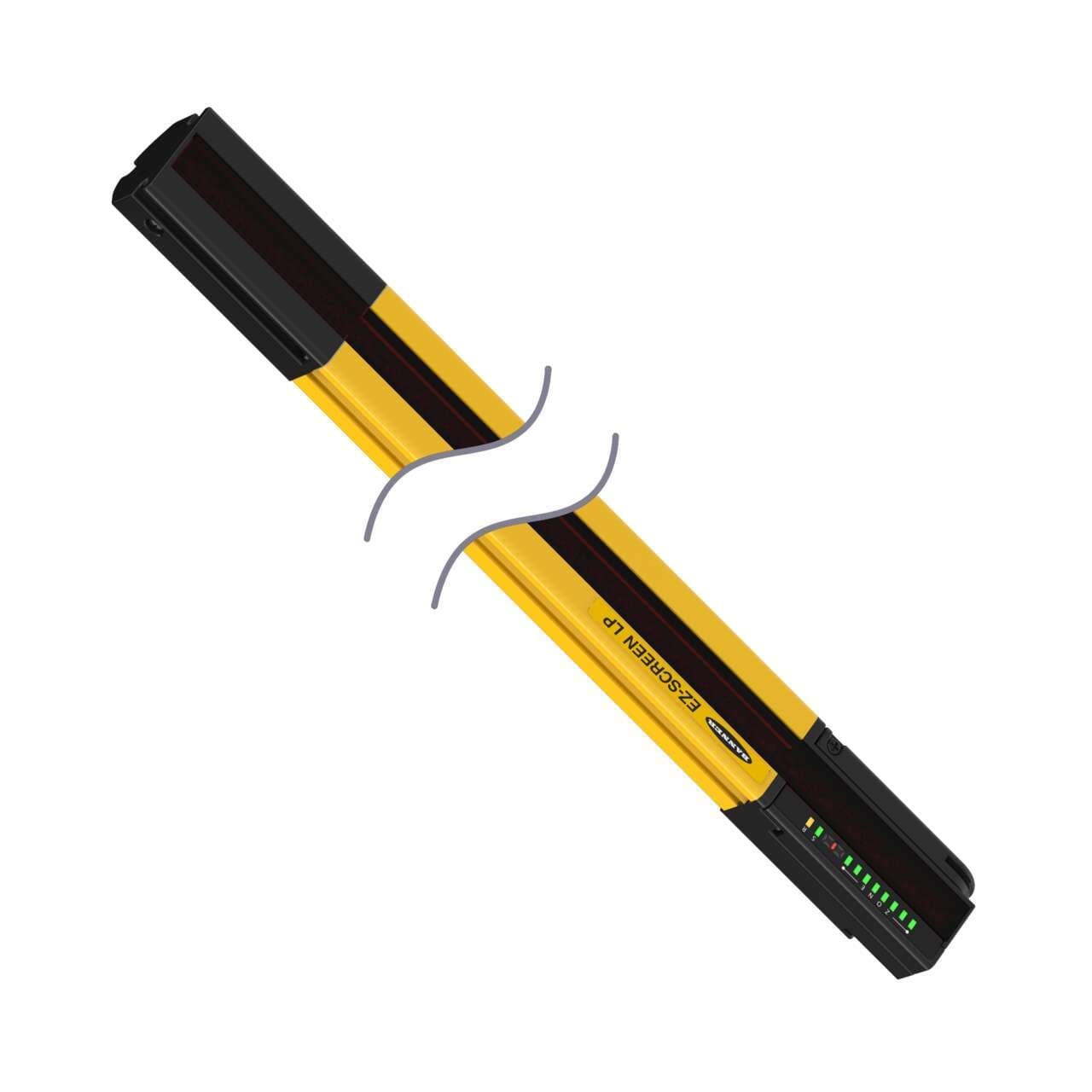

SLPMR14-410P12 Banner Safety Light Curtains
Part#:SLPMR14-410P12
Manufacturer:Banner
Alt. Part#:84453
Product Lifecycle:Active
Get a quick Quote!
SLPMR14-410P12 EZ-SCREEN Low Profile Muting Receiver; Res.: 14 mm Response (Tr): 13.5 ms; Beams: 41; Range: 0.1-7 m (4 in - 23 ft); Height: 410 mm (16.1 in); 300 mm 12-pin M12 Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLPMR14-410P12 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight1632.9312 g
- Country Of OriginUS
- Housing Finish Yellow Polyester
- Recovery Time 33-220 / 109-800
- Scan Code Selectable
- Trip/Latch Output Selectable
- Primary Housing Material Aluminum
- PL Rating Ple
- Shock 10g at 16ms (6000 cycles)
- Test Input No
- External Monitoring Device 1 or 2 Channel
- IP Rating IP65
- Response Time 13.5
- Housing Material Aluminum; Zinc; Acrylic
- Feature: Integral Muting Yes
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Dimensions WxD (mm) 28 x 26
- Reduced Resolution Yes
- System Type Receiver
- Connector Type M12 Pigtail (Yellow)
- Operating Voltage 24 V dc +/- 15%
- Short Protection Yes
- Fault Output Yes
- Defined Area Height (mm) 410
- Operating Distance (m) 0.1 - 7
- Electrical Safety Class III
- OSSD Rating 24 V dc at 0.5 A each
- Safety Level Type 4
- Operating Temperature 0 to +55 deg. C; RH 95%
- Vibration 10-55 Hz at 0.35 mm
- Feature: End-to-End Sensing Yes
- low-profile Yes
- Fixed Blanking Yes
- Resolution (mm) 14
- Auxiliary Output Yes
- Overall Length (mm) 410
- Number of Pins (Receiver/Emitter) 12
- SIL Rating SIL3; CL3
- Supply Current 150 mA max.
- Feature: ESD Safe No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SLPMR14-410P12 Description
Banner Engineering SLPMR14-410P12 is a safety light curtain from the LP Low-Profile series featuring an integrated muting function. This part is designed with a safety light curtain receiver that includes a red/green LED for status indication, an amber LED for reset indication, and a red/green LED for zone indication. It is constructed with an aluminium housing, acrylic lens, and rugged die-cast zinc end caps. The SLPMR14-410P12 is pre-wired with a 300mm pigtail that terminates with a 12-pin Euro-style M12 connector. It has a protective height of 410mm and comes in a yellow housing. The supply voltage required is 24Vdc, and it operates within an ambient air temperature range of 0 to +55°C. This part offers an IP65 degree of protection and has dimensions of 28mm in width, 410mm in height, and 26mm in depth. The beam spacing/pitch is 14mm, suitable for finger detection. It features 2 x digital outputs (24Vdc; sourcing; redundant OSSD solid-state outputs; 500mA), 1 x digital output (24Vdc 250mA; PNP transistor) for OSSD/Fault, and 1 x digital output (PNP transistor) for the mute lamp. The sensing distance ranges from 10cm to 7m. Additionally, it includes 1 x digital input (10-30Vdc) for EDM input and 1 x digital input (10-30Vdc) for RESET input, with a response time of 13.5ms / 0.0135 s.
Related documents SLPMR14-410P12 Specs
1-year warranty
