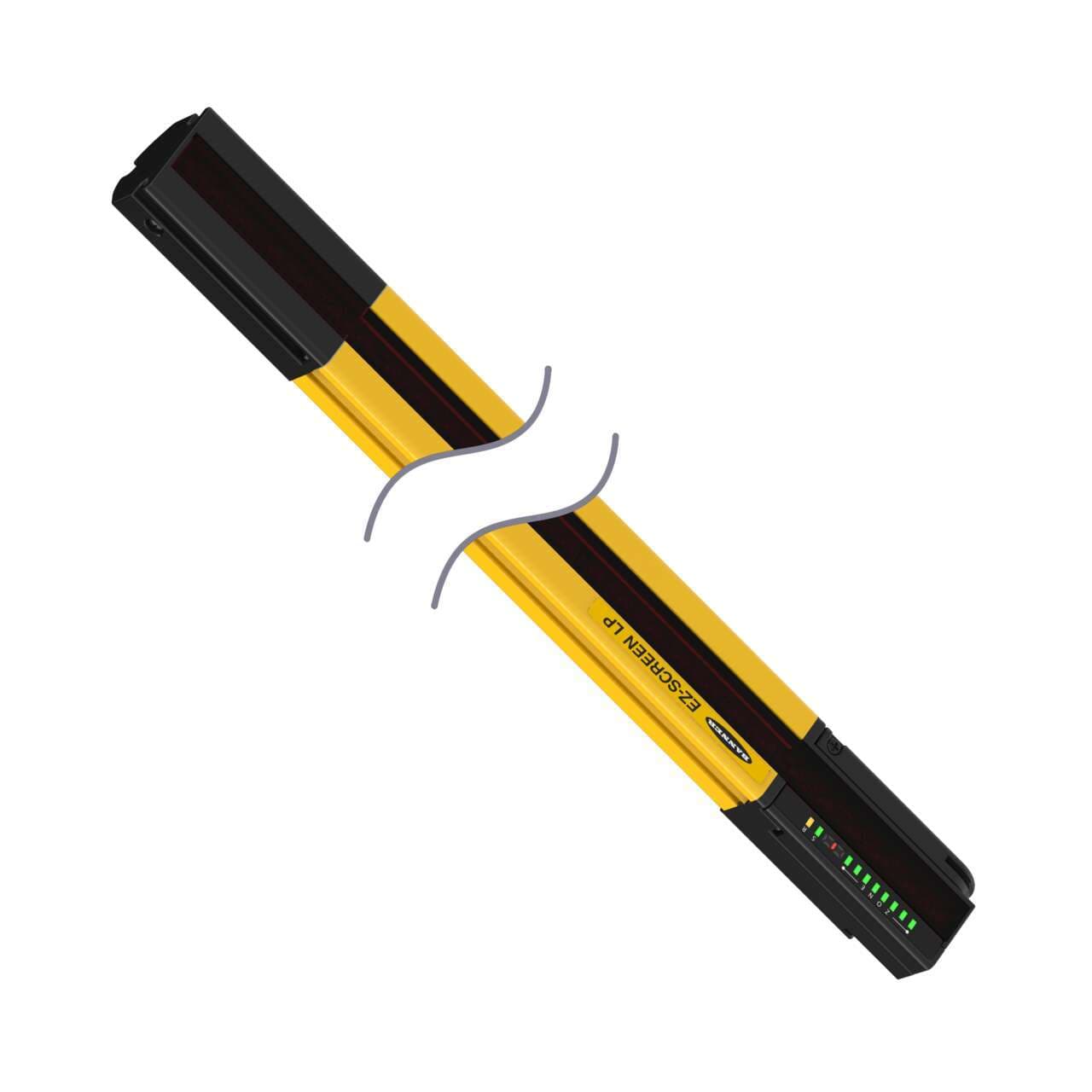

SLPMR25-970P12 Banner Safety Light Curtains
Part#:SLPMR25-970P12
Manufacturer:Banner
Alt. Part#:84501
Product Lifecycle:Active
Get a quick Quote!
SLPMR25-970P12 EZ-SCREEN Low Profile Muting Receiver; Res.: 25 mm Response (Tr): 15.5 ms; Beams: 49; Range: 0.1-7 m (4 in - 23 ft); Height: 970 mm (38.2 in); 300 mm 12-pin M12 Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLPMR25-970P12 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight1406.1352 g
- Country Of OriginUS
- Primary Housing Material Aluminum
- IP Rating IP65
- Response Time 15.5
- Vibration 10-55 Hz at 0.35 mm
- Feature: End-to-End Sensing Yes
- Overall Length (mm) 970
- Housing Finish Yellow Polyester
- Reduced Resolution Yes
- Operating Voltage 24 V dc +/- 15%
- Electrical Safety Class III
- Supply Current 150 mA max.
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Operating Temperature 0 to +55 deg. C; RH 95%
- Auxiliary Output Yes
- Test Input No
- low-profile Yes
- External Monitoring Device 1 or 2 Channel
- Scan Code Selectable
- Trip/Latch Output Selectable
- Safety Level Type 4
- PL Rating Ple
- Shock 10g at 16ms (6000 cycles)
- Feature: ESD Safe No
- Defined Area Height (mm) 970
- Fixed Blanking Yes
- Recovery Time 25-152 / 81-495
- Fault Output Yes
- Connector Type M12 Pigtail (Yellow)
- Number of Pins (Receiver/Emitter) 12
- Resolution (mm) 25
- Short Protection Yes
- Dimensions WxD (mm) 28 x 26
- Operating Distance (m) 0.1 - 7
- SIL Rating SIL3; CL3
- System Type Receiver
- Housing Material Aluminum; Zinc; Acrylic
- OSSD Rating 24 V dc at 0.5 A each
- Feature: Integral Muting Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SLPMR25-970P12 Description
Banner Engineering SLPMR25-970P12 is a safety light curtain from the LP Low-Profile series, designed with an integrated muting function. This receiver unit features an aluminium housing with an acrylic lens and die-cast zinc end caps. It is pre-wired with a 300mm pigtail that terminates with a 12-pin Euro-style M12 connector. The protective height of this unit is 970mm, and it comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The SLPMR25-970P12 offers an IP65 degree of protection and has dimensions of 28mm in width, 969mm in height, and 26mm in depth. It is designed with a 25mm beam spacing/pitch for hand detection and offers a sensing distance of 10cm to 7m. The unit includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), 1 x digital output (24Vdc; 250mA; PNP transistor) for OSSD/FAULT, and 1 x digital output (PNP transistor) for a mute lamp. Additionally, it features 1 x digital input (10-30Vdc) for EDM input and 1 x digital input (10-30Vdc) for RESET input, with a response time of 15.5ms / 0.0155 s.
Related documents SLPMR25-970P12 Specs
