SLPMR25-690P12 Banner Electronic Components
Part#:SLPMR25-690P12
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

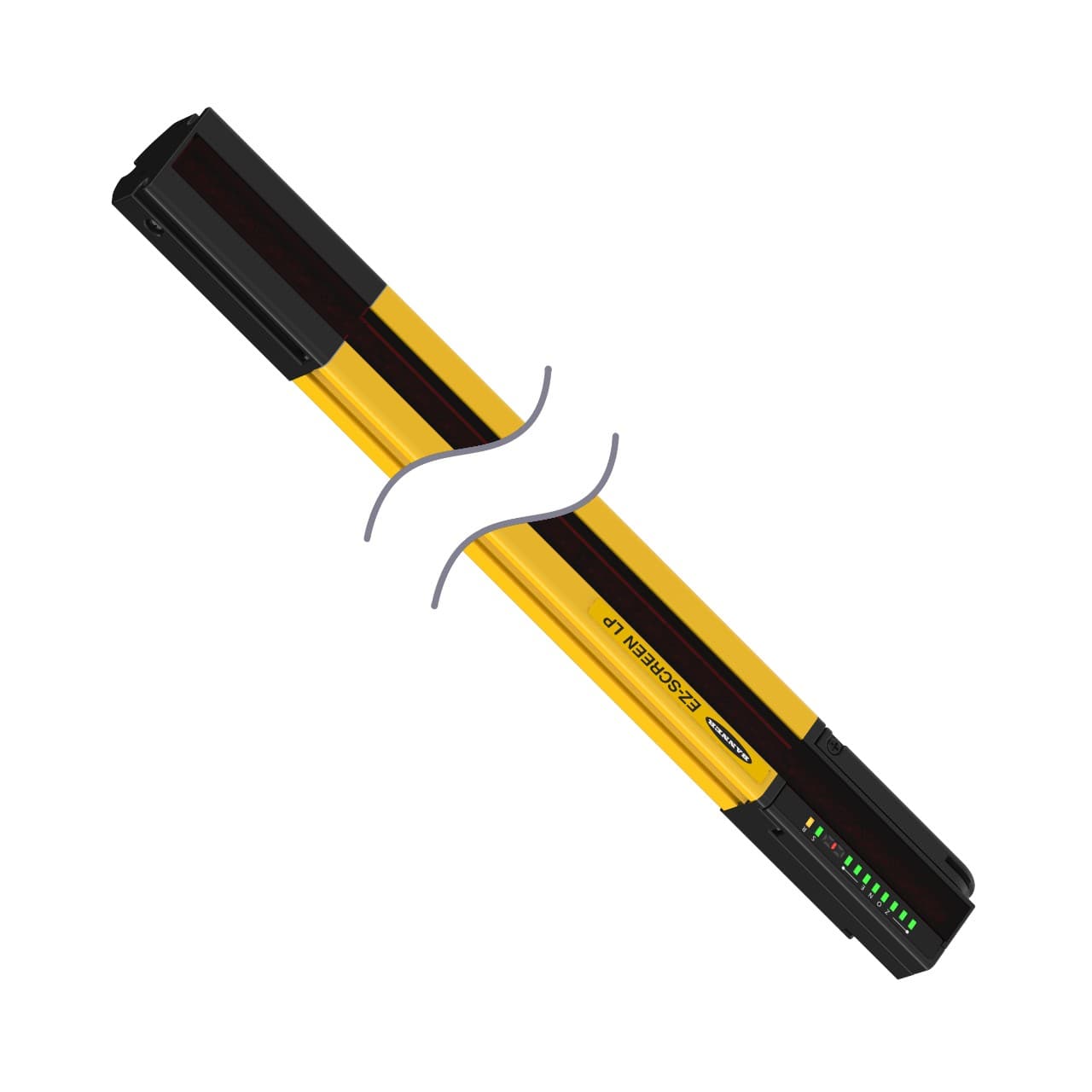

SLPMR25-690P12 EZ-SCREEN Low Profile Muting Receiver, Res.: 25 mm Response (Tr): 12.5 ms; Beams: 35, Rng: 0.1 to 7 m (4 in - 23 ft); ht. 690 mm (27.1 in), Connection: 300 mm pigtail; Euro M12 12-pin QD
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLPMR25-690P12 Banner price in the box on the right side or send a quick quote.
Product Details
- Effective Aperture Angle Type 4 Per IEC 61496-2
- External Monitoring Device 1 or 2 Channel
- Reduced Resolution Yes
- IP Rating IP65
- Short Protection Yes
- System Type Receiver
- Feature: ESD Safe No
- Fixed Blanking Yes
- Primary Housing Material Aluminum
- Operating Temperature 0 to +55 deg. C; RH 95%
- Vibration 10-55 Hz at 0.35 mm
- Overall Length (mm) 690
- low-profile Yes
- PL Rating Ple
- Auxiliary Output Yes
- Housing Finish Yellow Polyester
- Shock 10g at 16ms (6000 cycles)
- Trip/Latch Output Selectable
- Defined Area Height (mm) 690
- Operating Voltage 24 V dc +/- 15%
- Electrical Safety Class III
- OSSD Rating 24 V dc at 0.5 A each
- Connector Type M12 Pigtail (Yellow)
- Number of Pins (Receiver/Emitter) 12
- Scan Code Selectable
- Safety Level Type 4
- Operating Distance (m) 0.1 - 7
- Resolution (mm) 25
- Dimensions WxD (mm) 28 x 26
- SIL Rating SIL3; CL3
- Housing Material Aluminum; Zinc; Acrylic
- Recovery Time 25-152 / 81-495
- Response Time 12.5
- Feature: End-to-End Sensing Yes
- Fault Output Yes
- Test Input No
- Feature: Integral Muting Yes
- Supply Current 150 mA max.
