SLPMP14-1250 Banner Safety Light Curtains
Part#:SLPMP14-1250
Manufacturer:Banner
Alt. Part#:84492
Product Lifecycle:Active
Get a quick Quote!
EZ-SCREEN Low Profile Muting Pair; Res.: 14 mm Response (Tr): 31.5 ms; Beams: 125; Rng: 0.1-7 m (4 in - 23 ft); ht. 1250 mm (49.2 in); Integral RD
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLPMP14-1250 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight3719.4544 g
- Country Of OriginUS
- Overall Length (mm) 1250
- Reduced Resolution Yes
- Resolution (mm) 14
- Feature: End-to-End Sensing Yes
- Defined Area Height (mm) 1250
- IP Rating IP65
- Short Protection Yes
- Supply Current 210 mA max.
- Primary Housing Material Aluminum
- Recovery Time 33-220 / 109-800
- Response Time 31.5
- Feature: ESD Safe No
- Operating Voltage 24 V dc +/- 15%
- Electrical Safety Class III
- Trip/Latch Output Selectable
- Fixed Blanking Yes
- Operating Temperature 0 to +55 deg. C; RH 95%
- Connector Type Removable Disconnect
- Auxiliary Output Yes
- Vibration 10-55 Hz at 0.35 mm
- Dimensions WxD (mm) 28 x 26
- Operating Distance (m) 0.1 - 7
- SIL Rating SIL3; CL3
- OSSD Rating 24 V dc at 0.5 A each
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Housing Finish Yellow Polyester
- Housing Material Aluminum; Zinc; Acrylic
- System Type Emitter/Receiver Pair
- External Monitoring Device 1 or 2 Channel
- PL Rating Ple
- Scan Code Selectable
- Test Input Yes
- Safety Level Type 4
- low-profile Yes
- Shock 10g at 16ms (6000 cycles)
- Fault Output Yes
- Feature: Integral Muting Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SLPMP14-1250 Description

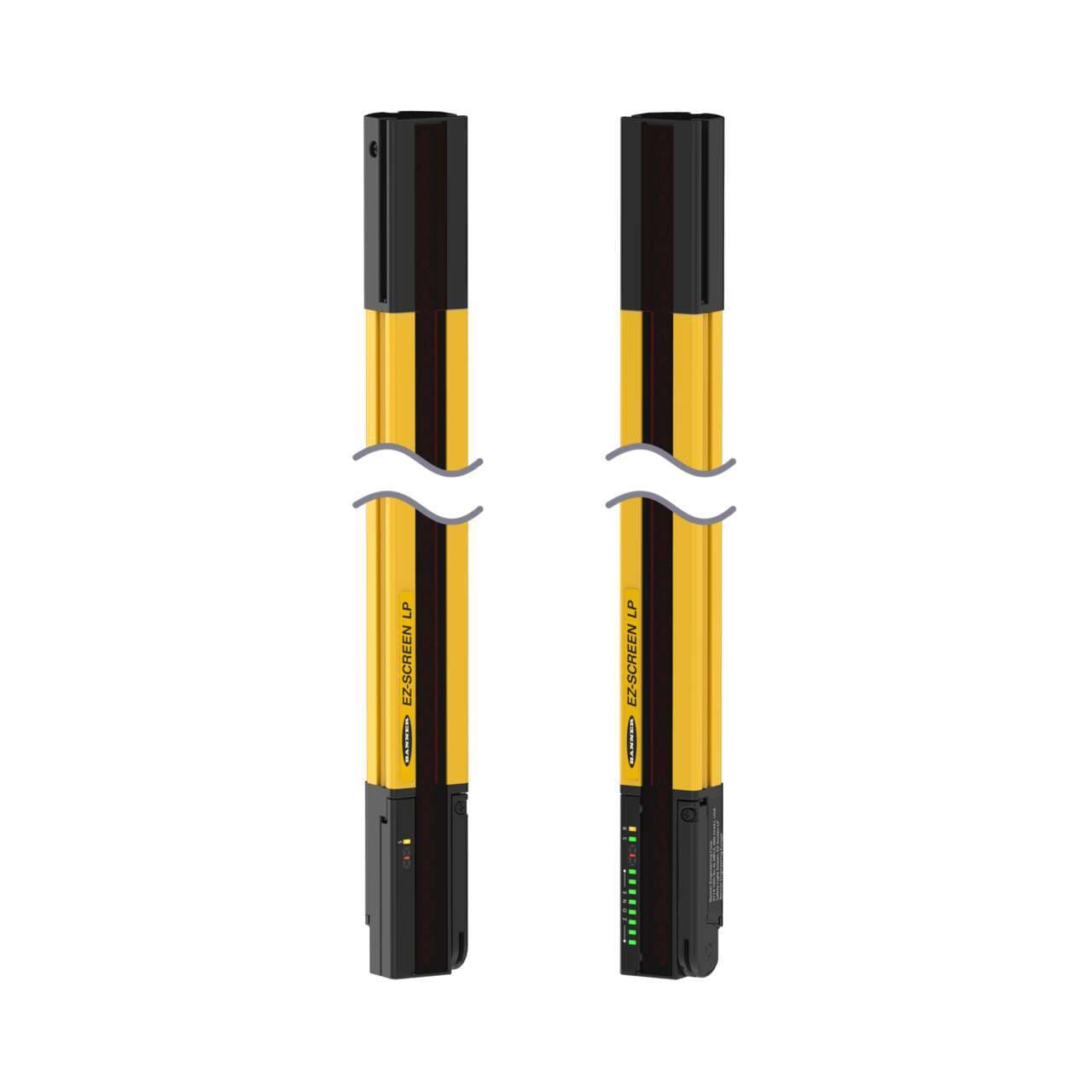

Banner Engineering SLPMP14-1250, part of the LP Low-Profile series, is a safety light curtain designed with an integrated muting function. This unit, consisting of an emitter and receiver pair, features an aluminium housing with acrylic lens and die-cast zinc end caps. It offers a protective height of 1250mm and comes in a yellow housing. The connection type is an Integral Removable Disconnect (RD), and it operates on a 24Vdc supply voltage. Suitable for ambient air temperatures ranging from 0 to +55°C, it boasts an IP65 degree of protection. The dimensions include a net width of 28mm, a net height of 1248mm, and a net depth of 26mm. With a 14mm beam spacing/pitch, it provides finger detection resolution. The device includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), 1 x digital output (24Vdc; 250mA; PNP transistor) for OSSD/FAULT, and 1 x digital output (PNP transistor) for a mute lamp. Additionally, it features 1 x digital input (10-30Vdc) for EDM input and 1 x digital input (10-30Vdc) for RESET input. The sensing distance ranges from 10cm to 7m, and it has a response time of 31.5ms.
Related documents SLPMP14-1250 Specs
