SLPMP14-550P128 Banner Safety Light Curtains
Part#:SLPMP14-550P128
Manufacturer:Banner
Alt. Part#:84476
Product Lifecycle:Active
Get a quick Quote!
EZ-SCREEN Low Profile Muting Pair; Res.: 14 mm Response (Tr): 16.5 ms; Beams: 55; Range: 0.1-7 m (4 in - 23 ft); ht. 550 mm (21.7 in); 300 mm 12-pin M12 Pigtail QD (R) 8-pin (E)
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLPMP14-550P128 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight2449.3968 g
- Country Of OriginUS
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Reduced Resolution Yes
- Scan Code Selectable
- System Type Emitter/Receiver Pair
- Fixed Blanking Yes
- Number of Pins (Receiver/Emitter) 12,8
- Short Protection Yes
- Supply Current 210 mA max.
- Safety Level Type 4
- PL Rating Ple
- Electrical Safety Class III
- Trip/Latch Output Selectable
- External Monitoring Device 1 or 2 Channel
- Operating Distance (m) 0.1 - 7
- Shock 10g at 16ms (6000 cycles)
- Test Input Yes
- low-profile Yes
- Primary Housing Material Aluminum
- Response Time 16.5
- Auxiliary Output Yes
- Feature: Integral Muting Yes
- Overall Length (mm) 550
- IP Rating IP65
- SIL Rating SIL3; CL3
- OSSD Rating 24 V dc at 0.5 A each
- Dimensions WxD (mm) 28 x 26
- Housing Finish Yellow Polyester
- Resolution (mm) 14
- Housing Material Aluminum; Zinc; Acrylic
- Feature: ESD Safe No
- Operating Voltage 24 V dc +/- 15%
- Connector Type M12 Pigtail (Yellow)
- Vibration 10-55 Hz at 0.35 mm
- Feature: End-to-End Sensing Yes
- Defined Area Height (mm) 550
- Operating Temperature 0 to +55 deg. C; RH 95%
- Recovery Time 33-220 / 109-800
- Fault Output Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SLPMP14-550P128 Description

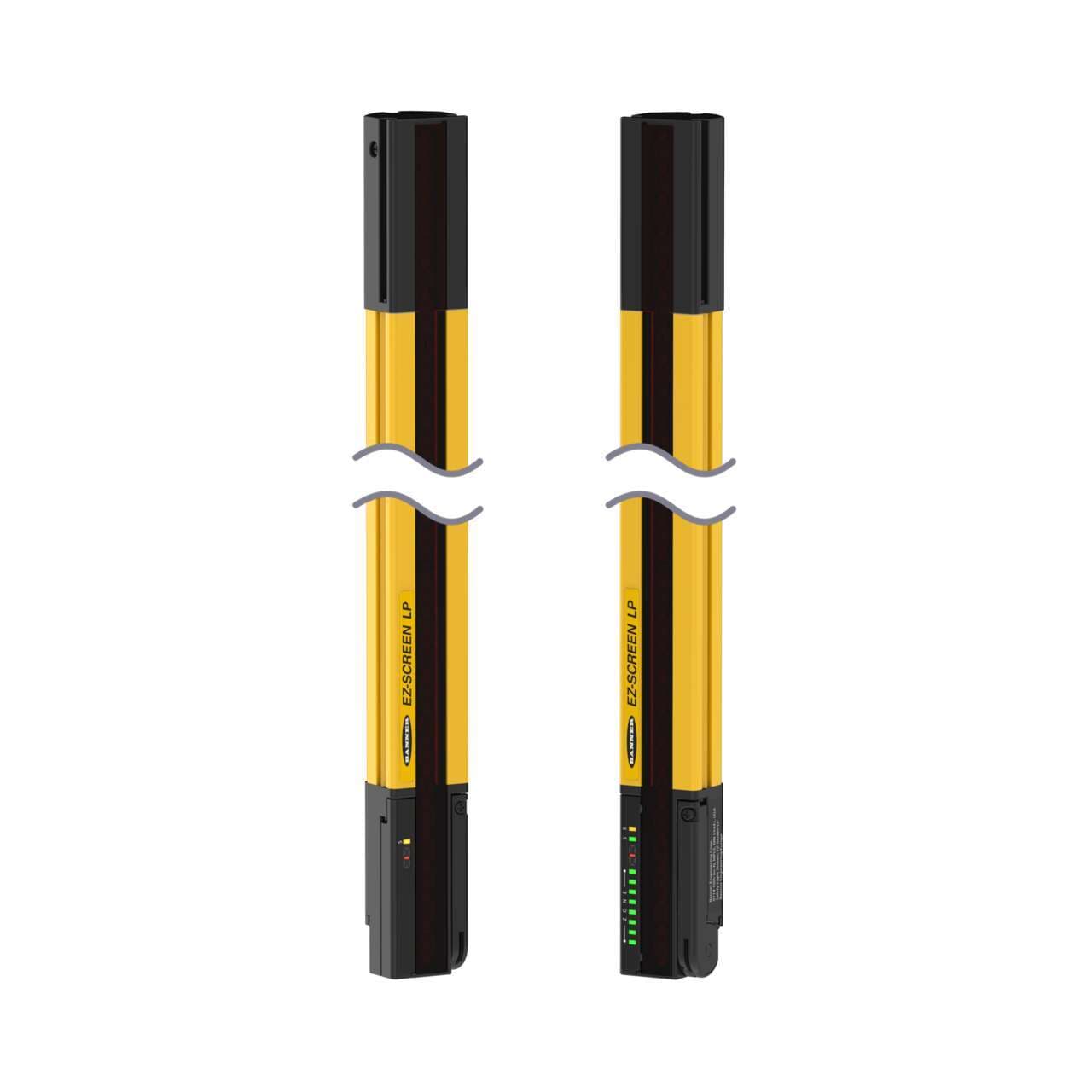

Banner Engineering SLPMP14-550P128 is a safety light curtain from the LP Low-Profile series featuring an integrated muting function. This product consists of an emitter and receiver pair housed in aluminum with acrylic lenses and die-cast zinc end caps. It is pre-wired with a 300mm pigtail, terminating in an 8-pin Euro-style M12 connector for the emitter and a 12-pin Euro-style M12 connector for the receiver. The safety light curtain offers a protective height of 550mm and comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The device is IP65 rated, indicating protection against dust ingress and low-pressure water jets. The net dimensions are 28mm in width, 549mm in height, and 26mm in depth. It features a 14mm beam spacing/pitch for finger detection, a sensing distance ranging from 10cm to 7m, and a response time of 16.5ms. The safety light curtain includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; 250mA; PNP transistor) for OSSD/FAULT, one digital output (PNP transistor) for the mute lamp, one digital input (10-30Vdc) for EDM input, and one digital input (10-30Vdc) for RESET input.
Related documents SLPMP14-550P128 Specs
