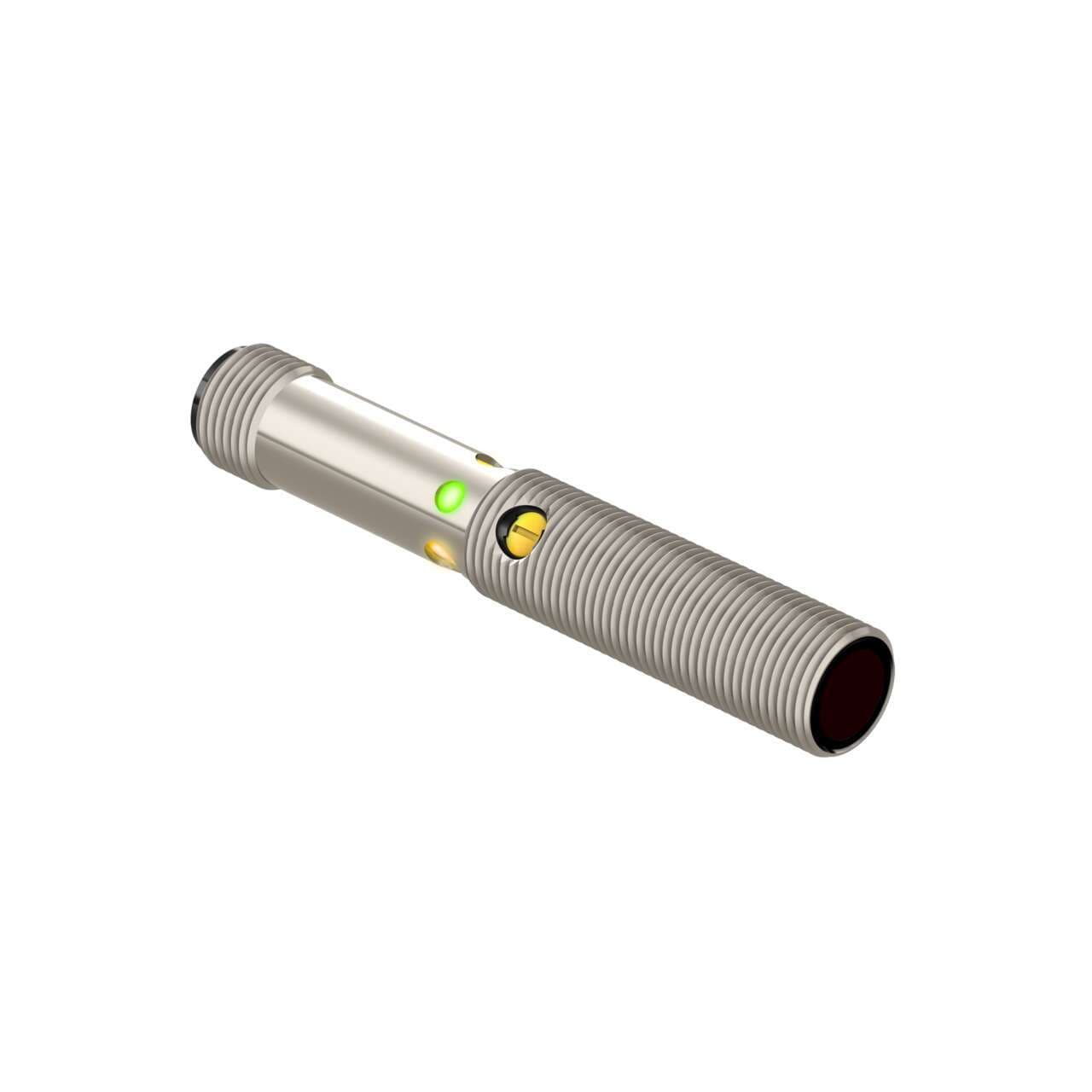

M12PRQ8 Banner Proximity Sensors
Part#:M12PRQ8
Manufacturer:Banner
Alt. Part#:77199
Product Lifecycle:Active
Get a quick Quote!
M12 Series: Receiver; Range: 5 m; Input 10-30 V dc; Output: Complementary Solid-State PNP; M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the M12PRQ8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight18.14368 g
- Country Of OriginUS
- Main function Sensor (Photo-electric)
- Design through-beam system / opposed mode
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Compliant with standard(s) CE
- Primary brand Banner Engineering
- Light Color Visible red
- Operating mode Light-ON Dark-ON
- Material Nickel-plated brass housing PMMA lns.
- Response time 0.625ms / 0.000625 s
- Thread size M12
- Digital outputs 1 x digital output (PNP transistor)
- Ambient air temperature for operation -20...+60 °C
- Order code / Manufacturer SKU 77199
- Functions Photo-electric sensor receiver green LED (power ON) amber LED (light sensed) potentiometer adjustment
- Shape Cylindrical threaded/barrel
- Sub-range name M12
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Degree of protection IP67 IP68 NEMA 5 NEMA 6
- Product series / family name M12 barrel series
- Wavelength 660 nm
- Sensing distance 5m
- Outputs PNP
- Special Feature: Intrinsically Safe No
- Sensing Mode (Detailed) Receiver
- Quick Disconnect Type M12 (Euro)
- Delay at Power-up (ms) 100
- Barrel Diameter (mm) 12
- Primary Housing Material Nickel-Plated Brass
- Max Op. Temp. (°C) 60
- Number of Pins 4
- Feature: Washdown Rated Yes
- Opposed Mode Emitter/Receiver Receiver
- Housing Style Barrel
- Special Feature: Water Detection No
- Adjustments Potentiometer
- Feature: Chemical Resistant No
- Sensing Mode (General) Opposed
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Hazardous Area No
- Input/Output Discrete
- Connection Integral QD
- Power DC
- Min Op. Temp. (°C) -20
- Repeatability (µs) 85
- Indicator LEDs
- IO Link No
- Max Sensing Distance (mm) 5000
- Operation Light/Dark Operate
- IP Rating IP67, IP68
- Feature: Timing (Hold/Delay) No
- Sensing Beam Visible Red LED
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Wavelength 660
- NEMA Rating NEMA 5, 6 and 1200 PSI Washdown
- Feature: Encapsulated Yes
- Lens Material PMMA
- DeviceNet No
- Feature: Audible No
- Output response time (ms) 0.625 ON/0.375 OFF
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
M12PRQ8 Description
Banner Engineering M12PRQ8 is a photo-electric sensor designed for precise detection tasks, belonging to the M12 series. This sensor operates as a receiver within a through-beam system, featuring opposed mode potentiometer adjustment for fine-tuning. It emits visible red light from a nickel-plated brass housing with a Polymethyl methacrylate (PMMA) lens, ensuring durability and clear signal transmission. The sensor is equipped with a 4-pin Euro-style M12 connector for straightforward integration into various systems. It accepts a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc, and operates efficiently at a wavelength of 660 nm. Designed to function in ambient air temperatures ranging from -20 to +60 degrees Celsius, it offers a high degree of protection with ratings of IP67, IP68, NEMA 5, and NEMA 6. The M12PRQ8 supports both Light-ON and Dark-ON operating modes, has an M12 thread size for easy mounting, and provides a sensing distance of up to 5 meters. It features a single digital output (PNP transistor; complementary NO/NC) and boasts a rapid response time of 0.625ms / 0.000625 s, catering to applications requiring quick and accurate detection.
Related documents M12PRQ8 Specs
