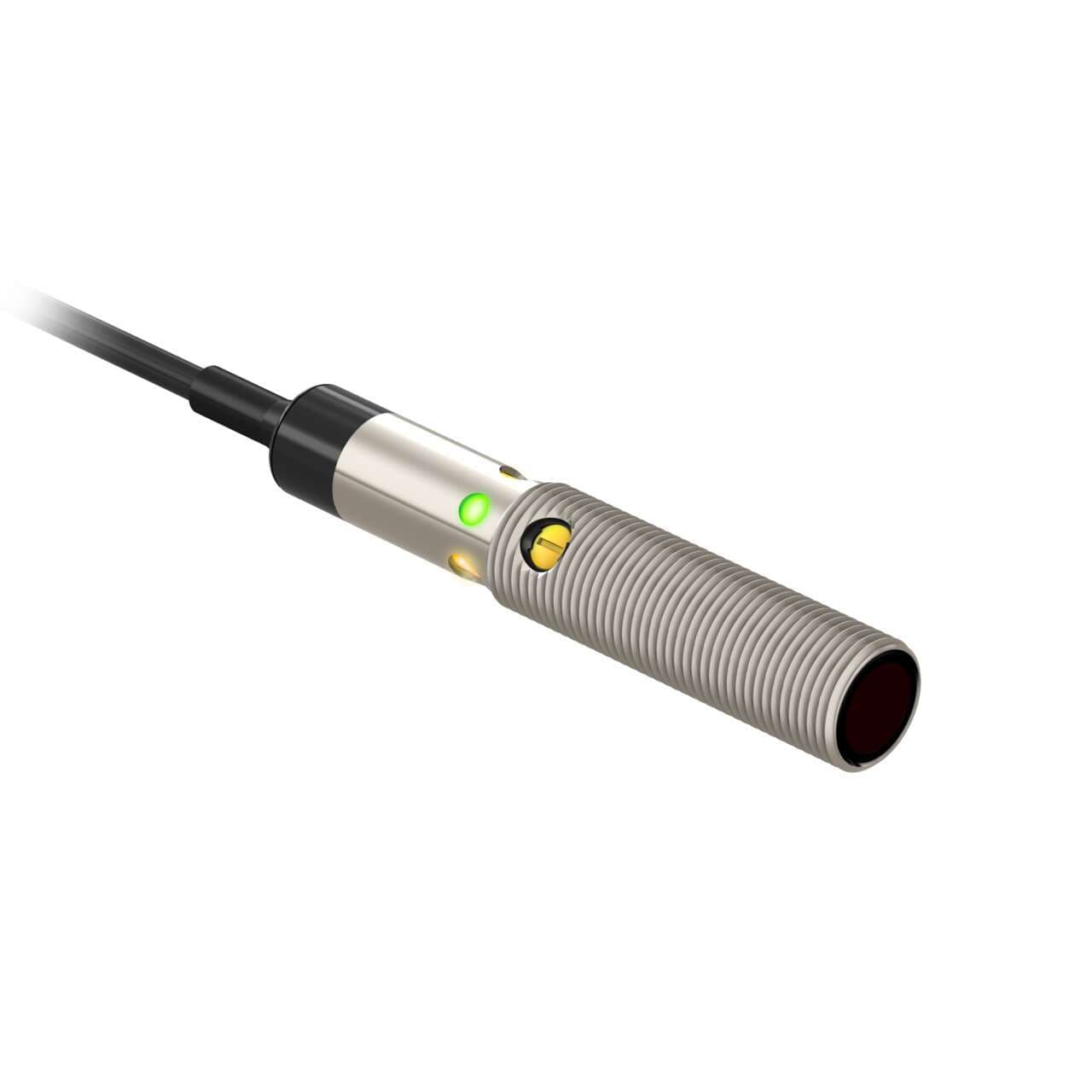

M12PLVQ5 Banner Proximity Sensors
Part#:M12PLVQ5
Manufacturer:Banner
Alt. Part#:78240
Product Lifecycle:Active
Get a quick Quote!
M12 Series: Retro (Red); Range: 2.5 m; Input 10-30 V dc; Output: Complementary Solid-State PNP; 150 mm (6 in) M12 Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the M12PLVQ5 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight42.637648 g
- Country Of OriginUS
- Sub-range name M12
- Design retro-reflective mode
- Sensing distance 2.5m
- Response time 0.5ms / 0.0005 s
- Order code / Manufacturer SKU 78240
- Main function Sensor (Photo-electric)
- Functions Photo-electric sensor green LED (power ON) amber LED (light sensed) potentiometer adjustment
- Shape Cylindrical threaded/barrel
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
- Compliant with standard(s) CE
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Wavelength 660 nm
- Thread size M12
- Ambient air temperature for operation -20...+60 °C
- Digital outputs 1 x digital output (PNP transistor)
- Degree of protection IP67 IP68 NEMA 5 NEMA 6
- Product series / family name M12 barrel series
- Light Color Visible red
- Operating mode Light-ON Dark-ON
- Material Nickel-plated brass housing PMMA lns.
- Sensing Mode (Detailed) Non-Polarized
- Quick Disconnect Type M12 (Euro)
- Sensing Beam Wavelength 660
- Indicator LEDs
- Power DC
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- NEMA Rating NEMA 5, 6 and 1200 PSI Washdown
- Feature: Chemical Resistant No
- Input/Output Discrete
- Max Op. Temp. (°C) 60
- Repeatability (µs) 95
- Feature: Encapsulated Yes
- Connection Pigtail QD
- Output response time (ms) 0.5
- Lens Material PMMA
- Feature: Timing (Hold/Delay) No
- Max Sensing Distance (mm) 2500
- Operation Light/Dark Operate
- IP Rating IP67, IP68
- Barrel Diameter (mm) 12
- Sensing Mode (General) Retroreflective
- Sensing Beam Visible Red LED
- Number of Pins 4
- Opposed Mode Emitter/Receiver N/A
- DeviceNet No
- Cable Length (m) 0.15
- Outputs PNP
- Special Feature: Water Detection No
- Feature: Washdown Rated Yes
- Feature: Audible No
- Primary Housing Material Nickel-Plated Brass
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Hazardous Area No
- Housing Style Barrel
- Min Op. Temp. (°C) -20
- Delay at Power-up (ms) 100
- Adjustments Potentiometer
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
M12PLVQ5 Description
Banner Engineering M12PLVQ5 is a photo-electric sensor from the M12 series designed in a retro-reflective mode with potentiometer adjustment. It features a visible red light and is housed in nickel-plated brass with a Polymethyl methacrylate (PMMA) lens. This sensor is shaped in an M12 cylindrical threaded/barrel form and comes pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and has a wavelength of 660 nm. The ambient air temperature for operation ranges from -20 to +60 °C. It offers a degree of protection rated at IP67, IP68, NEMA 5, and NEMA 6. The operating modes include Light-ON and Dark-ON, with a thread size of M12 and a sensing distance of 2.5m. It also features 1 x digital output (PNP transistor; complementary NO/NC) with a response time of 0.5ms / 0.0005 s.
