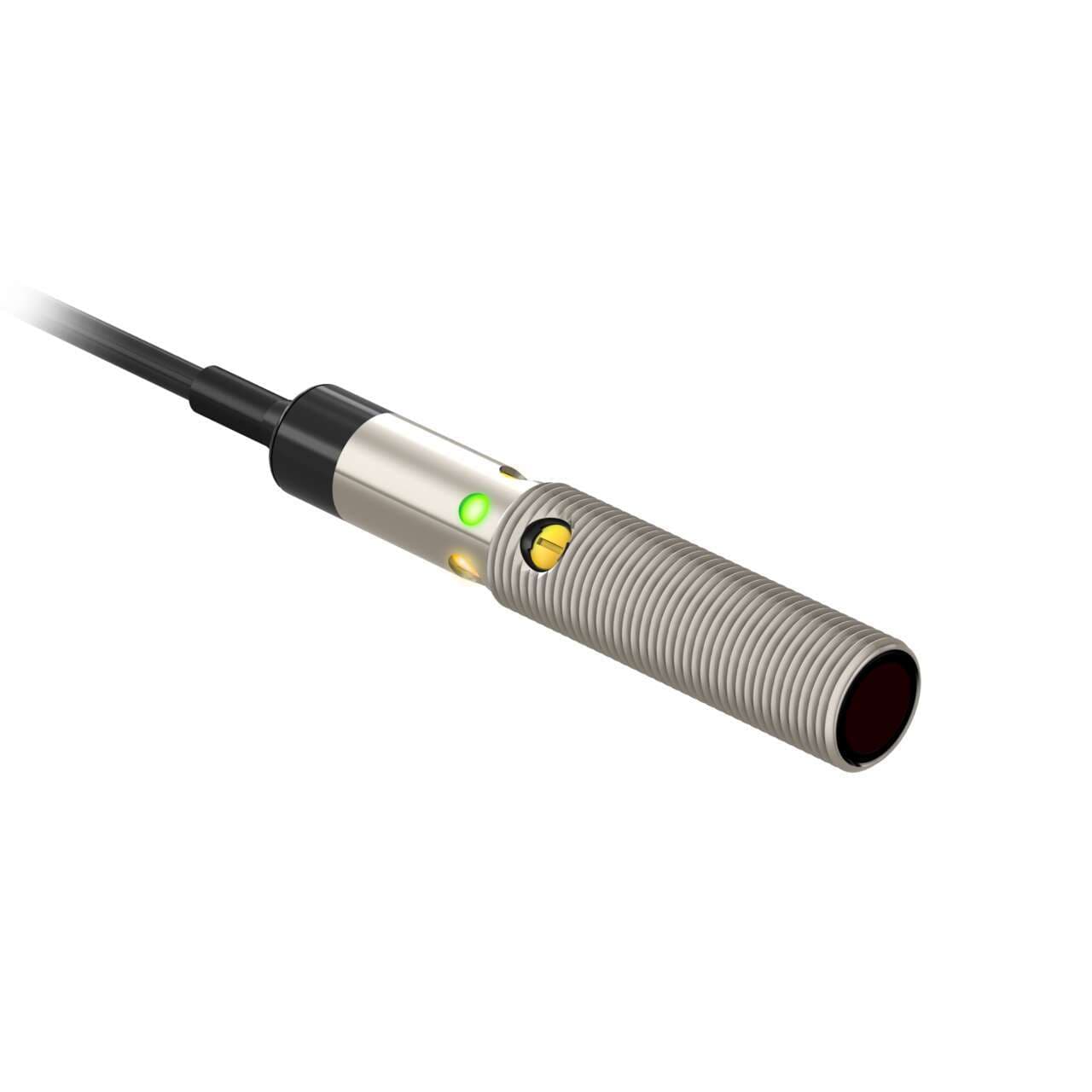

M12PDQ5 Banner Proximity Sensors
Part#:M12PDQ5
Manufacturer:Banner
Alt. Part#:78236
Product Lifecycle:Active
Get a quick Quote!
M12 Series: Diffuse (Red); Range: 400 mm; Input 10-30 V dc; Output: Complementary Solid-State PNP; 150 mm (6 in) M12 Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the M12PDQ5 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight18.14368 g
- Country Of OriginUS
- Product series / family name M12 barrel series
- Sensing distance 400mm
- Operating mode Light-ON Dark-ON
- Ambient air temperature for operation -20...+60 °C
- Primary brand Banner Engineering
- Design diffuse mode
- Thread size M12
- Digital outputs 1 x digital output (PNP transistor)
- Order code / Manufacturer SKU 78236
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Main function Sensor (Photo-electric)
- Functions Photo-electric sensor green LED (power ON) amber LED (light sensed) potentiometer adjustment
- Wavelength 660 nm
- Light Color Visible red
- Degree of protection IP67 IP68 NEMA 5 NEMA 6
- Sub-range name M12
- Shape Cylindrical threaded/barrel
- Response time 0.5ms / 0.0005 s
- Compliant with standard(s) CE
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
- Material Nickel-plated brass housing PMMA lns.
- Power DC
- Min Op. Temp. (°C) -20
- Number of Pins 4
- Feature: Washdown Rated Yes
- Sensing Mode (General) Proximity
- Connection Pigtail QD
- Sensing Beam Wavelength 660
- Lens Material PMMA
- IO Link No
- Cable Length (m) 0.15
- Outputs PNP
- Special Feature: Remote Teach No
- Adjustments Potentiometer
- Feature: Chemical Resistant No
- Housing Style Barrel
- Power Supply/Supply Voltage 10-30 V dc
- Repeatability (µs) 95
- Feature: Audible No
- Indicator LEDs
- Primary Housing Material Nickel-Plated Brass
- Max Op. Temp. (°C) 60
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Hazardous Area No
- Max Sensing Distance (mm) 400
- Operation Light/Dark Operate
- Delay at Power-up (ms) 100
- Feature: Timing (Hold/Delay) No
- Input/Output Discrete
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 5, 6 and 1200 PSI Washdown
- Feature: Encapsulated Yes
- Sensing Mode (Detailed) Diffuse
- Output response time (ms) 0.5
- IP Rating IP67, IP68
- Opposed Mode Emitter/Receiver N/A
- Sensing Beam Visible Red LED
- Quick Disconnect Type M12 (Euro)
- Special Feature: Water Detection No
- Barrel Diameter (mm) 12
- DeviceNet No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
M12PDQ5 Description
Banner Engineering M12PDQ5 is a photo-electric sensor from the M12 series designed with a diffuse mode potentiometer adjustment. It features a visible red light and is housed in nickel-plated brass with a Polymethyl methacrylate (PMMA) lens. This sensor is shaped in an M12 cylindrical threaded/barrel form and comes pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and has a wavelength of 660 nm. The M12PDQ5 can function in ambient air temperatures ranging from -20 to +60 °C and is rated with a degree of protection of IP67, IP68, NEMA 5, and NEMA 6. It offers Light-ON and Dark-ON operating modes, with a thread size of M12 and a sensing distance of 400mm. Additionally, it features 1 x digital output (PNP transistor; complementary NO/NC) and has a response time of 0.5ms / 0.0005 s.
Related documents M12PDQ5 Specs
