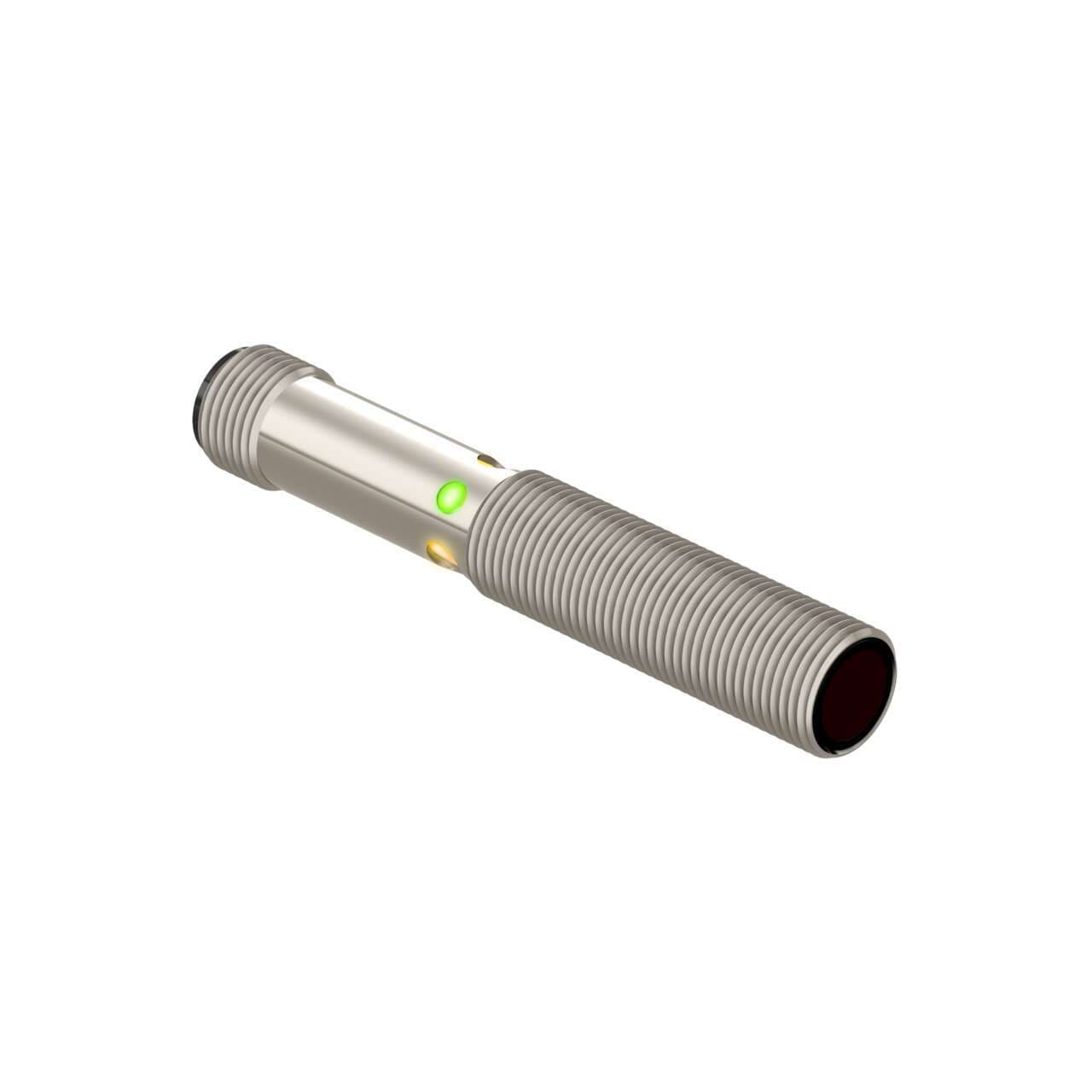

M12PFF25Q8 Banner Proximity Sensors
Part#:M12PFF25Q8
Manufacturer:Banner
Alt. Part#:77191
Product Lifecycle:Active
Get a quick Quote!
M12 Series: Fixed Field (Red); Range: 25 mm; Input 10-30 V dc; Output: Complementary Solid-State PNP; M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the M12PFF25Q8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight45.3592 g
- Country Of OriginUS
- Primary brand Banner Engineering
- Functions Fixed-field photo-electric sensor green LED (power ON) amber LED (light sensed) potentiometer adjustment
- Shape Cylindrical threaded/barrel
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Sub-range name M12
- Design background suppression system
- Thread size M12
- Material Nickel-plated brass housing PMMA lns.
- Product series / family name M12 barrel series
- Wavelength 680 nm
- Operating mode Light-ON Dark-ON
- Compliant with standard(s) CE
- Sensing distance 25mm
- Degree of protection IP67 IP68 NEMA 5 NEMA 6
- Main function Sensor (Photo-electric)
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Response time 0.5ms / 0.0005 s
- Light Color Visible red
- Digital outputs 1 x digital output (PNP transistor)
- Ambient air temperature for operation -20...+60 °C
- Order code / Manufacturer SKU 77191
- Delay at Power-up (ms) 100
- Feature: Audible No
- Quick Disconnect Type M12 (Euro)
- Input/Output Discrete
- Min Op. Temp. (°C) -20
- Max Op. Relative Humidity [%] 90% @ 50°C
- Primary Housing Material Nickel-Plated Brass
- Max Op. Temp. (°C) 60
- Lens Material PMMA
- Outputs PNP
- IP Rating IP67, IP68
- Feature: Washdown Rated Yes
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Sensing Beam Visible Red LED
- Special Feature: Water Detection No
- Max Sensing Distance (mm) 25
- Operation Light/Dark Operate
- Repeatability (µs) 95
- Feature: Encapsulated Yes
- Power DC
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Opposed Mode Emitter/Receiver N/A
- Housing Style Barrel
- Special Feature: Intrinsically Safe No
- Number of Pins 4
- Barrel Diameter (mm) 12
- IO Link No
- Connection Integral QD
- NEMA Rating NEMA 5, 6 and 1200 PSI Washdown
- Feature: Timing (Hold/Delay) No
- Sensing Mode (General) Proximity
- Output response time (ms) 0.5
- Sensing Beam Wavelength 680
- Indicator LEDs
- DeviceNet No
- Adjustments N/A
- Feature: Hazardous Area No
- Feature: Chemical Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
M12PFF25Q8 Description
Banner Engineering M12PFF25Q8 is a fixed-field photo-electric sensor within the M12 series, featuring a background suppression system with potentiometer adjustment. It emits visible red light from a nickel-plated brass housing and a Polymethyl methacrylate (PMMA) lens. This sensor is designed in an M12 cylindrical threaded/barrel shape and comes pre-equipped with a 4-pin Euro-style M12 connector. It operates on a supply voltage range of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and has a wavelength of 680 nm. The M12PFF25Q8 can function within an ambient air temperature range of -20 to +60 °C and offers a degree of protection rated at IP67, IP68, NEMA 5, and NEMA 6. It supports Light-ON and Dark-ON operating modes, has an M12 thread size, a sensing distance of 25mm, and includes 1 x digital output (PNP transistor; complementary NO/NC) with a response time of 0.5ms / 0.0005 s.
