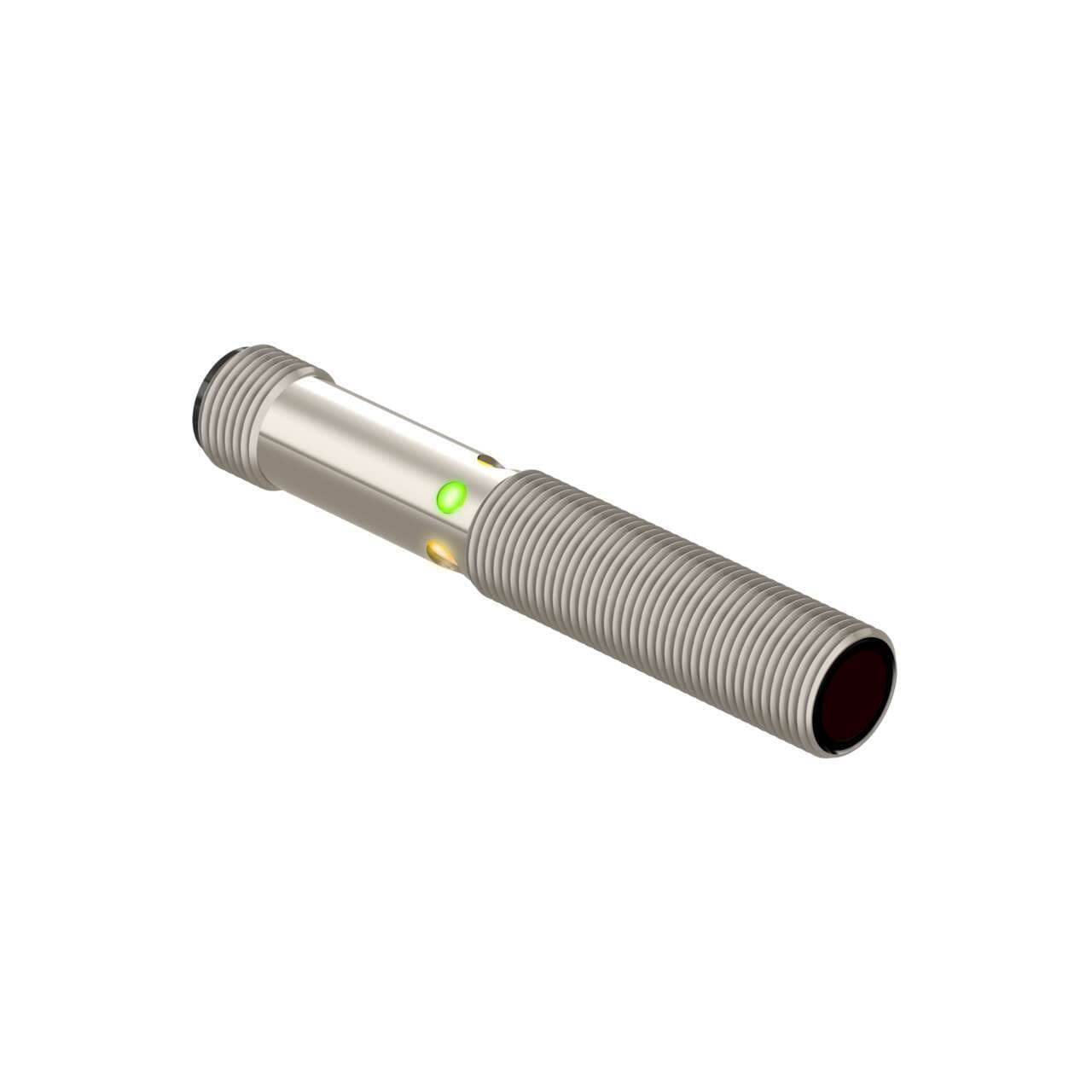

M12PFF50Q8 Banner Proximity Sensors
Part#:M12PFF50Q8
Manufacturer:Banner
Alt. Part#:77195
Product Lifecycle:Active
Get a quick Quote!
M12 Series: Fixed Field (Red); Range: 50 mm; Input 10-30 V dc; Output: Complementary Solid-State PNP; M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the M12PFF50Q8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight45.3592 g
- Country Of OriginUS
- Product series / family name M12 barrel series
- Design background suppression system
- Main function Sensor (Photo-electric)
- Sensing distance 50mm
- Light Color Visible red
- Degree of protection IP67 IP68 NEMA 5 NEMA 6
- Primary brand Banner Engineering
- Functions Fixed-field photo-electric sensor green LED (power ON) amber LED (light sensed) potentiometer adjustment
- Thread size M12
- Digital outputs 1 x digital output (PNP transistor)
- Ambient air temperature for operation -20...+60 °C
- Sub-range name M12
- Shape Cylindrical threaded/barrel
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Order code / Manufacturer SKU 77195
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Operating mode Light-ON Dark-ON
- Wavelength 680 nm
- Response time 0.5ms / 0.0005 s
- Compliant with standard(s) CE
- Material Nickel-plated brass housing PMMA lns.
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Indicator LEDs
- Power DC
- Operation Light/Dark Operate
- IP Rating IP67, IP68
- Feature: Timing (Hold/Delay) No
- Housing Style Barrel
- Max Op. Temp. (°C) 60
- NEMA Rating NEMA 5, 6 and 1200 PSI Washdown
- DeviceNet No
- Sensing Mode (General) Proximity
- Min Op. Temp. (°C) -20
- Number of Pins 4
- Feature: Encapsulated Yes
- Sensing Beam Visible Red LED
- Connection Integral QD
- Sensing Beam Wavelength 680
- Opposed Mode Emitter/Receiver N/A
- Quick Disconnect Type M12 (Euro)
- Repeatability (µs) 95
- Feature: Washdown Rated Yes
- Primary Housing Material Nickel-Plated Brass
- Special Feature: Intrinsically Safe No
- Barrel Diameter (mm) 12
- Outputs PNP
- Output response time (ms) 0.5
- Adjustments N/A
- Feature: Audible No
- Max Sensing Distance (mm) 50
- Delay at Power-up (ms) 100
- Lens Material PMMA
- Feature: Chemical Resistant No
- Input/Output Discrete
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 90% @ 50°C
- IO Link No
- Feature: Hazardous Area No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
M12PFF50Q8 Description
Banner Engineering M12PFF50Q8 is a fixed-field photo-electric sensor within the M12 series, featuring a background suppression system with potentiometer adjustment. It emits visible red light from a nickel-plated brass housing and a Polymethyl methacrylate (PMMA) lens. This sensor is designed in an M12 cylindrical threaded/barrel shape and comes pre-equipped with a 4-pin Euro-style M12 connector. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc, and has a wavelength of 680 nm. The M12PFF50Q8 can function in ambient air temperatures ranging from -20 to +60 °C and is rated with a degree of protection of IP67, IP68, NEMA 5, and NEMA 6. It offers Light-ON and Dark-ON operating modes, has an M12 thread size, and provides a sensing distance of 50mm. Additionally, it features 1 x digital output (PNP transistor; complementary NO/NC) with a response time of 0.5ms / 0.0005 s.
Related documents M12PFF50Q8 Specs
