K90TLRBYPQ Banner Electronic Components
Part#:K90TLRBYPQ
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

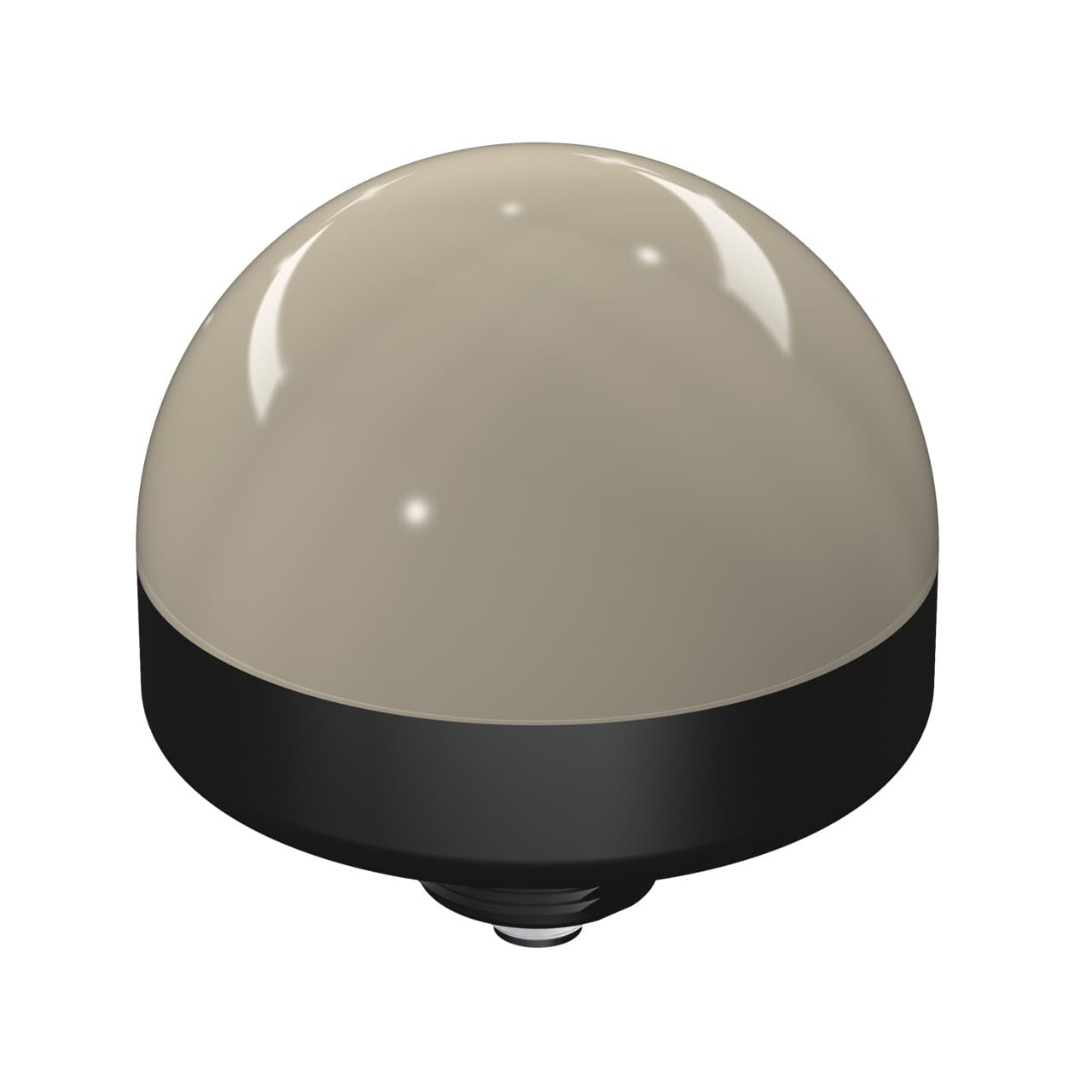

Banner Engineering K90TLRBYPQ is a pilot light from the EZ-LIGHT series designed to serve as an LED pilot light indicator. This part features a design that alternates between colors when multiple inputs are active, displaying a 5-color W/B/G/Y/R color pattern LED illumination. It has a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. The K90TLRBYPQ is pre-equipped with an 8-pin M12 Euro-style QD connector for connectivity. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. For mounting, it offers flexibility with surface, base, or pole flush options, fitting a 30mm hole with an M30 thread. The dome diameter measures 90mm or approximately 3-1/2 inches. It is designed to operate within an ambient air temperature range of -40°C to +50°C and boasts a degree of protection rated at IP67, NEMA 4X, and NEMA 13. The current consumption is 475mA, and it supports 5 x digital inputs (12-30Vdc; NPN) for color control.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K90TLRBYPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Primary Housing Material Polycarbonate
- Lumens Color 3 35.0
- Animation Option 1 Solid On
- Wireless No
- Min Op. Temperature (°C) -40
- Housing Style Base Mount - Dome Window
- Color Option 2 Blue
- Wire Selectable Function Multi-Function
- Max Op. Temperature (°C) 50
- Modbus RTU No
- Cable Length (m) 2
- Color Technology Standard LED
- Color Option 3 Yellow
- Max Input Response Time (ms) 150
- Feature: Chemical Resistant No
- Mounting Thread M30 x 1.5
- Connection Integral QD
- Max Current Color (mA) 475
- Environmental Rating IP67
- Multi-Color Device Single Color On - Alternating
- Color Option 1 Red
- Color 2 - Wavelength/Color Temp/Coordinates 470 nm
- Physical Dimensions (LxWxH or DxH mm) 90.0 x 87.0
- IO Link No
- Power Source DC
- Product Size (mm) 90
- Lumens Color 1 65.0
- Input Type PNP
- Feature: Audible No
- Pro-Editor Compatible (Discrete) No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Indication Yes
- Lumens Color 2 55.0
- Supply Voltage 12-30 V dc
- Power DC
- Color 1 - Wavelength/Color Temp/Coordinates 625 nm
- Number of Input Pins/Conductors 5
- Feature: Hazardous Area No
- Number of Colors / Segments 3
- Quick Disconnect Type M12 (Euro)
- Color 3 - Wavelength/Color Temp/Coordinates 590 nm
- NEMA Type and UL Type Rating NEMA 4X, 13
- Feature: Quick Disconnect Yes
- Primary Window Material Polycarbonate Diffused
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents K90TLRBYPQ Specs
