K90TLGRY6PQ Banner Signal Beacons
Part#:K90TLGRY6PQ
Manufacturer:Banner
Alt. Part#:96948
Product Lifecycle:Active
Get a quick Quote!
K90T Series EZ-LIGHT; 3-Color Indicator; I/O Compatible; Voltage: 12-30 V dc; Environmental Rating: IP67; Input: PNP; Colors: Green Red Yellow; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K90TLGRY6PQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight217.72416 g
- Country Of OriginUS
- Indication Yes
- Lumens Color 1 150
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Physical Dimensions (LxWxH or DxH mm) 90.0 x 87.0
- Feature: Chemical Resistant No
- Housing Style Base Mount - Dome Window
- Mounting Thread M30 x 1.5
- Power Source DC
- Power DC
- Number of Colors / Segments 3
- Input Type PNP
- IO Link No
- Environmental Rating IP67
- Feature: Audible No
- Max Op. Temperature (°C) 50
- Feature: Quick Disconnect Yes
- NEMA Type and UL Type Rating NEMA 4X, 13
- Modbus RTU No
- Min Op. Temperature (°C) -40
- Pro-Editor Compatible (Discrete) No
- Feature: Hazardous Area No
- Multi-Color Device Single Color On - Alternating
- Primary Window Material Polycarbonate Diffused
- Wireless No
- Max Current Color (mA) 475
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Quick Disconnect Type M12 (Euro)
- Color 3 - Wavelength/Color Temp/Coordinates 590 nm
- Color Option 1 Green
- Animation Option 1 Solid On
- Wire Selectable Function Multi-Function
- Product Size (mm) 90
- Color Option 2 Red
- Color Option 3 Yellow
- Primary Housing Material Polycarbonate
- Supply Voltage 12-30 V dc
- Connection Integral QD
- Number of Input Pins/Conductors 5
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Lumens Color 2 65.0
- Color Technology Standard LED
- Lumens Color 3 35.0
- Max Input Response Time (ms) 150
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K90TLGRY6PQ Description

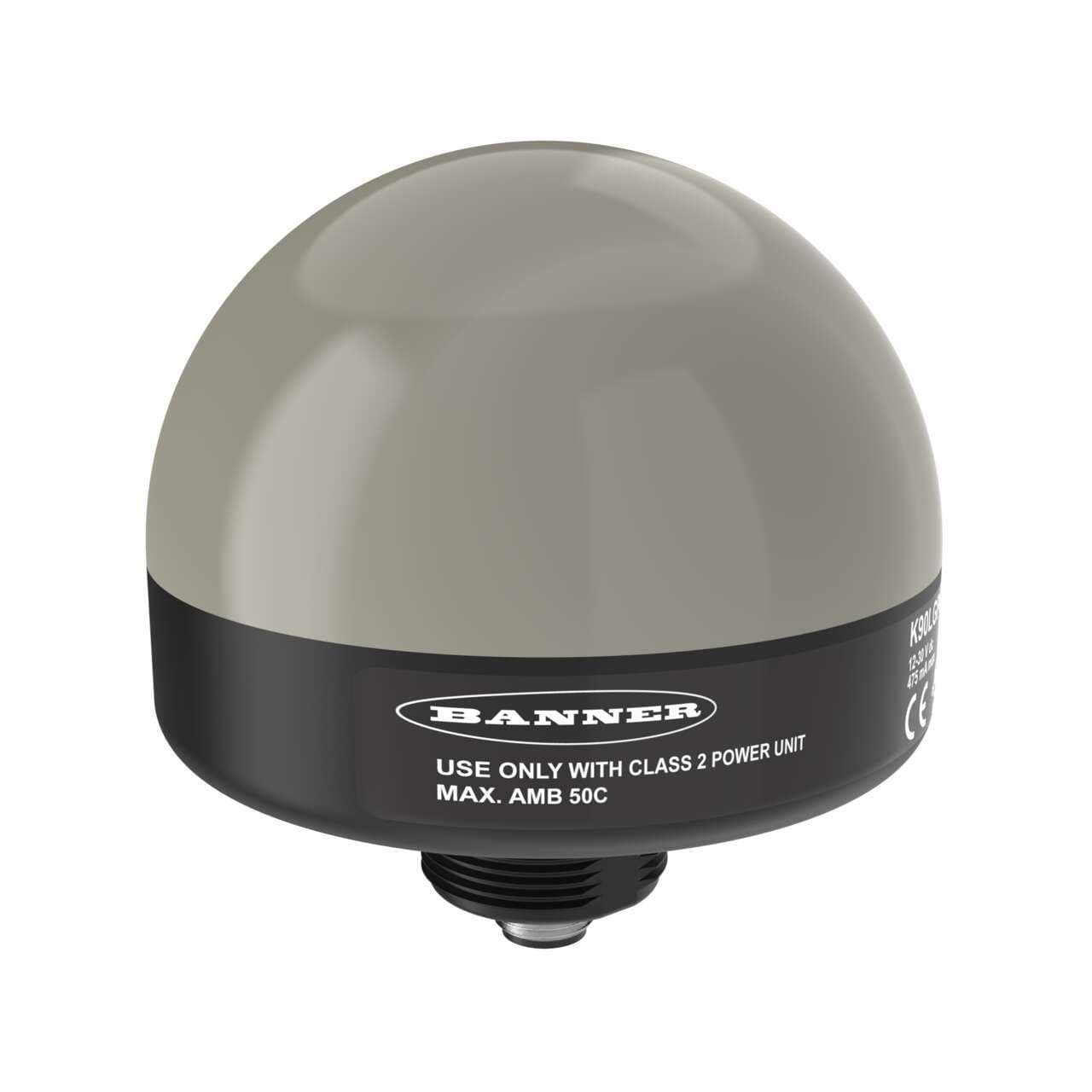

Banner Engineering K90TLGRY6PQ is a pilot light from the EZ-LIGHT series designed to serve as an LED pilot light indicator. This part features a 2-color G/R color pattern LED illumination that alternates between colors when multiple inputs are active. It has a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. The connection is facilitated by a pre-wired 2m / 6.5ft 5-wire cable terminated with bare end flying leads. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. The K90TLGRY6PQ offers versatile mounting options including surface, base, or pole flush with a 30mm hole and M30 thread. The dome diameter measures 90mm / 3-1/2". It is designed to operate within an ambient air temperature range of -40°C to +50°C and offers a degree of protection rated at IP67, NEMA 4X, and NEMA 13. The current consumption is 475mA, and it supports 2 x digital inputs (12-30Vdc; PNP) for color control.
