K90TFDLWBGYRNQ Banner Electronic Components
Part#:K90TFDLWBGYRNQ
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

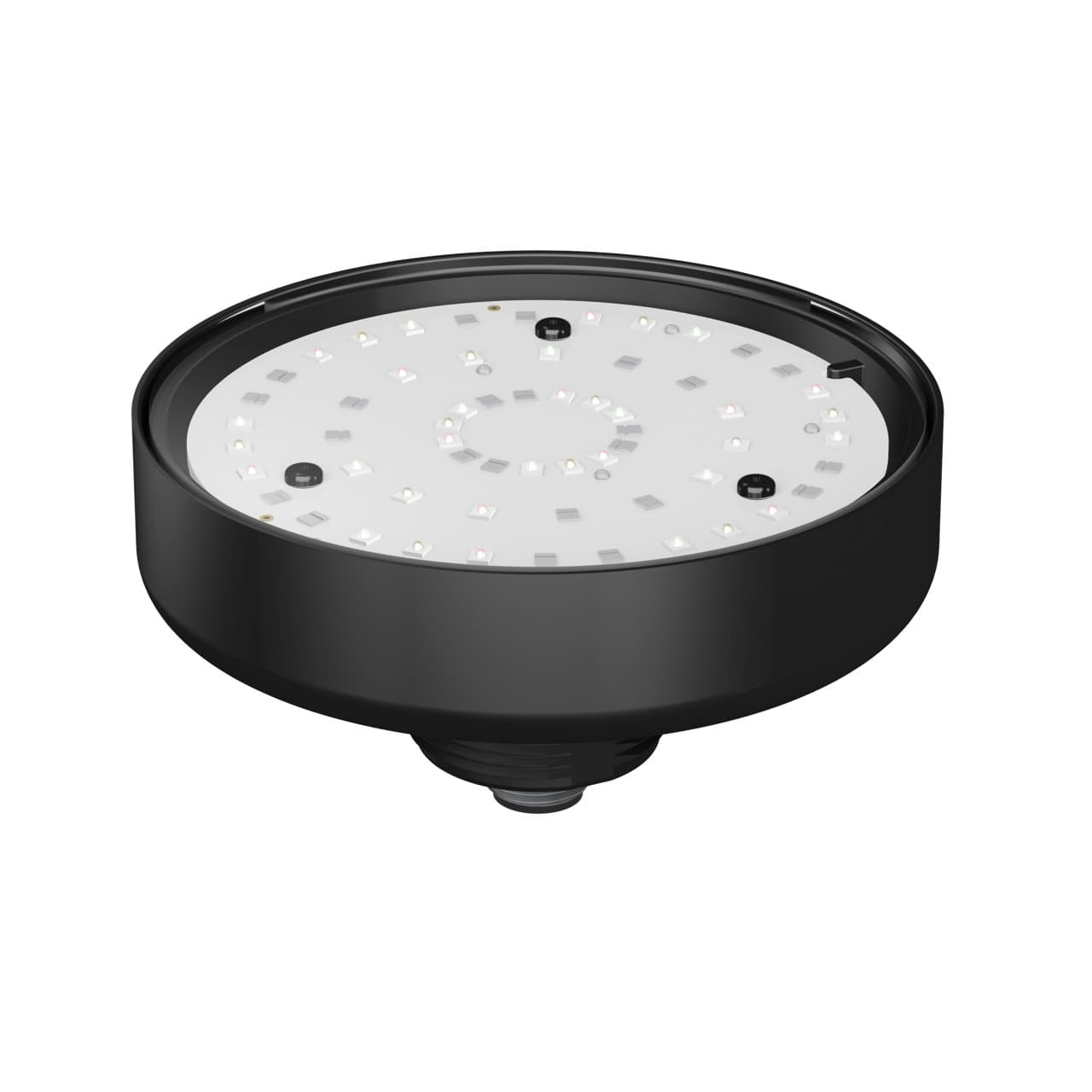

K90TF Series EZ-LIGHT; 5-Color Daylight Visible Indicator, Voltage: 12-30 V dc; Environmental Rating: IP67, Input: NPN; Colors: White Blue Green Yellow Red, Euro 8-pin Quick-Disconnect
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K90TFDLWBGYRNQ Banner price in the box on the right side or send a quick quote.
Product Details
- Product Size (mm) 90
- Primary Housing Material Polycarbonate
- Color Option 5 Red
- Color 5 - Wavelength/Color Temp/Coordinates 625 nm
- Cable Length (m) 0.15
- Color Technology Standard LED
- Lumens Color 1 235
- Lumens Color 4 43.0
- Wire Selectable Function Multi-Function
- Feature: Hazardous Area No
- Feature: Audible No
- Wireless No
- Mounting Thread M30 x 1.5
- Connection Integral QD
- Color Option 4 Yellow
- Max Current Color (mA) 475
- Power Source DC
- Color Option 2 Blue
- Color 2 - Wavelength/Color Temp/Coordinates 470 nm
- Environmental Rating IP67
- Feature: Quick Disconnect Yes
- Indication Yes
- Color Option 1 White
- Lumens Color 2 55.0
- Physical Dimensions (LxWxH or DxH mm) 90.0 x 42.0
- Feature: Chemical Resistant No
- Power DC
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Color 3 - Wavelength/Color Temp/Coordinates 525 nm
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Quick Disconnect Type M12 (Euro)
- Lumens Color 3 175
- Number of Input Pins/Conductors 8
- Number of Colors / Segments 5
- Animation Option 1 Solid On
- Lumens Color 5 83.0
- Max Op. Temperature (°C) 50
- Housing Style Base Mount - Flat Window
- Color Option 3 Green
- Color 4 - Wavelength/Color Temp/Coordinates 590 nm
- Input Type NPN
- Multi-Color Device Single Color On - Alternating
- IO Link No
- Max Input Response Time (ms) 150
- Indication Intensity High Brightness & Daylight Visible
- NEMA Type and UL Type Rating NEMA 4X, 13
- Min Op. Temperature (°C) -40
- Modbus RTU No
- Primary Window Material Polycarbonate Clear
- Supply Voltage 12-30 V dc
- Pro-Editor Compatible (Discrete) No
