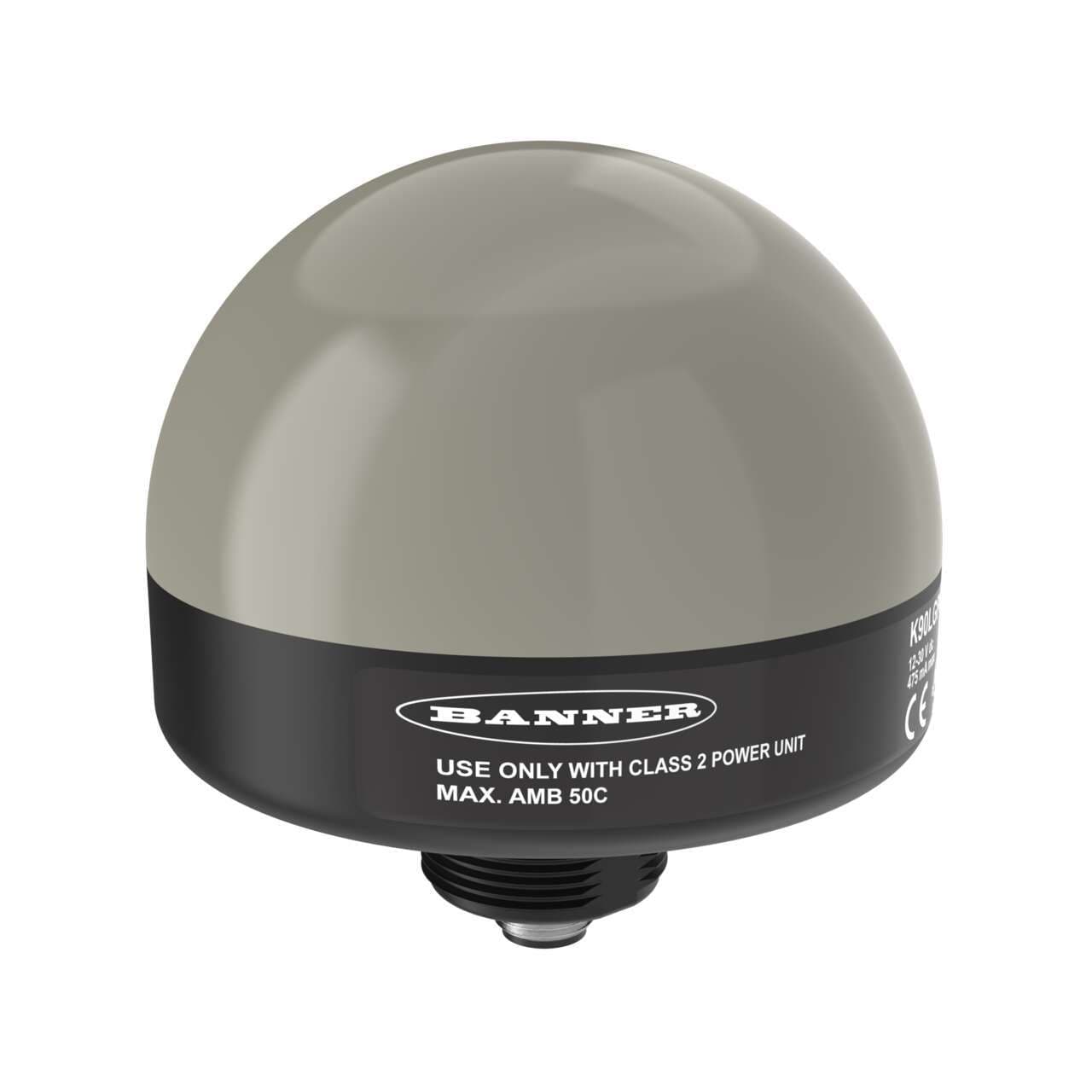

K90TLBGRYPQ Banner Signal Beacons
Part#:K90TLBGRYPQ
Manufacturer:Banner
Alt. Part#:97387
Product Lifecycle:Active
Get a quick Quote!
K90T Series EZ-LIGHT; 4-Color Indicator; Voltage: 12-30 V dc; Environmental Rating: IP67; Input: PNP; Colors: Blue Green Red Yellow; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K90TLBGRYPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight217.72416 g
- Country Of OriginMX
- Housing Style Base Mount - Dome Window
- Color Technology Standard LED
- Lumens Color 4 35.0
- Max Input Response Time (ms) 150
- IO Link No
- Primary Window Material Polycarbonate Diffused
- Primary Housing Material Polycarbonate
- Color 1 - Wavelength/Color Temp/Coordinates 470 nm
- Color Option 3 Red
- Supply Voltage 12-30 V dc
- Power DC
- Product Size (mm) 90
- Color 4 - Wavelength/Color Temp/Coordinates 590 nm
- Physical Dimensions (LxWxH or DxH mm) 90.0 x 87.0
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 1 55.0
- Color 2 - Wavelength/Color Temp/Coordinates 525 nm
- Wire Selectable Function Multi-Function
- Number of Colors / Segments 4
- Color Option 2 Green
- Max Current Color (mA) 475
- Max Op. Temperature (°C) 50
- Cable Length (m) 2
- Connection Integral QD
- Lumens Color 3 65.0
- NEMA Type and UL Type Rating NEMA 4X, 13
- Wireless No
- Mounting Thread M30 x 1.5
- Color Option 1 Blue
- Lumens Color 2 150
- Number of Input Pins/Conductors 5
- Feature: Hazardous Area No
- Indication Yes
- Quick Disconnect Type M12 (Euro)
- Color 3 - Wavelength/Color Temp/Coordinates 625 nm
- Input Type PNP
- Power Source DC
- Animation Option 1 Solid On
- Color Option 4 Yellow
- Environmental Rating IP67
- Min Op. Temperature (°C) -40
- Feature: Audible No
- Multi-Color Device Single Color On - Alternating
- Modbus RTU No
- Feature: Chemical Resistant No
- Pro-Editor Compatible (Discrete) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K90TLBGRYPQ Description
Banner Engineering K90TLBGRYPQ, part of the EZ-LIGHT series, is a flat LED pilot light indicator designed for daylight visibility with a unique feature that allows it to alternate between colors when multiple inputs are active, showcasing a 5-color W/B/G/Y/R color pattern LED illumination. It comes in a black housing with a round flat window made from clear Polycarbonate (PC), and a base of the same material. This part is pre-equipped with an 8-pin M12 Euro-style QD connector for connectivity. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. The K90TLBGRYPQ offers versatile mounting options including surface, base, or pole flush with a 30mm hole and an M30 thread, and features a 90mm diameter light area. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C. This part is protected to IP67, NEMA 4X, and NEMA 13 standards, ensuring durability in various environments. It has a current consumption of 475mA and includes 5 x digital inputs (12-30Vdc; PNP) for color control.
